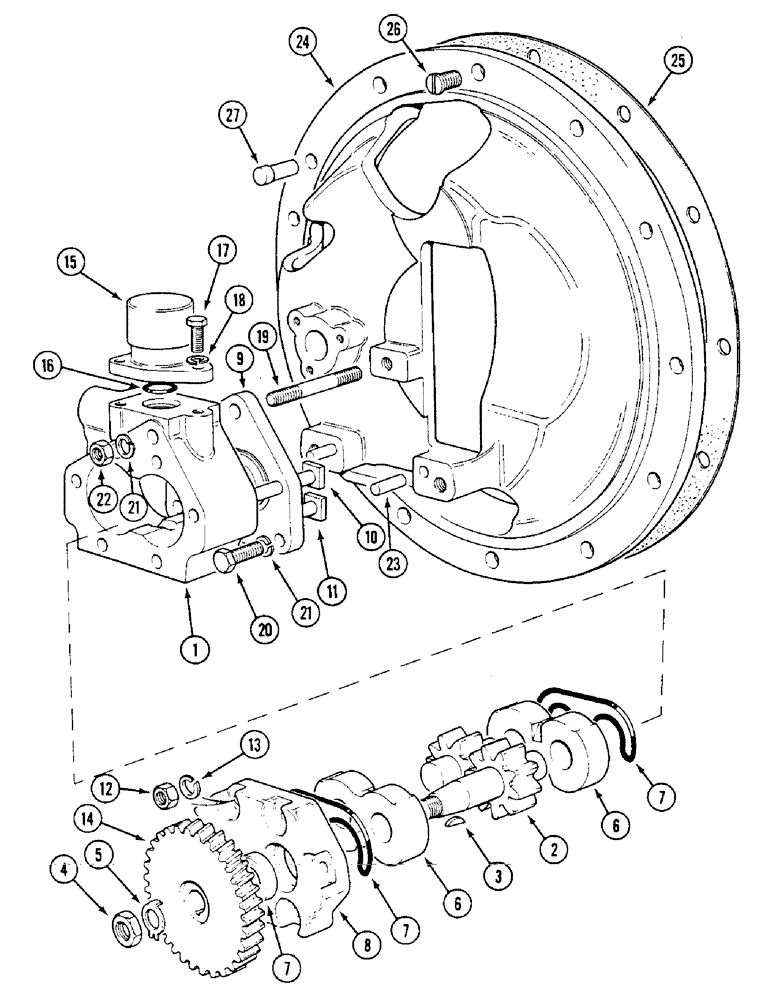

Запчасти Case IH 1294 (8-214) - HYDRAULIC PUMP (08) - HYDRAULICS

1

K962635

PUMP

ASSEMBLY - hydraulic, Includes: Ref. 2 - 13

1шт.

K962635R

REMAN-HYD PUMP

1294 (1/83-12/85)

1шт.

K962635C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

K962128

GEAR

ROTORS - pump

1шт.

3

K19604

KEY

- Woodruff No. 405

1шт.

4

425-158

JAM NUT,Jam, 1/2"-20, G5

1шт.

5

K626382

WASHER

- tab, gear, 1/2 inch

1шт.

6

K962125

BEARING

- pump

2шт.

7

K962136

GASKET KIT

KIT - oil seal and O-rings

1шт.

8

K962132

COVER

PLATE - end

1шт.

9

K962129

FLANGE

- pump

1шт.

10

K962130

BOLT

- 3/8 inch UNF

4шт.

11

K962131

BOLT

- dowel, 3/8 inch UNF

2шт.

12

K616982

NUT

- 3/8 inch UNF

6шт.

13

K626344

WASHER, LOCK

WASHER - lock, 3/8 inch

6шт.

14

K927097

GEAR

- driven, 36 teeth

1шт.

15

K919372

VALVE

ASSEMBLY - relief

1шт.

16

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

17

K19222

BOLT

- 5/16 BSF x 1 inch

3шт.

18

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

19

K608221

STUD

- 3/8 UNC x 3-11/16 inch

1шт.

20

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

280136

NUT,3/8"-16, G8

1шт.

23

K24853

PIN

DOWEL - locating, 1/4 x 11/16 inch

2шт.

24

K905667

SUPPORT

PLATE - support

1шт.

25

K205398

GASKET

- plate to rear axle housing and PTO unit

2шт.

26

K605157

SCREW

- 7/16 UNC x 1-1/8 inch

1шт.

27

K24827

PIN

DOWEL - 7/16 x 1-3/4 inch

1шт.
