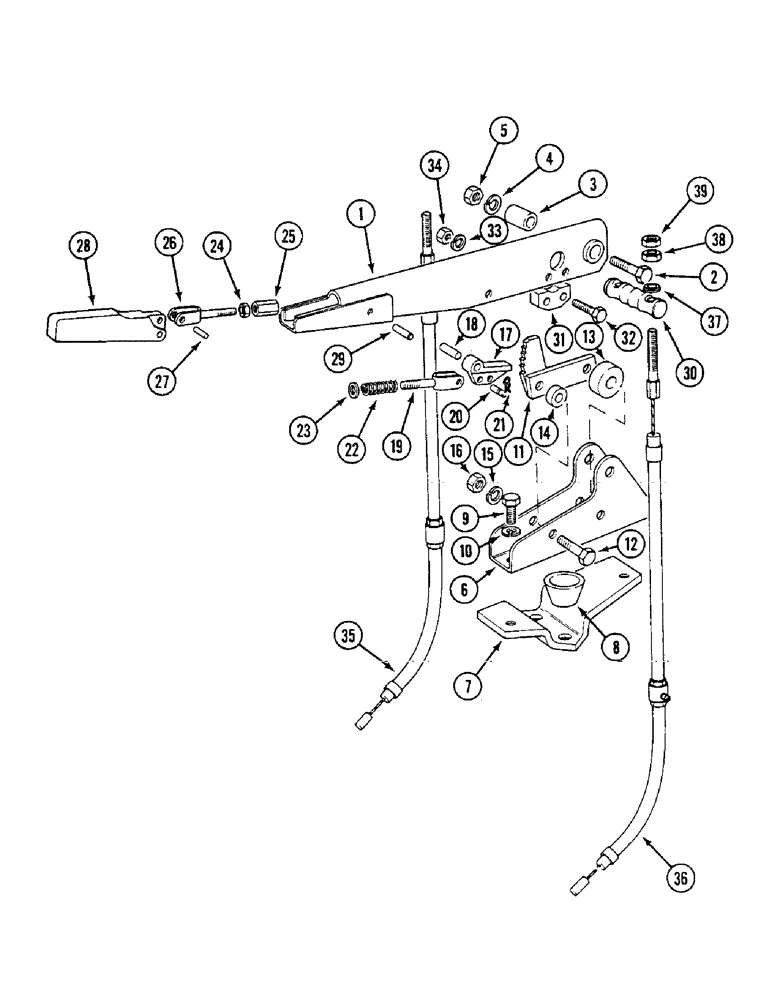

Запчасти Case IH 1294 (7-210) - HAND BRAKE LEVER, TRACTORS WITH CAB (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K955643
LEVER
- hand
1шт.
2
113-2256
SCREW
BOLT - 3/8 UNC x 1-7/8 inch
1шт.
3
K627052
BUSHING
SPACER - lever pivot
1шт.
4
492-11038
LOCK WASHER,3/8"
1шт.
5
425-106
NUT,3/8"-16, Cl 5
1шт.
6
K955244
BRACKET
- hand lever support
1шт.
7
K949506
SHIM
PLATE - retaining
1шт.
8
K949507
SEAL
- rubber
2шт.
9
K602845
BOLT,Hex Hd, 5/16"-18 x 3/4"
BOLT - 5/16 UNC x 3/4 inch
2шт.
10
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
2шт.
11
K307481
RATCHET
-
2шт.
12
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
- hex, 5/16 NC x 1-3/4 inch
2шт.
13
K627109
BUSHING
SPACER - 1-3/8 inch (35 mm)
1шт.
14
K627110
BUSHING
SPACER - 3/4 inch (19 mm)
1шт.
15
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
2шт.
16
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
2шт.
17
K307484
PAWL
-
1шт.
18
138-132
LOCK PIN,1/4" x 7/8", Slotted
PIN, 1/4" x 7/8", Slotted
1шт.
19
K950033
ROD
- pull
1шт.
20
K949499
PIN
- grooved 3/16 x 1/2 inch
1шт.
21
K621572
RING, SNAP
CLIP - spring
1шт.
22
K625099
SPRING
- return
1шт.
23
K626310
WASHER
- lock 3/16 inch, 3/16 inch (5 mm)
1шт.
25
K617297
NUT
SLEEVE - adjusting, No., 10 UNF
1шт.
26
K950033
ROD
- pull
1шт.
27
K949498
PIN
- plain
1шт.
28
K950026
LEVER
- release
1шт.
29
138-2067
PIN,3/16" x 1", Coiled
1шт.
30
K949501
BAR
- balance
1шт.
31
K949502
SUPPORT
BLOCK - support
1шт.
32
K966404
SCREW
BOLT - 1/4 UNC X 1-1/8 inch
2шт.
33
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
34
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
35
REF
INSTRUCTION
CABLE - inner and outer, right-hand, See Figure 7-208
1шт.
36
REF
INSTRUCTION
CABLE - inner and outer, left-hand, See Figure 7-208
1шт.
37
K949503
WASHER
- spherical, 5/16 inch
2шт.
38
K617285
SPECIAL NUT
- 5/16 inch UNF
2шт.
39
425-155
JAM NUT,Jam, 5/16"-24, G5
- hex, jam, 5/16 inch NF
2шт.
