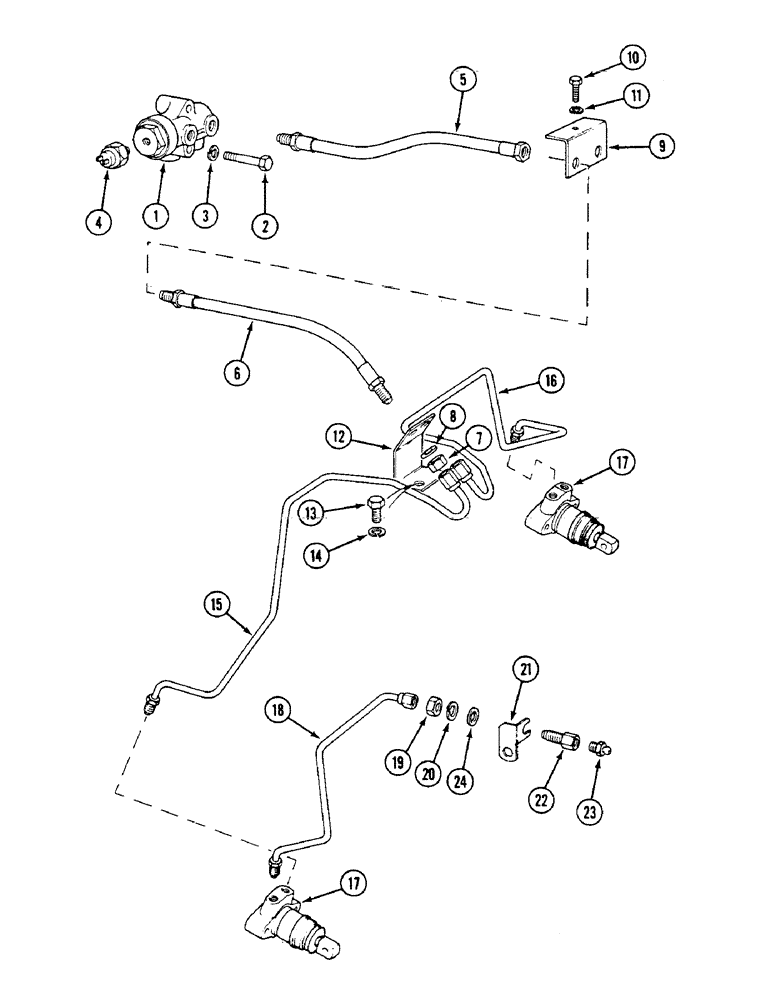

Запчасти Case IH 1294 (7-204) - BRAKE TUBES AND SLAVE CYLINDERS, TRACTORS WITH CAB (07) - BRAKES

1

K957107

VALVE

- brake balance

1шт.

2

K650635

BOLT

- M6 x 55 mm

2шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

4

K951976

LIGHT SWITCH

SWITCH - stop lamps

1шт.

5

K305952

BRAKE

TUBE - balance, Serial Range: valve-flexible

2шт.

6

K306308

PIPE

TUBE - flexible

2шт.

7

K652100

LOCK NUT

- lock, M12

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

9

K305953

BRACKET

- flexible tube

1шт.

10

K650628

BOLT

- M6 x 20 mm

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

K951919

BRACKET

- tube

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

K203294

PIPE

TUBE - slave cylinder, left-hand

1шт.

16

K203293

PIPE

TUBE - slave cylinder, right-hand

1шт.

17

K203416

BRAKE

CYLINDER - slave

2шт.

18

K302469

PIPE

TUBE - air removal, left-hand

1шт.

18

K302470

PIPE

TUBE - air removal, right-hand

1шт.

19

K652100

LOCK NUT

- lock, M12

2шт.

20

K651850

SPRING

WASHER - lock, 12 mm

2шт.

21

K204331

BRACKET

- left-hand tube

1шт.

21

K204332

BRACKET

- right-hand tube

1шт.

22

K302501

ADAPTER

ADAPTOR - M12

2шт.

23

K964534

SCREW,M12 x 1

- air removal

2шт.

24

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.
