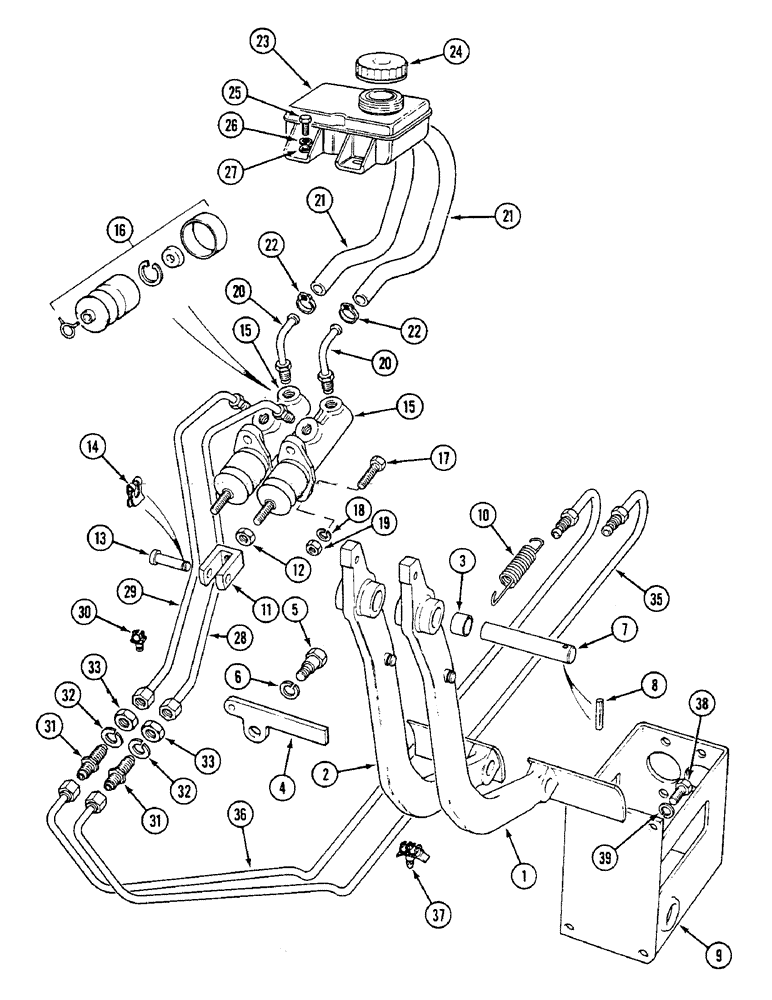

Запчасти Case IH 1294 (7-202) - BRAKE PEDALS AND MASTER CYLINDERS, TRACTORS WITH CAB (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K307854
PEDAL
- brake, left-hand, Includes: Ref. 3
1шт.
2
K307855
PEDAL
- brake, right-hand, Includes: Ref. 3
1шт.
3
K655525
BUSHING
- pedal
2шт.
4
K948974
LATCH
PLATE - locating, pedals
1шт.
5
K600500
SCREW
BOLT - special
1шт.
6
K626700
WASHER
- lock
1шт.
7
K303546
SHAFT
PIN - pivot
1шт.
8
K690706
PIN
- roll, 6 x 30 mm
1шт.
9
K303164
MOUNTING PARTS
BRACKET - pedal
1шт.
10
K303540
SPRING
- return
2шт.
11
K622212
FORK
END - rod, 5/16 inch UNF
2шт.
13
K625930
PIN
- clevis
2шт.
14
K625040
CLIP
- spring
2шт.
15
K950544
CYLINDER,36.32mm Stroke
ASSEMBLY - master (Mineral oil), Includes: Ref. 16
2шт.
16
K964572
SEAL KIT
SEAL KIT - master cylinder
1шт.
17
413-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5
- hex, 5/16 NC x 1-1/8 inch
4шт.
18
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
4шт.
19
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
4шт.
20
K302099
PIPE
TUBE - master cylinder inlet
2шт.
21
K203032
HOSE
- reservoir to master cylinder
2шт.
22
L100659
CLIP
- self adhesive
2шт.
23
K301441
RESERVOIR
- brake
1шт.
24
K301443
CAP
- filler
1шт.
25
K652474
BOLT
- M6 x 12 mm
2шт.
26
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
2шт.
27
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
28
K301270
PIPE
TUBE - left-hand, master, Serial Range: cylinder-union
1шт.
29
K301269
PIPE
TUBE - right-hand, master, Serial Range: cylinder-union
1шт.
30
K625008
CLIP
- tube
2шт.
31
K301280
FITTING
UNION - connecting
2шт.
32
K626686
WASHER
- flat, 1/2 inch (13 mm)
2шт.
33
K652100
LOCK NUT
- lock, M12
2шт.
35
K308225
PIPE,6 mm DIA.
TUBE - union to balance valve, left-hand
2шт.
36
K308226
PIPE,6 mm DIA.
TUBE - union to balance valve, right-hand
1шт.
37
K625024
CLIP
- brake tube
2шт.
38
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 16 mm
4шт.
39
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
Выбрано товаров: 38
