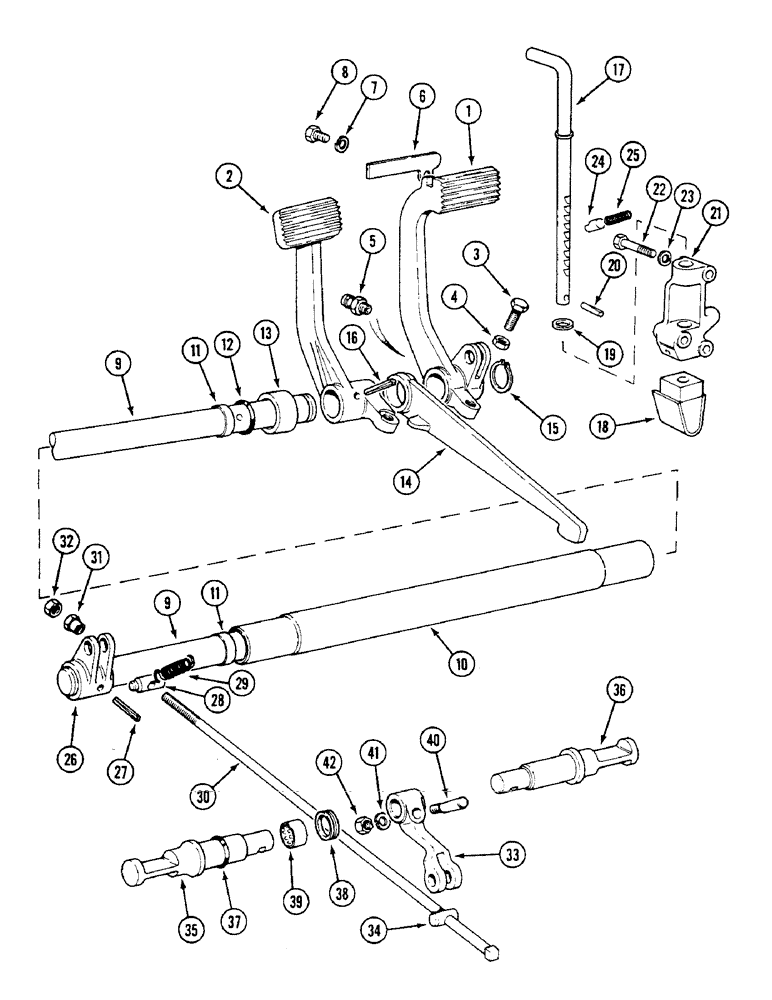

Запчасти Case IH 1294 (7-198) - MECHANICAL BRAKING SYSTEM, TRACTORS WITHOUT CAB (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
K200756
BRAKE
PEDAL - brake, right-hand
1шт.
2
K200755
BRAKE
PEDAL - brake, left-hand
1шт.
3
K603044
SCREW
BOLT - 7/16 UNC x 1-3/4 inch
1шт.
4
425-147
JAM NUT,Jam, 7/16"-14, G5
- hex, jam, 7/16 inch NC
1шт.
5
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
2шт.
6
K948974
LATCH
PLATE - locating, pedals
1шт.
7
K626700
WASHER
- lock
1шт.
8
K600500
SCREW
BOLT - special
1шт.
9
K200763
BRAKE
SHAFT - cross
1шт.
10
K200764
SHAFT
TUBE - cross shaft
1шт.
11
K947343
BUSHING
- pedal
1шт.
12
238-5328
O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro
2шт.
13
K607525
NUT
- adjusting, 3/8 inch UNC
1шт.
14
K307875
LEVER
- operating, hand brake
1шт.
15
K11538
RING, SNAP
RING - snap, 1-1/2 inch (38 mm) external
1шт.
16
135-103
PIN, GROOVED
PIN - 3/8 x 2-1/4 inch
1шт.
17
K307902
LEVER
- hand
1шт.
18
K949260
FORK
STIRRUP - lever
1шт.
19
K626736
WASHER
- 5/8 inch (16 mm) special
1шт.
20
K623892
PIN
- roll, 5/16 x 1-1/2 inch
2шт.
21
K307900
HOUSING
- hand brake lever
1шт.
22
K650350
BOLT
- M8 x 60 mm
3шт.
23
592-6
WASHER
- lock, 8 mm
3шт.
24
K909588
PAWL
- hand lever
1шт.
25
K14651
SPRING
- pawl
1шт.
26
K916679
LEVER
- cross shaft
1шт.
27
135-103
PIN, GROOVED
PIN - 3/8 x 2-1/4 inch
2шт.
28
K919706
PIN
- shaft lever
2шт.
29
K624927
SPRING
- return
2шт.
30
K940583
BAR ASSY.
ROD - brake
2шт.
31
K607525
NUT
- adjusting, 3/8 inch UNC
2шт.
32
280136
NUT,3/8"-16, G8
2шт.
33
K928589
LEVER
- cam
2шт.
34
K14744
PIN
- cam lever
2шт.
35
K956735
BRAKE
CAMSHAFT - brake, right-hand
1шт.
36
K956734
BRAKE
CAMSHAFT - brake, left-hand
1шт.
37
K654760
O-RING,22.5MM ID x 3MM Width
- 1 inch (25 mm) ID
2шт.
38
K85417
SEAL
- dirt
2шт.
39
K30835
BUSHING
- axle housing
4шт.
40
K609425
LARGE PIN
PIN - locking, 3/8 inch UNC (Prior to P.I.N. 11490001)
2шт.
41
492-11038
LOCK WASHER,3/8"
2шт.
42
425-106
NUT,3/8"-16, Cl 5
2шт.
Выбрано товаров: 42
