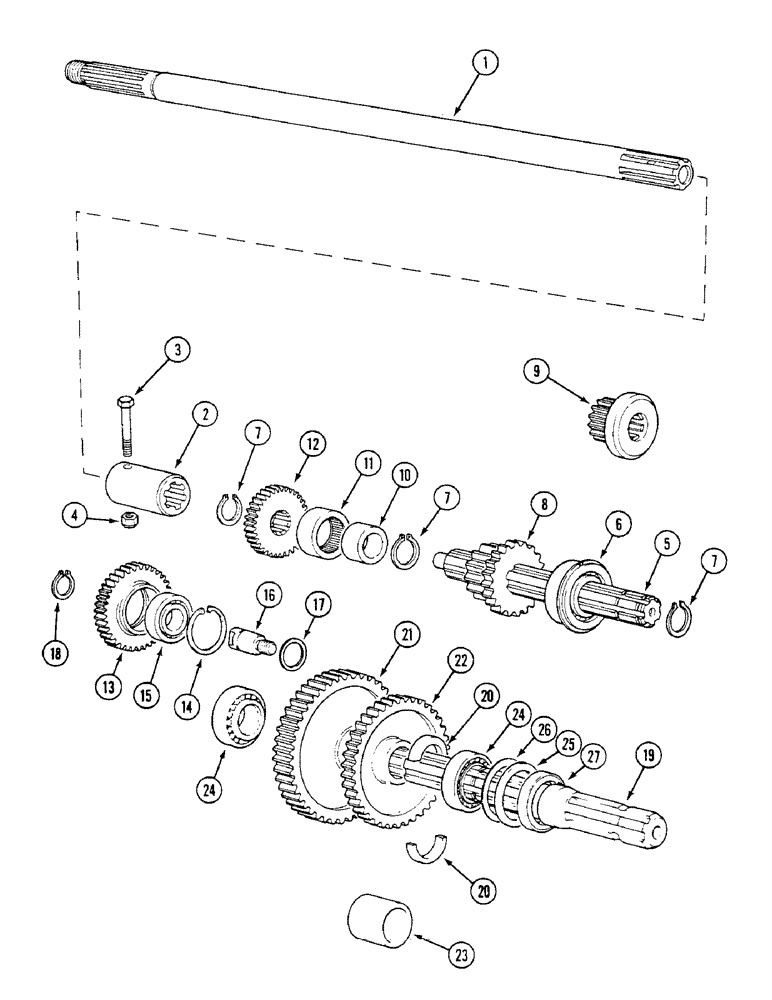

Запчасти Case IH 1294 (6-196) - POWER TAKE-OFF, GEARS AND SHAFTS (06) - POWER TRAIN

1

K200749

SHAFT

- cardan

1шт.

2

K89181

COUPLING, BREAK AWAY

COUPLING - shaft

1шт.

3

13-430

BOLT,Hex, 1/4" - 20 x 1-7/8", Gr 5

- /4 UNC X 1-7/8 inch

1шт.

4

K607440

NUT

- self-locking, 1/4 inch UNC

1шт.

5

K906735

DRIVE SHAFT

SHAFT - drive, PTO

1шт.

6

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball, with snap ring

1шт.

7

103-11112

SNAP RING,#112, Ext

Ring, Snap, #112, Ext

4шт.

8

K906688

GEAR

PINION - speed change, 13-19 teeth (Multi-speed)

1шт.

9

NSS

NOT SOLD SEPARAT

PINION - speed change, (Single -speed) (Order K906688)

1шт.

10

K906693

RING RACE

RACE - roller bearing, inner

1шт.

11

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 inch ID

1шт.

12

K908094

GEAR

- drive, hydraulic pump, 29 teeth

1шт.

13

K923442

GEAR

- idler, hydraulic pump

1шт.

14

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

15

P39667

BEARING

- ball

1шт.

16

K923441

PIN

SHAFT - idler gear

1шт.

17

K626200

SHIM,.002" Thk

Washer (1" ID) (25 x 0.051 mm) .002" Thk

1шт.

17

K626201

SHIM,.003" Thk

(0.08 mm) .003" Thk

1шт.

17

K626202

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

17

K626203

SHIM,.010" Thk

(0.25 mm) .010" Thk

1шт.

18

K11128

CIRCLIP

RING - snap, 1 inch (25 mm) OD

1шт.

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - driven, Includes: Ref. 19 & 20

1шт.

19

K923432

SHAFT

- driven

1шт.

20

K923433

RING

HALVES - split

2шт.

21

K923434

GEAR

- low speed, 44 teeth

1шт.

22

K906689

GEAR

- high speed, 38 teeth (Multi-speed)

1шт.

23

K952132

BUSHING

SPACER - gear

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - roller, tapered

2шт.

25

K923435

WASHER

RING - thrust

1шт.

26

K923436

SHIM

- 0.002 inch (0.05 mm)

1шт.

26

K923437

SHIM

- 0.003 inch (0.08 mm)

1шт.

26

K923438

SHIM

- 0.005 inch (0.13 mm)

1шт.

26

K923439

SHIM

- 0.010 inch (0.25 mm)

1шт.

26

K923440

SHIM

- 0.020 inch (0.51 mm)

1шт.

27

K11119

OIL SEAL

- oil, 1-5/8 x 2-1/2 x 5/8 inch (41 x 64 x 16 mm)

1шт.
