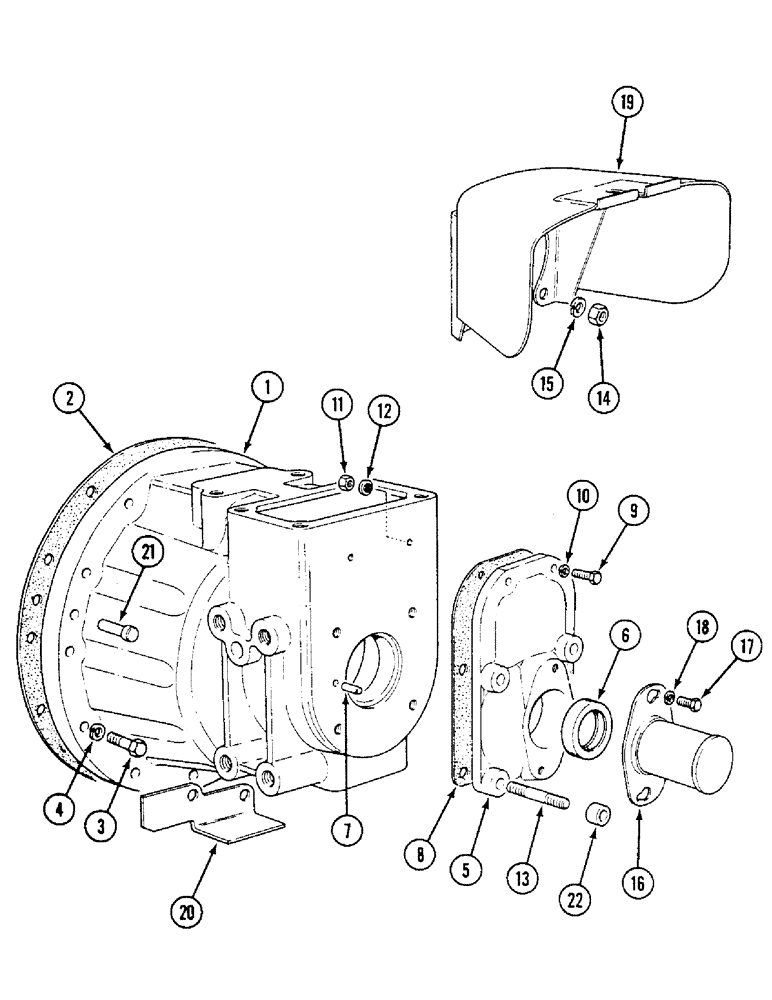

Запчасти Case IH 1294 (6-194) - POWER TAKE-OFF, HOUSING AND COVERS (06) - POWER TRAIN

1

K957400

PTO

HOUSING - PTO

1шт.

2

K205398

GASKET

- plate to rear axle housing and PTO unit

1шт.

3

K600605

BOLT

- 7/16 UNC x 1-7/8 inch

11шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

11шт.

5

K906686

COVER

- end

1шт.

6

K11119

OIL SEAL

- oil, 1-5/8 x 2-1/2 x 5/8 inch (41 x 64 x 16 mm)

1шт.

7

K25360

PIN

- 1/4 x 9/16 inch

2шт.

8

K924217

GASKET

- end cover

1шт.

9

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

10

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

12

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch (8 mm)

1шт.

13

K608311

STUD

- 7/16 UNC x 2-5/16 inch

4шт.

14

280717

NUT,7/16"-14, G5

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

K909111

COVER

- PTO shaft

1шт.

17

K602840

SCREW

BOLT - 5/16 UNC x 1/2 inch

2шт.

18

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

2шт.

19

K207656

GUARD

- PTO shaft

1шт.

20

K928304

SHIM

GUARD - hydraulic filter switch

1шт.

21

K61412

PIN

DOWEL - PTO to axle case, 7/16 x 1-1/4 inch (11 x 32 mm)

1шт.

22

K627060

BUSHING

SPACER - guard to PTO cover

4шт.
