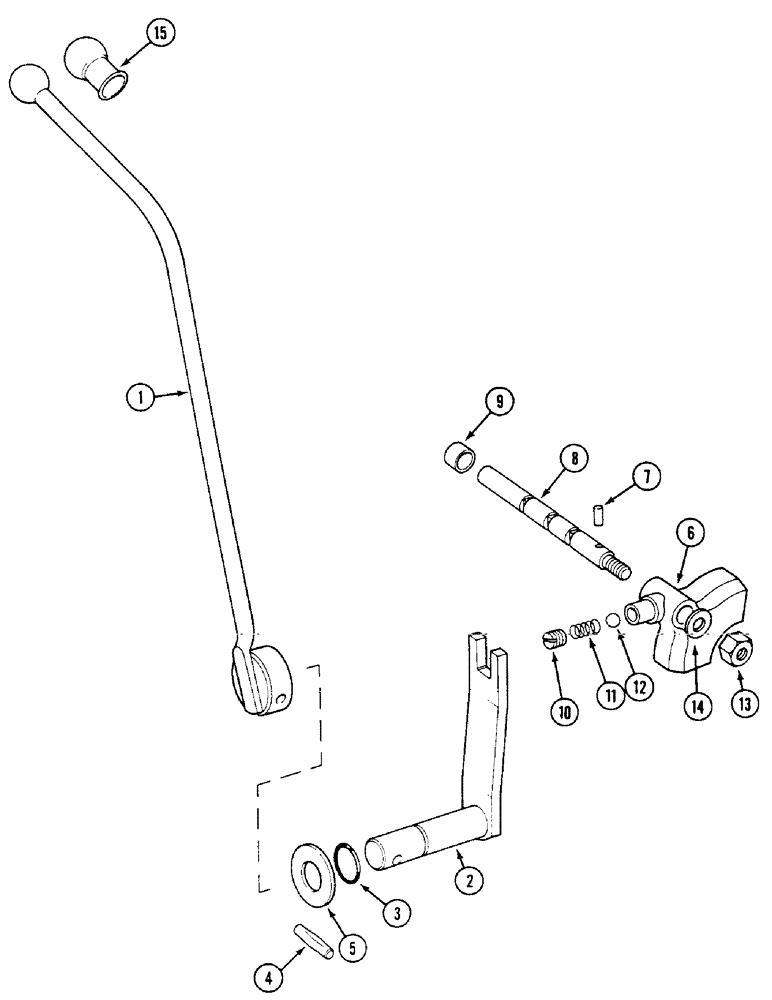

Запчасти Case IH 1294 (6-190) - POWER TAKE-OFF CONTROLS, TRACTORS WITHOUT CAB (06) - POWER TRAIN

1

K202485

LEVER

- hand, PTO operating

1шт.

2

K206520

LEVER

SHAFT - lever, selector

1шт.

3

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) ID

1шт.

4

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

5

K916582

SHIM

- lever

1шт.

6

K906701

SELECTOR

FORK - selector

1шт.

7

K906700

PIN

- retaining

1шт.

8

K942469

SELECTOR

ROD - selector

1шт.

9

K921603

BUSHING

SPACER - selector rod, single speed

1шт.

10

81-3315

SET SCREW,5/16"-18 x 5/16", Slotted

SCREW - 5/16 inch

1шт.

11

K24831

SPRING

- detent

1шт.

12

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

14

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch (8 mm)

1шт.

15

K307985

COVER

- hand lever

1шт.
