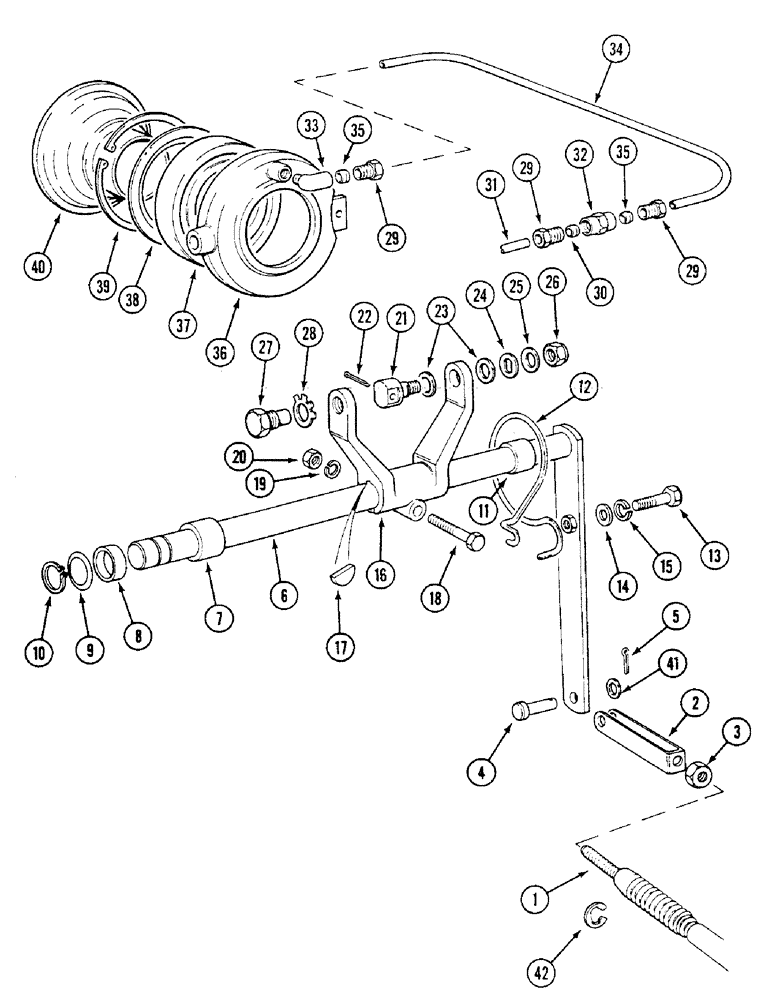

Запчасти Case IH 1294 (6-184) - PTO CLUTCH RELEASE MECHANISM - BORG AND BECK CLUTCH, TRACTORS WITH CAB (06) - POWER TRAIN

1

K310598

CABLE

- inner and outer

1шт.

2

K659018

FORK

- cable end

1шт.

3

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

2шт.

4

K625941

PIN

- clevis

1шт.

5

732-2018

PIN - cotter, 2 x 18 mm

1шт.

6

K206500

SHAFT

CROSS SHAFT AND ARM

1шт.

7

K206499

BUSHING

SPACER

1шт.

8

K627472

WASHER

- 1 inch (P.I.N. 11490001 and after)

1шт.

9

K626749

WASHER

- Belleville, 1 inch (Prior to P.I.N. 11501086)

1шт.

10

K11128

CIRCLIP

RING - snap, 1 inch (25 mm) OD

1шт.

11

K628753

BUSHING

- main frame

3шт.

12

K307501

SPRING

- cross shaft return

1шт.

13

K650629

SCREW

BOLT - M6 x 25 mm

1шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

16

K915832

CLUTCH FORK

FORK - PTO clutch

1шт.

17

126-22

WOODRUFF KEY,#13, 3/16" x 1"

(No. 608) #13, 3/16" x 1"

2шт.

18

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch

1шт.

19

492-11038

LOCK WASHER,3/8"

1шт.

20

280136

NUT,3/8"-16, G8

1шт.

21

K925323

TRUNNION,14.27mm OD x 57.15mm L

PIN - trunnion, right-hand

1шт.

22

K26230

PIN, SPLIT (COTTER)

PIN - cotter, 3/16 x 1-3/8 inch

1шт.

23

K262720

WASHER,15mm ID x 25mm OD x 2mm Thk

WASHER - friction

2шт.

24

K925338

BEARING WASHER

WASHER - 3/8 inch (10 mm) special

1шт.

25

K626723

BELLEVILLE WASHER

WASHER - Belleville

6шт.

26

232-1416

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

27

K915833

PIN

- trunnion, left-hand

1шт.

28

K626399

WASHER

- tab, trunnion pin

1шт.

29

K617956

NUT

- tubing, 3/8 inch UNF

3шт.

30

222-651

SLEEVE,3/16" Tube, Comp

Tapered 3/16" Tube, Comp

1шт.

31

K950502

TUBE,0.187" DIA x 2.25" L

- main frame, 3/16 x 20-1/4 inch

1шт.

32

K626045

FITTING

CONNECTOR - 3/8 inch UNF

1шт.

33

K19587

FITTING

ELBOW - 90 degree

1шт.

34

K950502

TUBE,0.187" DIA x 2.25" L

- main frame, 3/16 x 20-1/4 inch

1шт.

35

K622407

FERRULE

SLEEVE - tube, 3/16 inch ID

2шт.

36

K915837

BEARING HOUSING

HOUSING - thrust bearing

1шт.

37

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

BEARING - thrust, PTO clutch

1шт.

38

K84745

SEAL,88.01mm ID x 114.17mm OD x 0.56mm Thk

SHIELD - dirt

1шт.

39

K621431

RING, SNAP

RING - snap, 4-1/2 inch (115 mm) internal

1шт.

40

K84740

THRUST PLATE

1шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

42

K621595

RING, SNAP

RING - snap, cable to fuel tank support

1шт.
