(6-178) - POWER ADJUSTED REAR WHEELS

Запчасти Case IH 1294 (6-178) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

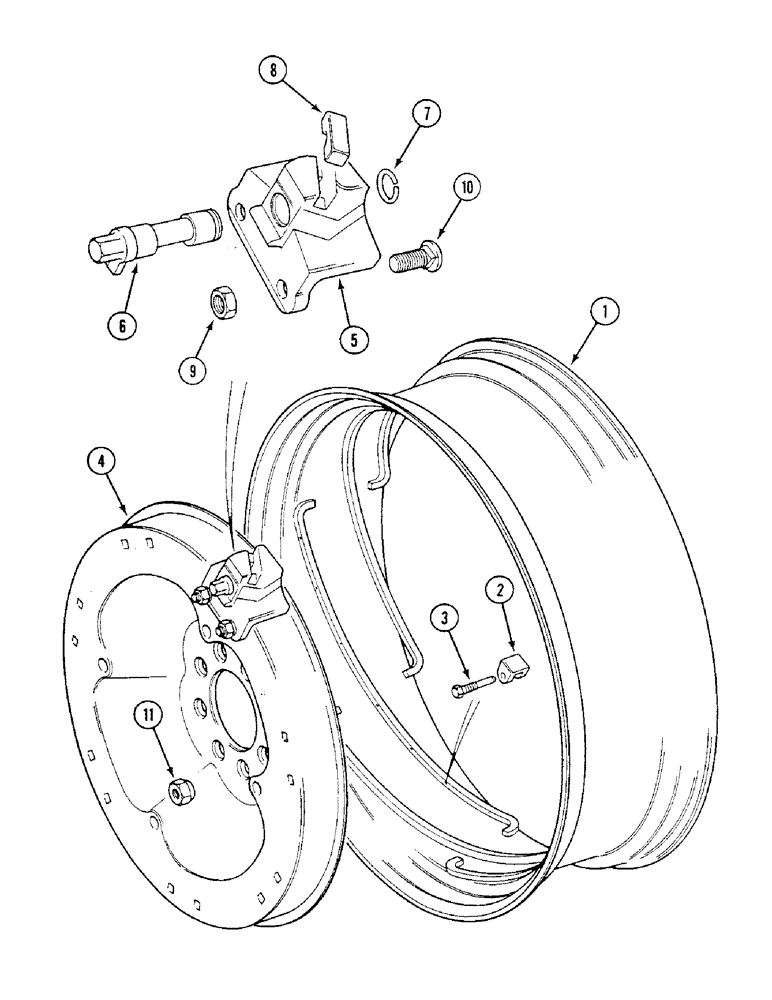

Схема запчастей Case IH 1294 - (6-178) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN
8
2
9
3
10
1
5
11
6
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

RIM ASSEMBLY - rear, (fits 14-30 tires), Includes: Ref. 1 - 9

2шт.

1

K302516

RIM

- rear W14 x 30

1шт.

2

K917337

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

K302515

WHEEL

- center, rear

1шт.

5

K917340

SUPPORT

CLAMP - wheel

5шт.

6

K200128

PIN

- electronic

5шт.

7

K917341

RING

- snap

5шт.

8

K917342

BLOCK

- clamp

5шт.

9

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

10шт.

10

K304694

CARRIAGE BOLT

- shoulder, M, 16

10шт.

11

K617168

WHEEL NUT

- wheel, 3/4 inch UNF

16шт.
