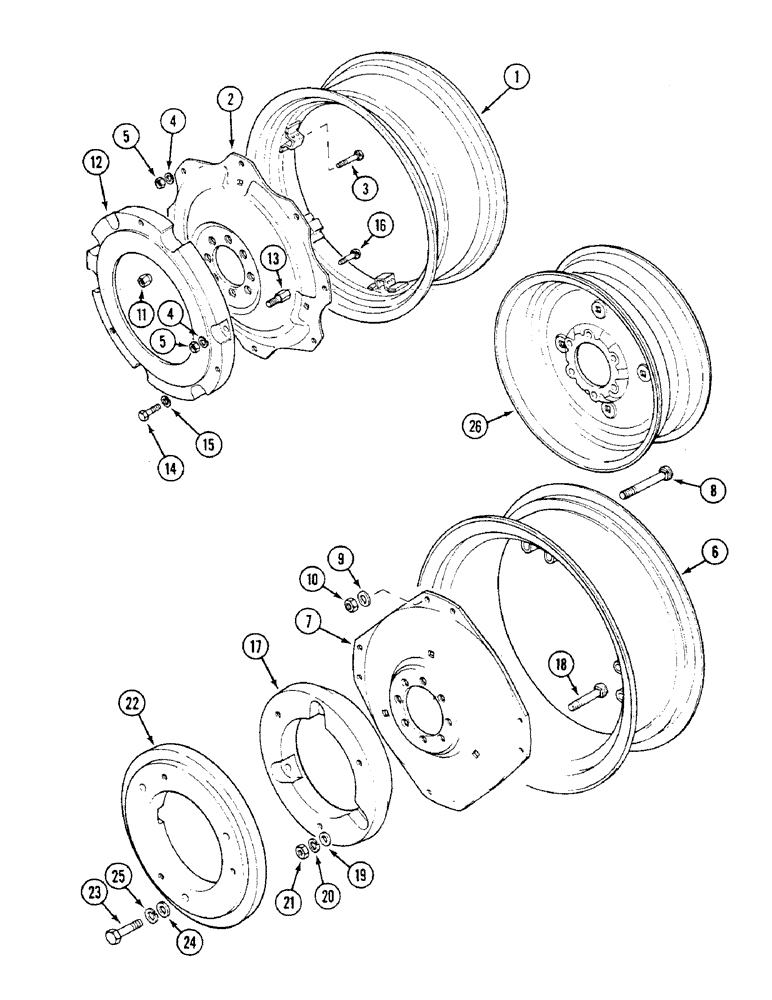

Запчасти Case IH 1294 (6-176) - REAR WHEELS AND BALLAST WEIGHTS (06) - POWER TRAIN

1

K301015

RIM

ASSEMBLY - rear wheel, W14 x 30

2шт.

2

K301016

WHEEL

- center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

6шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

1

1332736C1

RIM

ASSEMBLY - rear wheel, with lugs, DW14 x 30

2шт.

2

K330217

WHEEL

- center, rear

1шт.

3

1500209C2

BOLT

- rim, 5/8 x 3 inch

6шт.

4

K19475

WASHER

- 5/8 inch

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

1

K262525

RIM

ASSEMBLY - rear wheel, W11 x 28

2шт.

2

K330217

WHEEL

- center, rear

1шт.

3

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8

8шт.

4

K19475

WASHER

- 5/8 inch

8шт.

5

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

6

K306361

RIM

ASSEMBLY - rear wheel, W11 x 36

2шт.

7

K306355

DISC, WHEEL

WHEEL - center, rear

1шт.

8

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8

8шт.

9

K19475

WASHER

- 5/8 inch

8шт.

10

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

6

1265244C1

RIM

- wheel

2шт.

7

K306355

DISC, WHEEL

WHEEL - center, rear

1шт.

8

1333029C1

BOLT,Coach, M16 x 120mm, Gr 8.8

BOLT - coach, 16 x 120 mm grade 8.8

8шт.

9

K19475

WASHER

- 5/8 inch

8шт.

10

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

8шт.

11

K617168

WHEEL NUT

- wheel, 3/4 inch UNF

16шт.

12

K86167

WEIGHT

- ballast, 45 kg

4шт.

13

K914869

STUD

- 5/8 inch UNF

6шт.

14

K19305

BOLT

- 5/8 BSF x 2 inch

6шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

16

K611280

BOLT

- rim, 5/8 UNF x 3 inch

6шт.

17

K207479

WHEEL

WEIGHT - ballast, inner, 45 kg (100 lb)

2шт.

18

K611283

BOLT

- 5/8 UNF x 3-1/2 inch

6шт.

19

K626855

WASHER

- special, 5/8 inch (10 mm)

6шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21

425-1110

NUT,5/8"-18, G5

6шт.

22

K207480

WHEEL

WEIGHT - ballast, outer, 44 kg (97 lb)

2шт.

23

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

6шт.

24

K626855

WASHER

- special, 5/8 inch (10 mm)

6шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

26

K309290

WHEEL

- rear, W, 12 x 24

2шт.

26

K309291

WHEEL

- rear, W, 15L x 24

2шт.

26

K309292

WHEEL

- rear, DW, 16 x 26

2шт.
