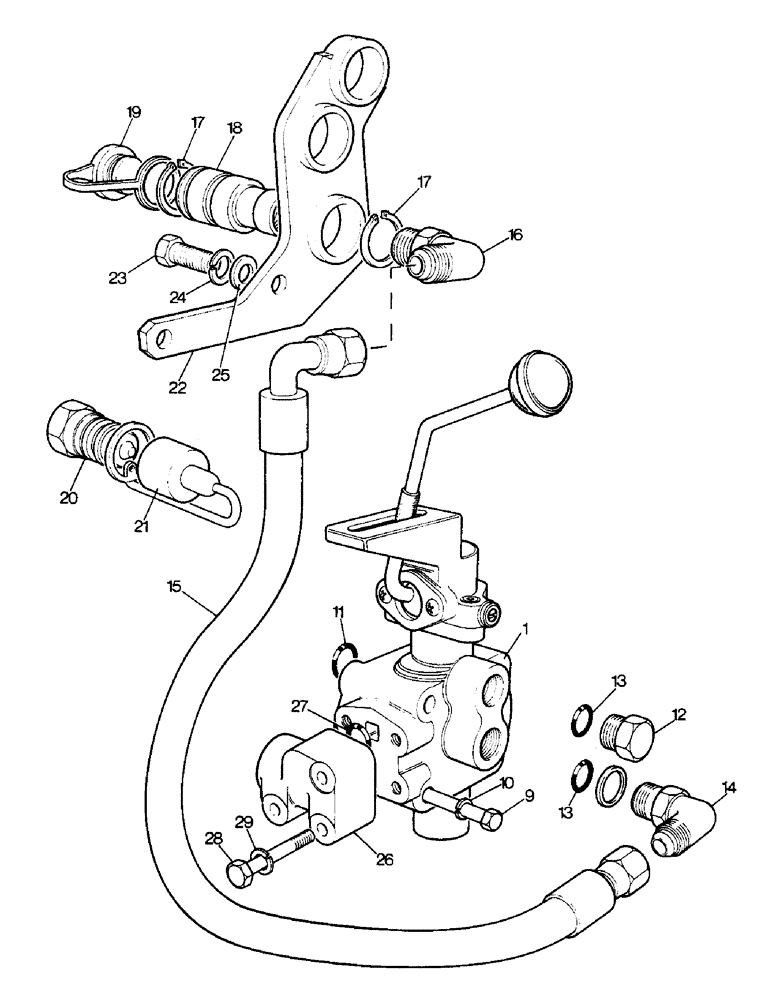

Запчасти Case IH 1290 (K-17) - THREE WAY VALVE ATTACHMENT (07) - HYDRAULICS

UK5100

VALVE

THREE-WAY VALVE ATTACHMENT - 1290 tractor

1шт.

UK5094

VALVE

THREE-WAY VALVE ATTACHMENT - 1390 tractor, Includes Ref: 1 - 19

1шт.

1

K204765

VALVE

ASSEMBLY - three-way, see page K18-1

1шт.

9

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

10

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

11

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 inch ID

1шт.

12

K948415

PLUG

- 3/4 inch UNF

1шт.

13

K623589

O-RING

- 5/8 inch ID

1шт.

14

K622114

FITTING

ELBOW - 3/4 inch UNF x 90 degrees

1шт.

15

K201876

HOSE

TUBE - flexible

1шт.

16

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

17

K621510

SNAP RING,#150, Ext

Ring, Snap, , coupling to bracket #150, Ext

2шт.

18

K201770

COUPLING, BREAK AWAY

COUPLING - quick release, tractor half

1шт.

19

K950297

PLUG

COVER - dust, tractor coupling

1шт.

20

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half, Includes Ref: 21

1шт.

21

K200645

CAP

COVER - dust, implement coupling

1шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY - mounting, Includes Ref: 22 - 25

1шт.

22

K202578

BRACKET

- coupling support

1шт.

23

K603141

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

2шт.

24

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

25

K626686

WASHER

- 1/2 inch

2шт.

26

K919614

ADAPTER

- tube to valve, 1290 tractor

1шт.

27

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 inch ID

1шт.

28

K600321

BOLT

- 5/16 UNC x 2 inch

3шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.
