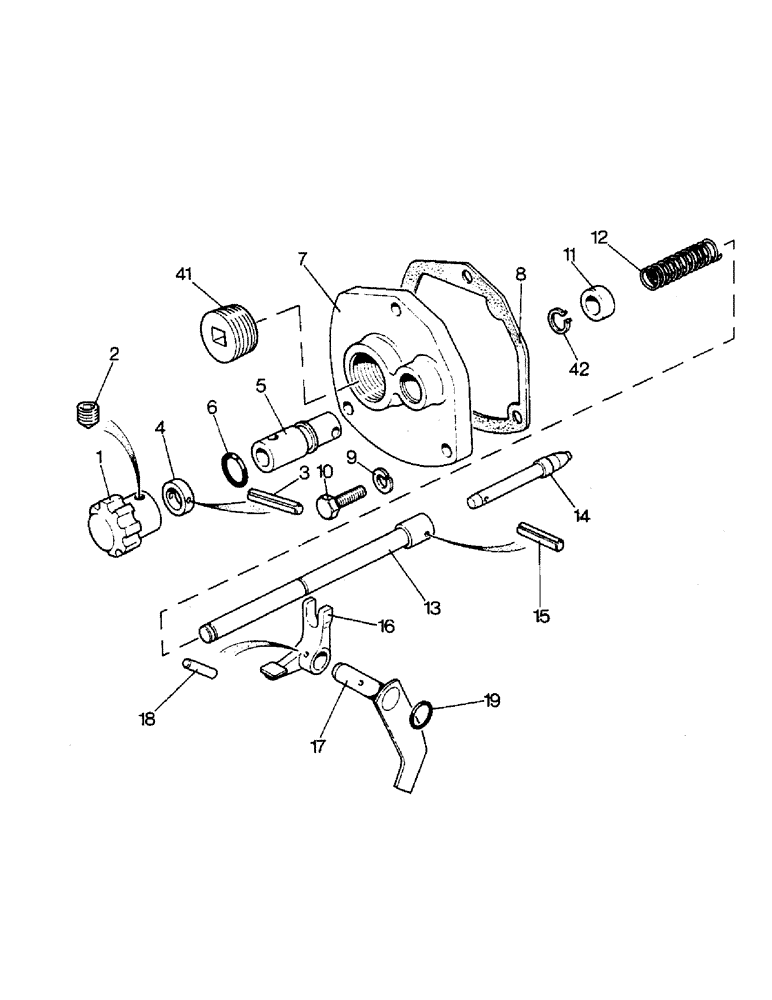

Запчасти Case IH 1290 (K-15) - FLOW RATE LOWERING CONTROL (07) - HYDRAULICS

1

K203592

KNOB

- lowering control

1шт.

2

K606300

SCREW

BOLT - 1/4 UNC x 1/4 inch

1шт.

3

K623933

SPRING

PIN - roll, 1/8 x 5/8 inch

1шт.

4

K207044

COLLAR

- knob (Replaces K204330)

1шт.

5

K203588

GUIDE

- threaded

1шт.

6

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID

1шт.

7

K203587

LEVER

COVER - control

1шт.

8

K202414

GASKET,1.59mm Thk

- cover

1шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

10

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

11

K627480

COLLAR

- thrust (Replaces K202428)

1шт.

12

K625050

SPRING

- pressure

1шт.

13

K203589

SPINDLE

- needle valve

1шт.

14

K957135

NEEDLE

NOSE - needle valve

1шт.

15

K623976

SPRING

PIN - roll, 3/32 x 3/4 inch

1шт.

16

K202416

FORK

- actuating

1шт.

17

K202417

SHAFT

- pivot

1шт.

18

K623926

PIN - 1/8 x 3/4 inch

1шт.

19

K24554

O-RING

- 3/8 inch ID

1шт.

41

K12362

PLUG

- 1 inch BSP

1шт.

42

K621562

RING, SNAP

RING - snap, 3/8 inch, external

1шт.
