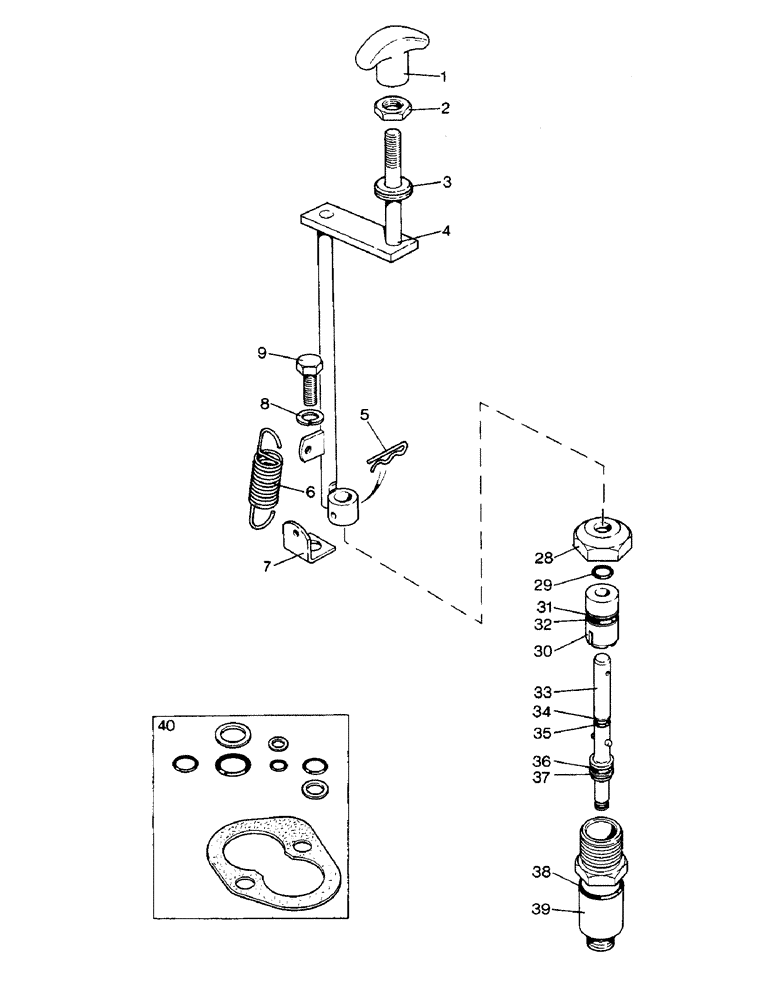

Запчасти Case IH 1290 (K-13) - DUMP VALVE ASSEMBLY AND PARTS (07) - HYDRAULICS

1

K955948

KNOB

- control

1шт.

2

280136

NUT,3/8"-16, G8

1шт.

3

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- 5/8 inch

1шт.

4

K203886

ROD

- control

1шт.

5

K624874

SPRING

CLIP - spring

1шт.

6

K624947

SPRING

- return

1шт.

7

K301426

BRACKET

ANCHOR - return spring

1шт.

8

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

9

K602883

SCREW,5/16" - 18 x 3/4", Gr V

BOLT - 5/16 UNC x 3/4 inch

1шт.

K205087

VALVE

ASSEMBLY - dump, Includes Ref: 28 - 39

1шт.

28

K918983

NUT

- 1 inch UNF, special

1шт.

29

K24554

O-RING

RING - sealing, 1/2 inch diameter

1шт.

30

K948805

BUSHING

- special

1шт.

31

L33237

RING

- back-up, 3/4 inch OD (replaces K628913)

1шт.

32

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch ID

1шт.

33

K260383

PLUNGER

- valve

1шт.

34

K628060

RING,Split, 6.35mm ID x 9.53mm OD x 1.47mm Thk

- back-up, 3/8 inch OD

1шт.

35

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch ID

2шт.

36

K625404

O-RING,0.362" ID x 0.103" Width

- 3/8 inch ID

1шт.

37

K948806

RING

- back-up, 9/16 inch OD

1шт.

38

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

RING - sealing, 1 inch diameter

1шт.

39

K948804

GUIDE

BODY - valve

1шт.

40

K964568

SEAL

SEAL KIT - dump valve

1шт.
