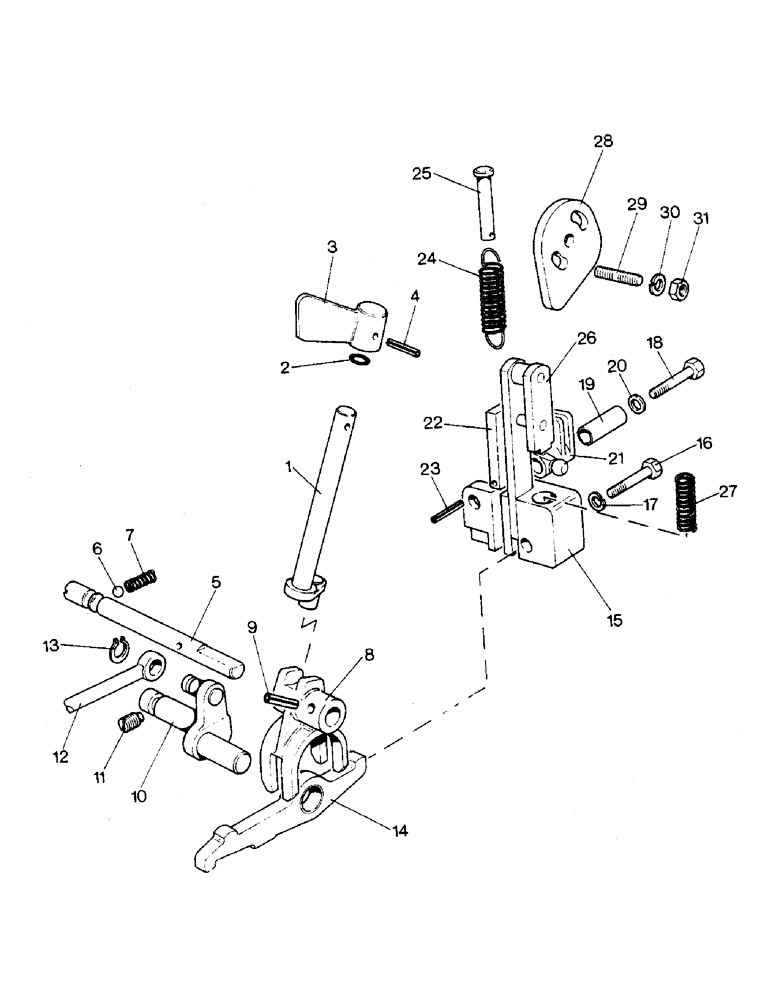

Запчасти Case IH 1290 (K-10) - SELECTOR CONTROL MECHANISM (07) - HYDRAULICS

1

K919362

CONTROL LEVER

ROD - selector

1шт.

2

K24554

O-RING

- 3/8 inch ID

1шт.

3

K947405

KNOB

POINTER - selector

1шт.

4

K623936

PIN, ROLL

PIN - roll, 1/8 x 3/4 inch

1шт.

5

K913160

SELECTOR

SHAFT - selector

1шт.

6

K17063

BALL

- 1/4 inch steel

1шт.

7

K24563

SPRING

- return

1шт.

8

K942417

SELECTOR

FORK - selector

1шт.

9

K623740

SPLIT PIN/SAFETY PIN

PIN - roll, 3/16 x 7/8 inch

1шт.

10

K913119

ROCKER LEVER

SHAFT - rocker

1шт.

11

K602750

SCREW

- retaining, slotted

1шт.

12

K909585

ROD

- connecting

1шт.

13

K621562

RING, SNAP

RING - snap, 3/8 inch, external

1шт.

14

K200678

ROCKER LEVER

LEVER - rocker

1шт.

15

K916362

GUIDE

BRACKET - guide

1шт.

16

K600206

BOLT

- 5/16 UNC x 1-5/8 inch

1шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

18

K600361

BOLT

- 5/16 UNC x 1-7/8 inch

1шт.

19

K627019

BUSHING

- actuator

1шт.

20

K626682

WASHER

- 5/16 inch

1шт.

21

K915033

LEVER

- actuating

1шт.

22

K912971

ROD

- push, draft control

1шт.

23

K623973

SPRING

PIN - roll, 3/32 x 9/16 inch

1шт.

24

K624922

SPRING

- return

1шт.

25

K913776

SPRING

ANCHOR - spring

1шт.

26

K921723

ROD

- push, height control

1шт.

27

K625196

SPRING

- pressure

1шт.

28

K916587

CAM

- push rod

1шт.

29

K608001

STUD

- 1/4 UNC x 1-1/16 inch

2шт.

30

K19470

WASHER

- 1/4 inch

2шт.

31

K607300

NUT

- 1/4 inch UNC

2шт.
