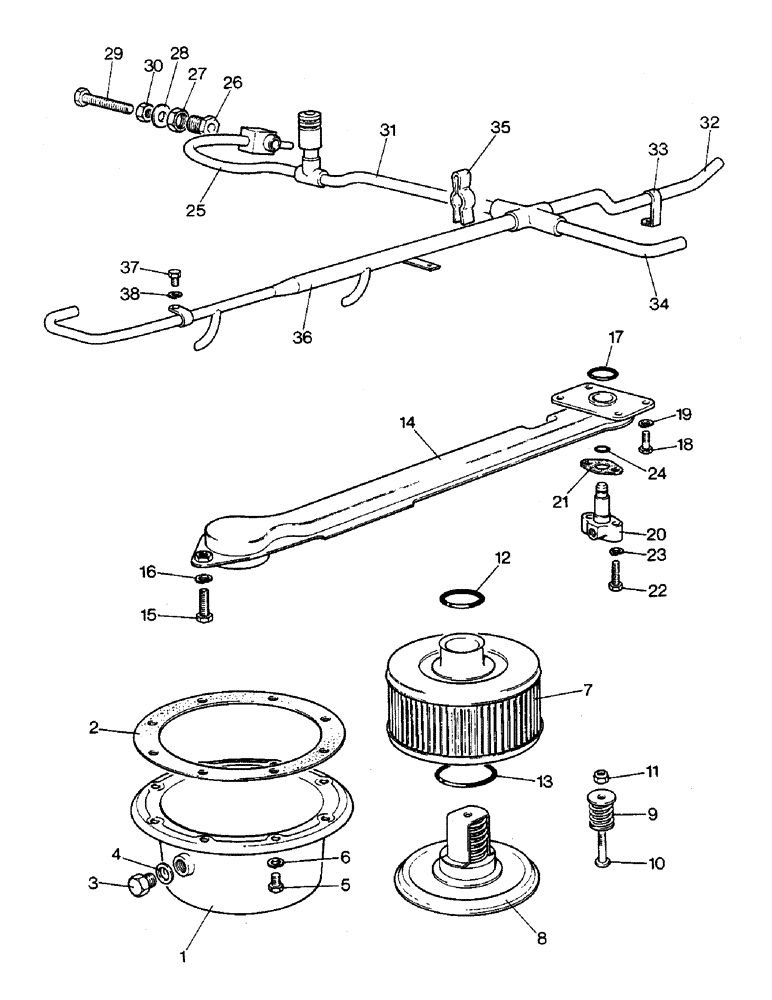

Запчасти Case IH 1290 (K-01) - INLET FILTER AND LUBRICATION TUBES (07) - HYDRAULICS

1

K920520

COVER

- sump, rear

1шт.

2

K906764

GASKET

- cover

1шт.

3

K19581

PLUG

- drain, 1/4 BSP

1шт.

4

K626765

GASKET

WASHER - sealing, 1/2 inch

1шт.

5

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 UNC x 5/8 inch

8шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

K920806

FILTER, ELEMENT

FILTER ASSEMBLY - hydraulic, Includes Ref: 7 - 13

1шт.

7

K920522

FILTER, ELEMENT

ELEMENT - filter

1шт.

8

K920521

VALVE

AND SCREEN ASSEMBLY - filter, Includes Ref: 9 - 11

1шт.

9

K904390

PLUG

MAGNET - valve

1шт.

10

K624300

SCREW

- 2BA x 1-1/2 inch

1шт.

11

K623002

LOCK NUT

- Nyloc, 2BA

1шт.

12

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/8 inch ID

1шт.

13

K623524

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- 2-1/8 inch ID

1шт.

14

K920860

PIPE

TUBE - suction, oil

1шт.

15

K602850

SCREW,Set, 5/16" - 18 x 1 1/8", Gr S

BOLT - 5/16 UNC x 1-1/8 inch

1шт.

16

K626620

SPRING WASHER

- lock, 5/16 inch

1шт.

17

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1-1/4 inch ID

1шт.

18

K12131

BOLT

- 1/4 BSP x 9/16 inch

4шт.

19

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

20

K921214

ADAPTER

- warning lamp switch

1шт.

21

K921220

GASKET

- adapter

1шт.

22

K602737

SCREW

BOLT - 1/4 UNC x 1 inch

2шт.

23

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

2шт.

24

K625400

O-RING,0.07" Thk x 0.239" ID

- 1-1/4 inch ID

1шт.

25

K915339

TUBE

- lubrication, Serial Range: valve-tee

1шт.

26

K912269

BUSHING

- threaded, axle case

1шт.

27

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/2 inch UNC

1шт.

28

K626577

WASHER

- sealing, 1/2 inch

1шт.

29

K602816

SCREW

BOLT - 5/16 UNC x 2-3/8 inch

1шт.

30

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC

1шт.

31

K915337

PIPE

TUBE - valve to cross piece

1шт.

32

K913783

PIPE

TUBE - lubrication, multi-speed PTO

1шт.

33

K621660

CLIP

- tube

1шт.

34

K913785

PIPE,0.5" OD

TUBE - lubrication, ram cylinder

1шт.

35

K625009

SPRING

CLIP - retaining, tube to axle case

1шт.

36

K929551

PIPE,18.937, 4" L

TUBE - lubrication, gearbox

1шт.

37

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2 inch

1шт.

38

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.
