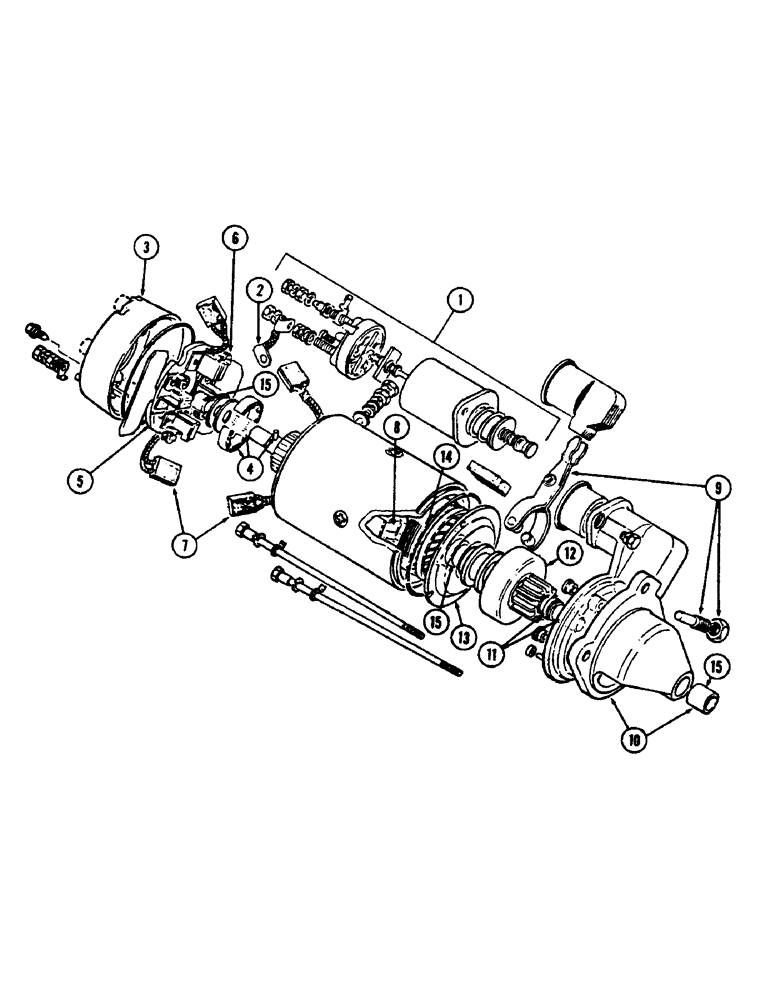

Запчасти Case IH 1290 (S-13) - K957340 STARTER (LUCAS 2M113) (06) - ELECTRICAL SYSTEMS

K957340

STARTER MOTOR

STARTER ASSEMBLY - engine, Includes Ref: 1 - 15

1шт.

1

A48240

SOLENOID

ASSEMBLY - starter

1шт.

2

A48241

LINK

- solenoid

1шт.

3

A48236

BRACKET

ASSEMBLY - commutator end

1шт.

4

K963857

BRAKE

KIT - starter

1шт.

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

NSS

NOT SOLD SEPARAT

SPRING - brake

2шт.

NSS

NOT SOLD SEPARAT

PIN - brake

1шт.

5

A48237

PLATE

ASSEMBLY - brush mounting, Includes Ref: 6

1шт.

6

K963798

SPRING

S - brush (Set of 4)

1шт.

7

K962799

BRUSH, COMMUTATOR

KIT - brush (Set of 4)

1шт.

8

A48238

COIL

FIELD COIL ASSEMBLY - starter

1шт.

9

H662718

KIT

- solenoid link

1шт.

NSS

NOT SOLD SEPARAT

LINK - solenoid

1шт.

NSS

NOT SOLD SEPARAT

PIN - pivot

1шт.

NSS

NOT SOLD SEPARAT

NUT - lock, pivot pin

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - drive end

1шт.

11

A48239

KIT

- retention

1шт.

NSS

NOT SOLD SEPARAT

RING - jump

1шт.

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

12

K964242

DRIVE

ASSEMBLY - starter

1шт.

13

A48242

BRACKET

ASSEMBLY - intermediate

1шт.

14

K964185

ARMATURE

ASSEMBLY - starter

1шт.

15

K963791

KIT

BUSHING KIT - (Set of 3)

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - drive end

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - intermediate

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - commutator

1шт.

A48243

KIT

- hardware (Includes all items illustrated but not listed or identified)

1шт.
