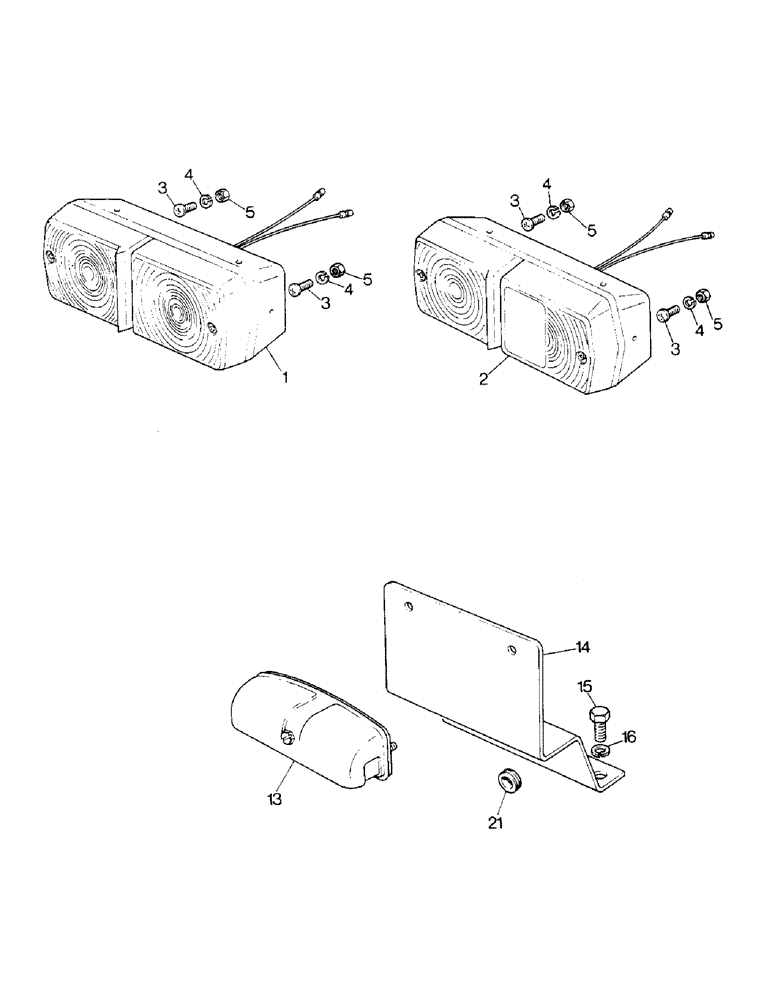

Запчасти Case IH 1290 (S-07) - SIDE AND REAR WARNING LAMPS (06) - ELECTRICAL SYSTEMS

1

K300195

LIGHT

LAMP ASSEMBLY - left-hand front, side flasher

1шт.

K260911

LENS

- lamp

1шт.

1

K300194

LIGHT

LAMP ASSEMBLY - right-hand front, side flasher

1шт.

K260911

LENS

- lamp

1шт.

2

K300190

LAMP

ASSEMBLY - stop, flasher, rear, left-hand

1шт.

K260880

LENS

- lamp

1шт.

2

K300189

LAMP

ASSEMBLY - stop, flasher, rear, right-hand

1шт.

K260880

LENS

- lamp

1шт.

3

K652464

SCREW

- M5 x 12 MM

8шт.

4

K651846

WASHER, LOCK

WASHER - lock, 5 MM

8шт.

5

K651525

NUT

- M5

4шт.

13

K943308

PLATE

LAMP - rear number plate

1шт.

14

K301333

BRACKET

- support

1шт.

15

K650641

SCREW

- M8 x 16 MM

2шт.

16

K651848

WASHER

- lock, 8 MM

2шт.

21

K627754

GROMMET

- 14 MM

1шт.
