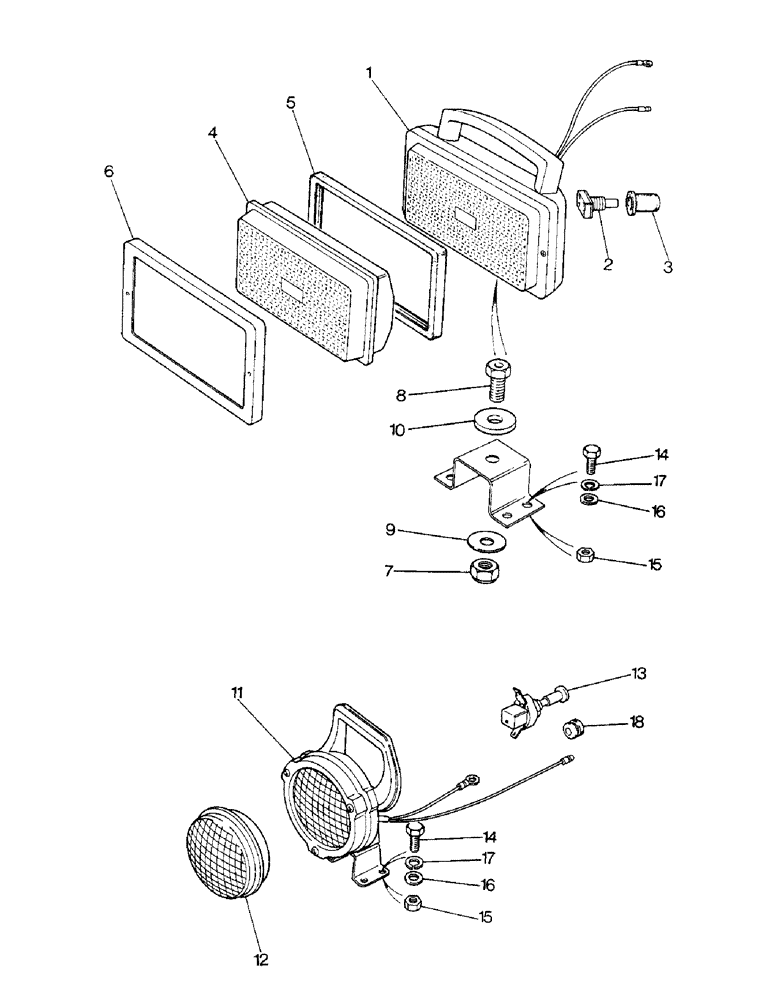

Запчасти Case IH 1290 (S-06) - REAR FLOOD LAMPS (06) - ELECTRICAL SYSTEMS

1

K302866

LAMP

FLOOD LAMP ASSEMBLY - rear, Includes Ref: 2 - 10

1шт.

2

K260688

SWITCH ASSY

SWITCH - lamp

1шт.

3

K260689

SWITCH

COVER - switch

1шт.

4

K260687

LENS

AND REFLECTOR - lamp

1шт.

5

K260693

LENS

GASKET - lens

1шт.

6

K260694

LAMP

RIM - lens

1шт.

7

K260696

NUT

- M12, self-locking

1шт.

8

K260695

BOLT

- M12, special

1шт.

9

K260691

WASHER

- 12 MM

1шт.

10

K260690

WASHER

- nylon, 12 MM

1шт.

11

K301230

LAMP

FLOOD LAMP ASSEMBLY - rear (Hella), Includes Ref: 12 and 13

1шт.

12

K260792

LENS

AND REFLECTOR - lamp

1шт.

13

K260380

SWITCH

- rear flood lamp

1шт.

14

K650641

SCREW

BOLT - M8 x 16 MM

4шт.

15

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

16

K626866

WASHER

- 8 MM, special

4шт.

17

K651848

WASHER

- lock, 8 MM

1шт.

18

K627705

GROMMET

- wire

1шт.
