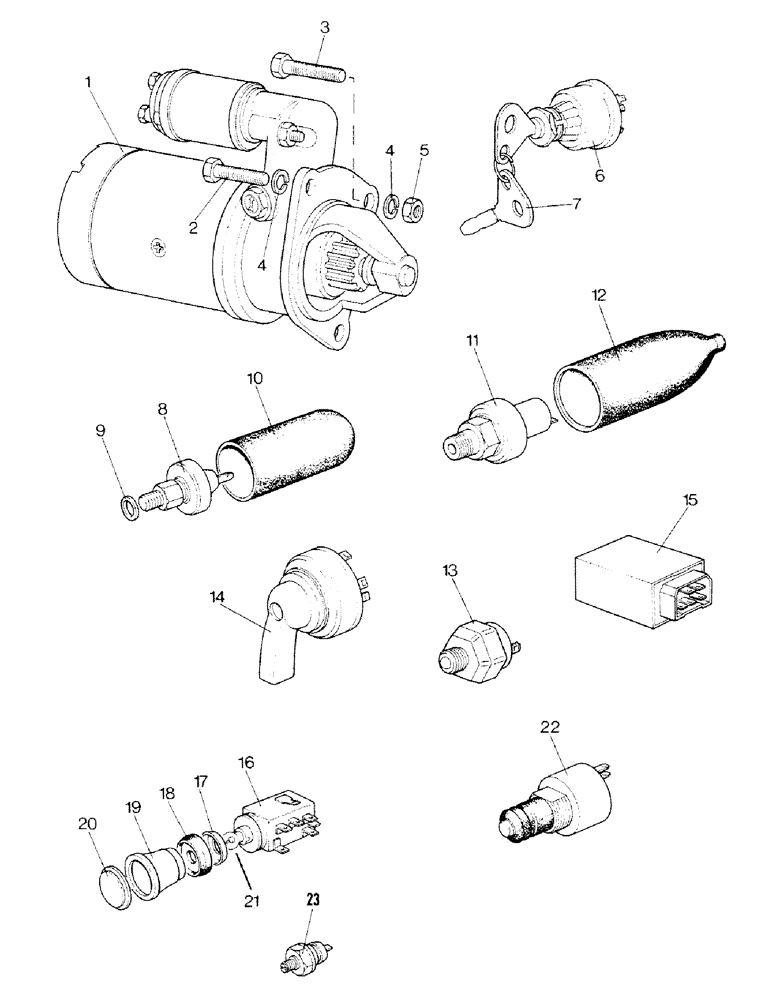

Запчасти Case IH 1290 (S-02) - STARTER AND SWITCHES (06) - ELECTRICAL SYSTEMS

1

K89772

STARTER MOTOR

STARTER - 1290 and 1390 tractor (Lucas 27413) (See fig. S12-1)

1шт.

For 1290 tractor order K957340, for 1390 tractor order K954700

1шт.

1

K954700

STARTER MOTOR

STARTER - 1390 tractor (Bosch A001812178) (See fig. S14-1)

1шт.

1

87297386

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

1

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

2

K600476

BOLT

BOLT - 3/8 UNC x 1-3/4 inch

2шт.

3

K600408

BOLT,3/8" x 2"

BOLT - 3/8 UNC x 2 inch

1шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

3шт.

5

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

6

K203992

IGNITION SWITCH

SWITCH ASSEMBLY - starter (Lucas 54033688), Includes Ref: 7

1шт.

7

K920929

KEY

KEY - isolating and starter switch

1шт.

8

K903851

PRESSURE SWITCH

SWITCH - oil pressure (AC-Delco 7994092)

1шт.

9

K626521

SEALING WASHER

WASHER - fiber, 3/8 inch

1шт.

10

K947518

COVER

COVER - oil pressure switch

1шт.

11

K921317

SENDER UNIT

SWITCH - filter warning (AC-Delco 7954473) (1290 tractor only)

1шт.

12

K923874

COVER

COVER - oil filter switch (1290 tractor only)

1шт.

13

K200652

NEUTRAL START SWITCH

SWITCH - safety (Lucas 33855)

1шт.

14

K300781

FLASHER SWITCH

SWITCH - direction indicator (Hella 6RB 00159503)

1шт.

15

K948611

FLASHER UNIT

FLASHER UNIT - (Hella 4DM 002233-05)

1шт.

16

K300833

SWITCH

SWITCH ASSEMBLY - hazard warning (Hella 6HD 001578-04), Includes Ref: 17 - 21

1шт.

17

K950592

WASHER

WASHER - switch

1шт.

18

K950593

COVER

MOUNTING - switch, rubber

1шт.

19

K964913

KNOB

KNOB - control

1шт.

20

K964914

LENS

LENS - switch

1шт.

21

K950567

BULB

BULB - switch

1шт.

22

K929737

SWITCH ASSY

SWITCH - stop lamps (AC-Delco 1533840)

1шт.

23

K201313

SWITCH

SWITCH - vacuum, air filter warning lamp

1шт.
