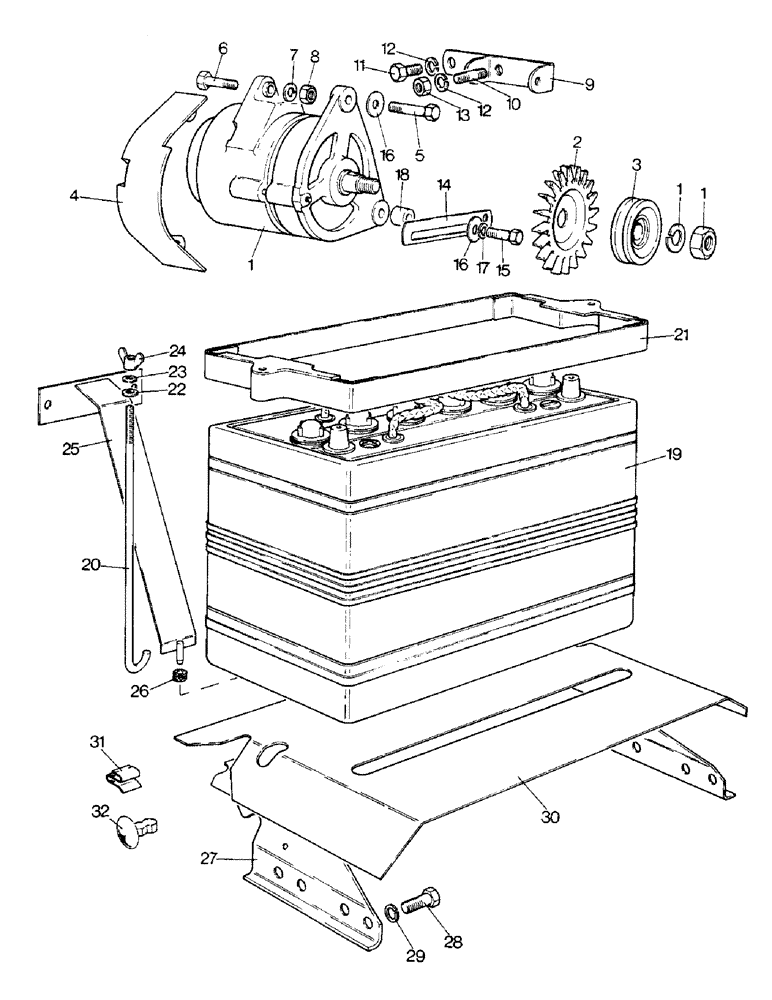

Запчасти Case IH 1290 (S-01) - ALTERNATOR, BATTERY AND SUPPORT (06) - ELECTRICAL SYSTEMS

1

K956426

ALTERNATOR

ALTERNATOR - engine (Lucas 23851) (See fig. S11-1)

1шт.

1

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

1

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

1

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

1

K956430

ALTERNATOR

ALTERNATOR ASSEMBLY - engine (Motorola 9AR2889F) (See fig. S15-1)

1шт.

1

92293C1

ALTERNATOR

Alternator, 12V, 45 Amp, W/Fan and Pulley

1шт.

1

92293C1R

REMAN-ALTERNATOR

Reman For New PN 92293C1

1шт.

1

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp W/Fan and Pulley

1шт.

1

92293C1GV

ALTERNATOR

Value, 12 Volt, 45 Amp W/Fan and Pulley

1шт.

2

K942129

FAN

FAN - alternator

1шт.

3

K942045

PULLEY

PULLEY - alternator

1шт.

4

K950496

FAN

GUARD - alternator fan

1шт.

5

K600363

BOLT

BOLT - 5/16 UNC x 1-1/2 inch

1шт.

6

K600359

BOLT

BOLT - 5/16 UNC x 1-1/4 inch

1шт.

7

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 inch UNC

2шт.

9

K947375

SUPPORT

BRACKET - alternator support

1шт.

10

K608235

STUD

STUD - 3/8 UNC x 1-1/4 inch

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

13

280136

NUT,3/8"-16, G8

NUT, 3/8"-16, G8

1шт.

14

K950495

ADJUSTER

STRAP - adjuster, alternator

1шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT - M8 x 18 MM

1шт.

16

K626916

WASHER

WASHER - 5/16 inch special

2шт.

17

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

18

K627028

BUSHING

SPACER - adjuster strap

1шт.

19

A38411

DRY BATTERY

BATTERY - 12 volt

1шт.

20

K300235

BOLT

STUD - clamping, M6 x 250 MM (Standard battery)

2шт.

20

K306318

BOLT

STUD - clamping, M8 x 250 MM (Standard battery)

2шт.

20

K304313

STUD

STUD - clamping, M6 x 285 MM (Heavy duty battery)

2шт.

20

K306317

BOLT

STUD - clamping, M8 x 300 MM (Heavy duty battery)

2шт.

21

K947080

FRAME

CLAMP - battery

1шт.

22

K651777

WASHER

WASHER - 6 MM

2шт.

22

K626849

WASHER

WASHER - 8 M

2шт.

23

K651847

WASHER, LOCK

WASHER - lock, 6 MM

2шт.

23

K651848

WASHER

WASHER - lock, 8 MM

2шт.

24

K651744

NUT

NUT - wing, M6

2шт.

24

K651745

NUT

NUT - wing, M8

2шт.

25

K300281

BATTERY

BAR - guide, battery

1шт.

26

K627762

GROMMET

SPARE PART GROMMET - 3/8 inch

1шт.

27

K301215

BRACKET

BRACKET - battery support (See note A)

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT - M8 x 18 MM

4шт.

29

K651848

WASHER

WASHER - lock, 8 MM

4шт.

30

K300796

BAFFLE

BAFFLE AND SEATING PAD - battery

1шт.

30

K304602

PLATE

BAFFLE AND SEATING PAD - battery (See note B)

1шт.

31

K625017

CLIP

CLIP - retaining (See note A)

4шт.

32

K656827

BUTTON

RETAINER - baffle (See note B)

2шт.
