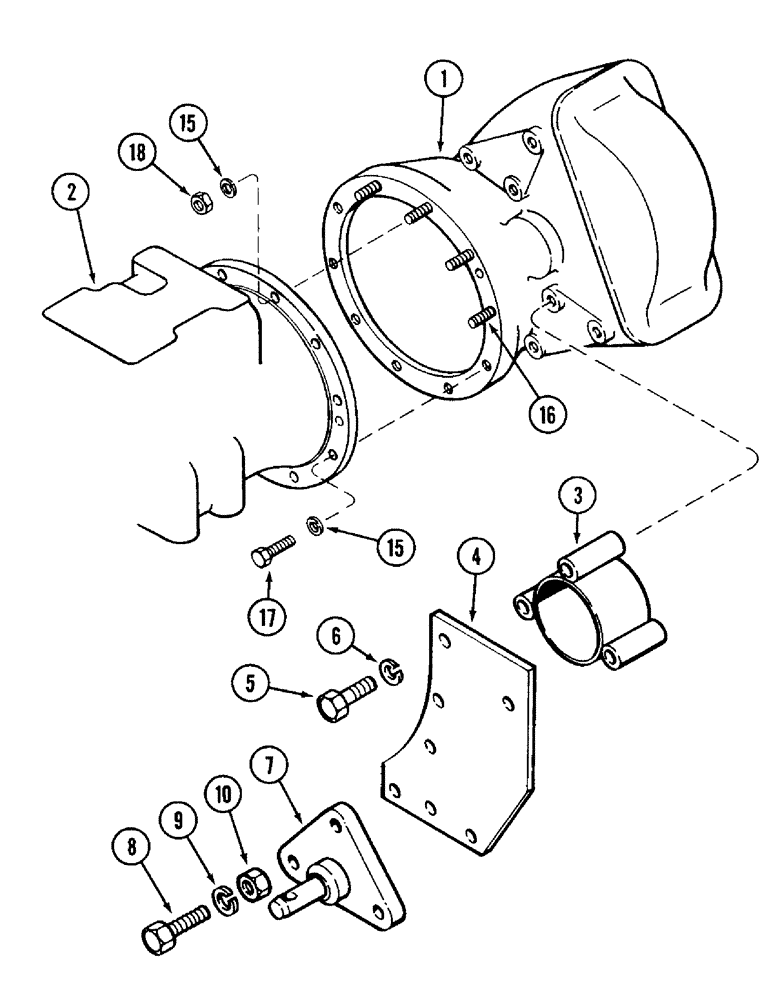

Запчасти Case IH 1290 (E-04) - REDUCTION HOUSING SUPPORT AND BRACKETS, LOW PROFILE SPECIAL (05) - REAR AXLE

1

REF

INSTRUCTION

HOUSING - reduction (Right shown, see Fig. E2-1)

2шт.

2

REF

INSTRUCTION

HOUSING - rear axle (See page E1-1)

1шт.

3

A165857

SUPPORT

EXTENSION - stabilizer support

2шт.

4

A147405

SUPPORT

- stabilizer bracket

2шт.

5

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/4 inch

6шт.

6

K626345

LOCK WASHER

WASHER - lock 1/2 inch

6шт.

7

K922662

PLATE

BRACKET - stabilizer

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

10

K608406

STUD

NUT - 1/2 inch NC hex

6шт.

15

A150672

WASHER

- mounting bolt and stud

20шт.

16

A164858

STUD

- mounting, 1/2 NC x 2-1/2 inch

8шт.

17

113-401

BOLT

- hex, 1/2 NC x 1-3/4 inch

12шт.

18

129-184

NUT,1/2"-13, G8

- hex, 1/2 inch NC

8шт.
