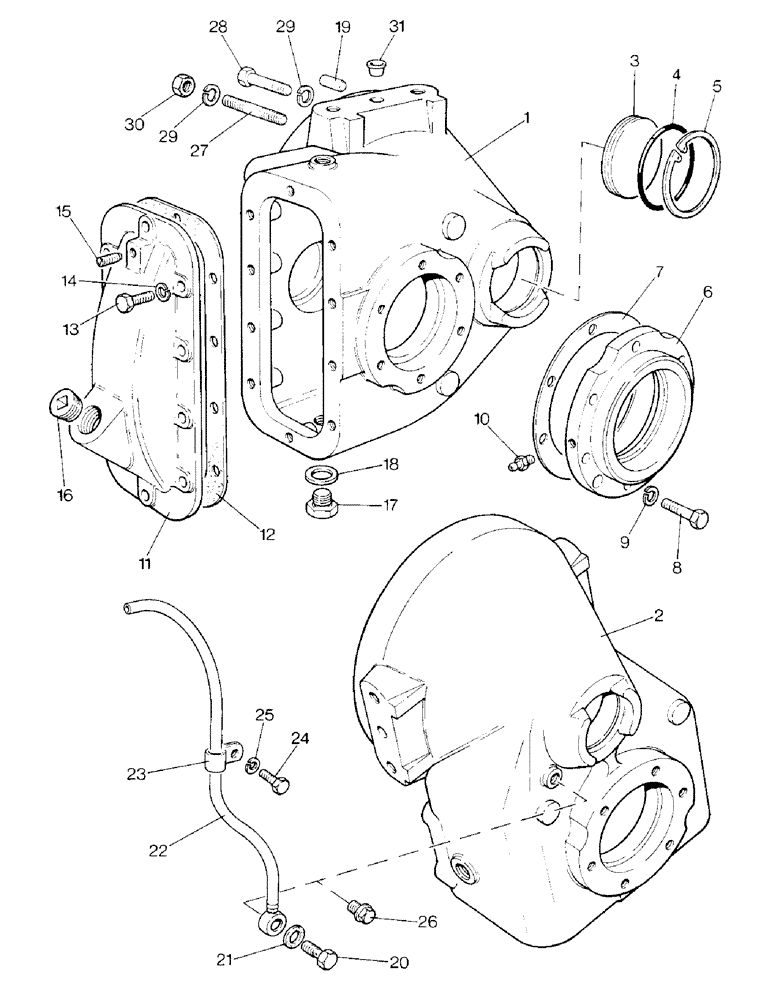

Запчасти Case IH 1290 (E-02) - FINAL DRIVE REDUCTION HOUSING AND COVERS (05) - REAR AXLE

1

K203976

HOUSING

- standard clearance

2шт.

2

K203978

HOUSING

- right-hand, high clearance

1шт.

2

K203977

HOUSING

- left-hand, high clearance

1шт.

3

K929045

COVER

- end, pinion bearing

2шт.

4

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 inch ID

2шт.

5

K13042

RING, SNAP

RING - snap, 3-1/4 inch, internal

2шт.

6

K944516

HOUSING

- oil seal, right-hand

1шт.

6

K944517

HOUSING

- oil seal, left-hand

1шт.

7

K902772

SHIM,.003" Thk

1шт.

7

K902773

SHIM,.006" Thk

1шт.

7

K902774

SHIM,.009" Thk

1шт.

7

K902775

GASKET

SHIM - 0.015 inch

1шт.

7

K947289

SHIM,56.36mm ID x 83.34mm OD x 0.76mm Thk

- 0.030 inch

1шт.

8

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1-1/2 inch

12шт.

9

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

12шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

11

K203979

COVER

- reduction housing (1290)

2шт.

11

K901556

COVER

- reduction housing (1390)

2шт.

12

K923221

GASKET,0.51mm Thk

- cover

2шт.

13

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

20шт.

14

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

20шт.

15

K947891

BREATHER

- 3/8 inch UNF, standard clearance

2шт.

15

K612900

SCREW

PLUG - 3/8 UNF x 1/2 inch, high clearance

2шт.

16

K12362

PLUG

- 1 inch BSP, tappered

2шт.

17

K623849

PLUG

- 1/2 inch BSP, flanged

2шт.

18

K15143

WASHER

- sealing, 7/8 inch

2шт.

19

K11482

PIN

DOWEL - 7/16 x 1-1/4 inch, case to rear axle

4шт.

20

K620360

BANJO BOLT

BANJO BOLT - 1/8 inch BSP (High clearance housing)

2шт.

21

K626521

SEALING WASHER

WASHER - fiber, 3/8 inch (High clearance housing)

4шт.

22

K946147

TUBE

BANJO AND TUBE - reduction case (High clearance housing)

2шт.

23

K621638

CLIP

- tube (High clearance housing)

4шт.

24

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 1/2 inch

4шт.

25

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

4шт.

26

K19591

PLUG

- 1/8 inch BSP, Case

2шт.

27

K600807

BOLT

STUD - 1/2 UNC x 2-1/8 inch (Tractor with rollbar)

8шт.

27

K608413

STUD

- 1/2 UNC x 2-1/2 inch (Tractor without rollbar)

6шт.

28

K600804

BOLT

- 1/2 UNC x 1-3/4 inch (Tractor with or without rollbar)

14шт.

29

K626345

LOCK WASHER

WASHER - lock, 1/2 inch (Tractor with or without rollbar)

20шт.

30

280431

NUT,1/2"-13, G5

6шт.

31

K628092

PLUG,Cap, .547" OD

- plastic, 1/2 inch

2шт.
