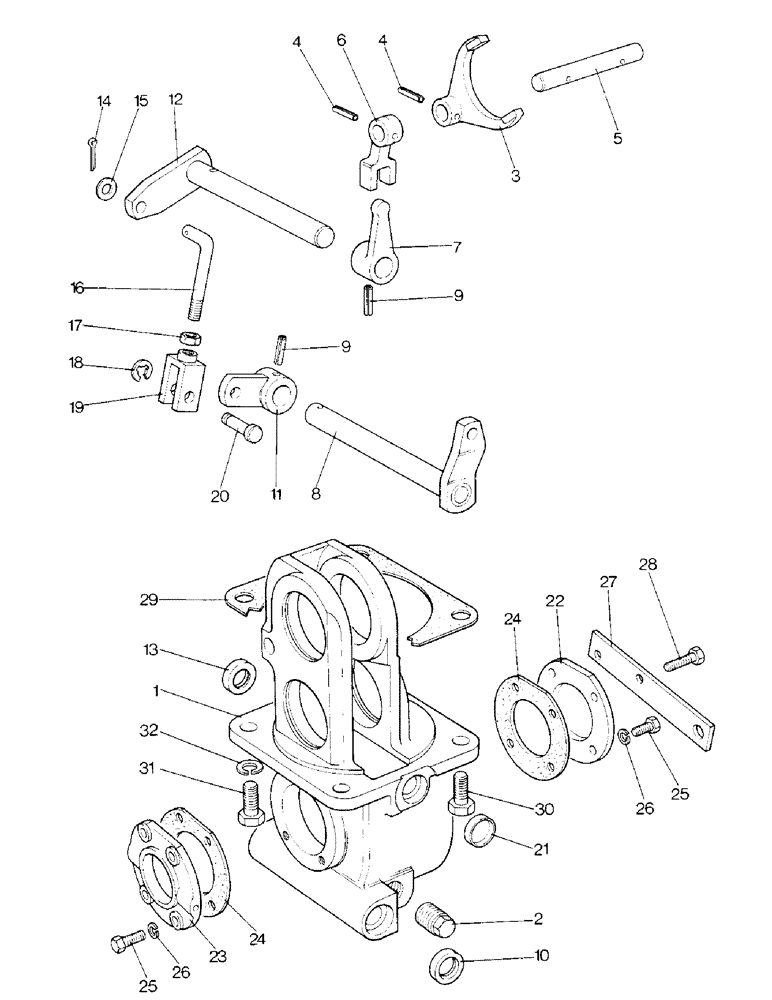

Запчасти Case IH 1290 (D-11) - TRANSFER GEARBOX, GEARS AND SELECTOR, MFD CARRARO AXLE (03) - POWER TRAIN

K205138

GEARBOX

ASSEMBLY - transfer (Carraro 111875) (Includes parts on Fig. D12-1), Includes Ref: 1 - 28

1шт.

1

K260754

HOUSING

CASE - transfer (Carraro 111663)

1шт.

2

A156873

PLUG, DRAIN,M22 x 1.5

(Carraro 92270) (Replaces K965397) M22 x 1.5

1шт.

3

K260263

SELECTOR

FORK - selector (Carraro 105807)

1шт.

4

K965842

PIN

- roll, 5 x 26 MM (Carraro 24437)

2шт.

5

K260743

SELECTOR

SHAFT - selector fork (Carraro 111999)

1шт.

6

K260265

SELECTOR

JAW - selector (Carraro 105806)

1шт.

7

K260266

SELECTOR

LEVER - selector (Carraro 106578)

1шт.

8

K260748

SHAFT

ASSEMBLY - bellcrank (Carraro 111827)

1шт.

9

K965376

SPLIT PIN/SAFETY PIN

PIN - roll, 6 x 35 MM (Carraro 24442)

1шт.

10

K965377

OIL SEAL

- oil (Carraro 25107)

2шт.

11

K260747

LEVER

- operating (Carraro 111829)

1шт.

12

K260744

SHAFT

ASSEMBLY - bellcrank (Carraro 111824)

1шт.

13

K965377

OIL SEAL

- oil (Carraro 25107)

1шт.

14

K19528

PIN

- cotter, 3/32 x 3/4 inch

1шт.

15

K19472

WASHER

- 3/8 inch

1шт.

16

K260746

ROD

- link (Carraro 111830)

1шт.

17

100016

NUT,M10 x 1.5, Cl 8

1шт.

18

K621562

RING, SNAP

RING - snap, 3/8 inch, external

1шт.

19

K260745

FORK

- shift (Carraro 85801)

1шт.

20

K260749

PIN

- clevis (Carraro 70533)

1шт.

21

K260751

CORE

PLUG - core (Carraro 112588)

1шт.

22

K965396

COVER

PLATE - rear (Carraro 89244)

1шт.

23

K965397

COVER

PLATE - front (Carraro 89275)

1шт.

24

K965398

GASKET

- end plates (Carraro 88830)

2шт.

25

K965359

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- M8 x 25 (Carraro 20781)

6шт.

26

K965360

LOCK WASHER,M8

WASHER - lock, 8 MM (Carraro 22856)

8шт.

27

K260750

CABLE

BRACKET - support, cable (Carraro 111860)

1шт.

28

K260753

SCREW

BOLT - bracket (Carraro 20786)

2шт.

29

K260755

GASKET

- transfer case (Carraro 111664)

1шт.

30

K260269

BOLT

BOLT - 5/8 inch UNC (Carraro 21475)

3шт.

31

K260276

PIN

BOLT - 5/8 inch UNC (Carraro 106594)

1шт.

32

K260268

LOCK WASHER,M16

WASHER - lock, 5/8 inch (Carraro 22864)

4шт.
