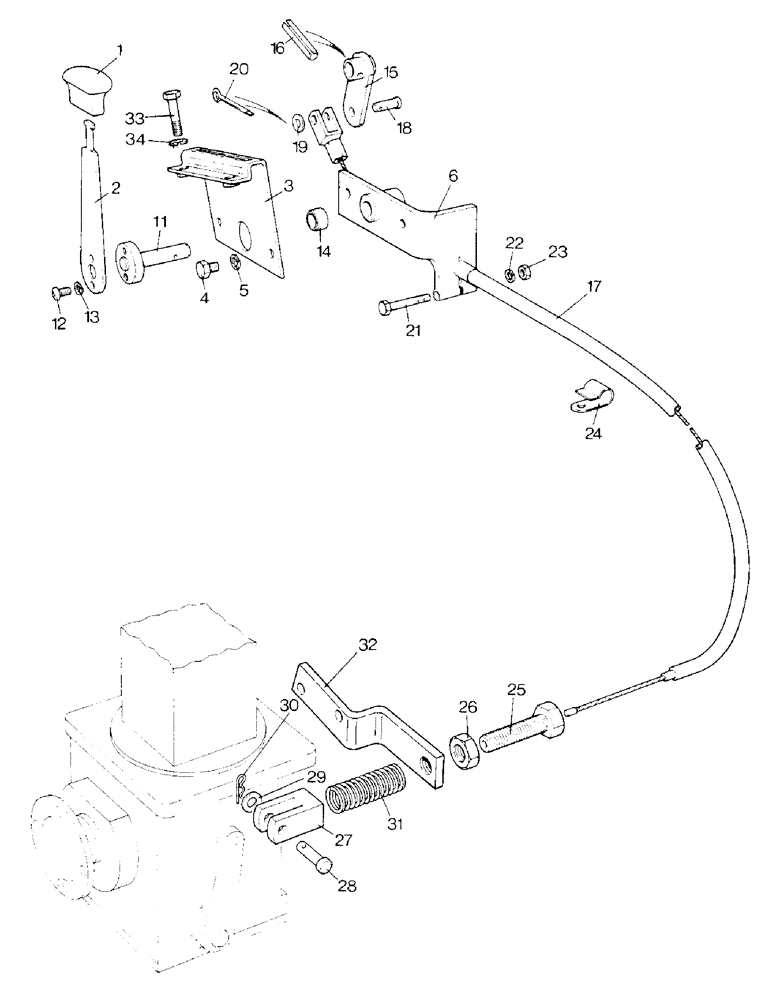

Запчасти Case IH 1290 (D-07) - MFD ENGAGEMENT LEVER, PRIOR TO 1290 P.I.N. 11056136, PRIOR TO 1390 P.I.N. 11131075 (03) - POWER TRAIN

1

K901738

KNOB

- lever

1шт.

2

K204911

SELECTOR

LEVER - hand, MFD selector

1шт.

3

K202676

PLATE

GATE - hand lever

1шт.

4

K602849

SCREW

BOLT - 5/16 UNC x 7/8 inch

2шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

6

K952255

BRACKET

- pivot

1шт.

11

K952257

SHAFT

- hand lever

1шт.

12

K605632

SCREW

- 1/4 UNC x 3/8 inch

2шт.

13

K626341

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

14

K628759

BUSHING

- pivot bracket

2шт.

15

K952260

LEVER

- operating

1шт.

16

K623740

SPLIT PIN/SAFETY PIN

PIN - roll, 3/16 x 7/8 inch

1шт.

17

K200983

CABLE

- inner and outer

1шт.

18

K625941

PIN

-, Serial Range: cable-lever

1шт.

19

K626682

WASHER

- 5/16 inch, cable pin

1шт.

20

K19528

PIN

- cotter, 3/32 x 3/4 inch

1шт.

21

K600154

BOLT

- 1/4 UNC x 1-3/4 inch

1шт.

22

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

23

K607043

NUT

- 1/4 inch UNC

1шт.

24

K15518

CLAMP

CLIP - cable

1шт.

25

K200610

NUT

ADJUSTER - cable

1шт.

26

425-1410

JAM NUT,Jam, 5/8"-11, G5

- lock, 5/8 inch UNC, adjuster

1шт.

27

K622207

FORK

- cable end

1шт.

28

K69984

SPLIT PIN/SAFETY PIN

PIN - 3/8 inch

1шт.

29

K19472

WASHER

- 3/8 inch

1шт.

30

K950865

CLIP

- 1/4 inch

1шт.

31

K625098

SPRING

- return

1шт.

32

K302689

BRACKET

- cable

1шт.

33

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

2шт.

34

K651848

WASHER

- lock, 8 MM

2шт.
