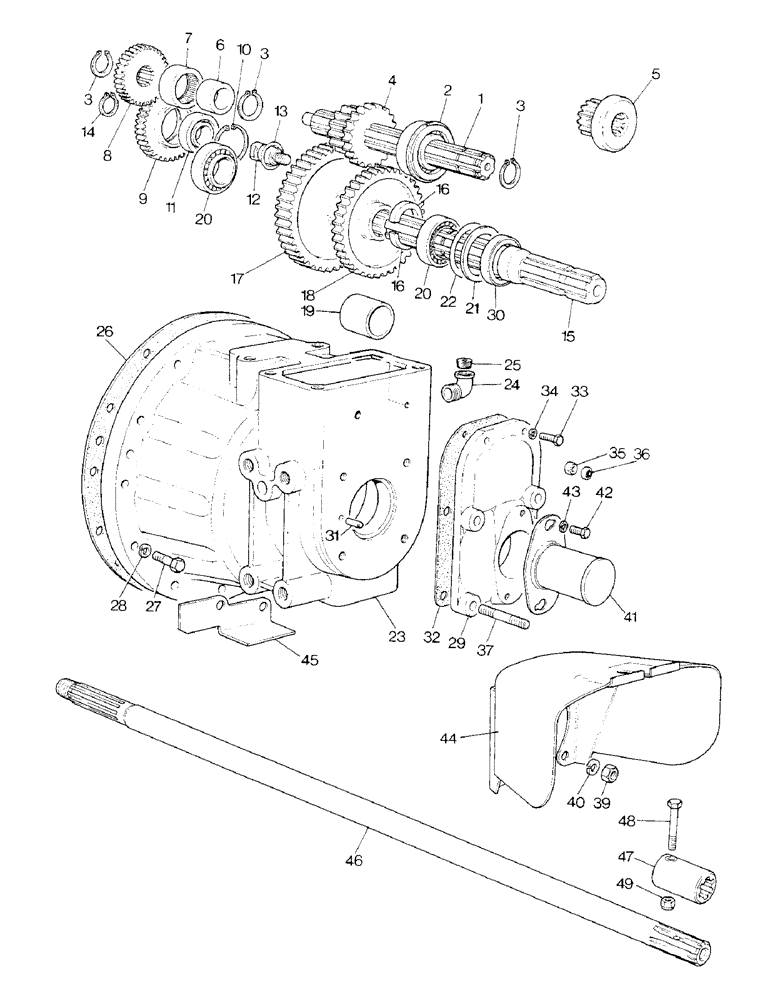

Запчасти Case IH 1290 (F-03) - POWER TAKE-OFF UNIT, 1290 TRACTOR (01) - POWER TAKE OFF

1

K906735

DRIVE SHAFT

DRIVESHAFT - PTO

1шт.

2

K15172

BALL BEARING,28.57mm ID x 77.79mm OD x 20.64mm W

BEARING - ball, with snap ring

1шт.

3

K621535

RING, SNAP

RING - snap, 1-3/64 inch, external

4шт.

4

K906688

GEAR

PINION - speed change, 13:19 teeth (Multi-Speed PTO)

1шт.

5

K921600

GEAR

PINION - speed change (Single-Speed PTO)

1шт.

6

K906693

RING RACE

RACE - inner, roller bearings

1шт.

7

K620266

NEEDLE BEARING

BEARING - needle roller

1шт.

8

K908094

GEAR

- drive, hydraulic pump, 29 teeth

1шт.

9

K923442

GEAR

- idler, hydraulic pump

1шт.

10

K621436

RING, SNAP

RING - snap, 62 MM, internal

2шт.

11

K620102

BEARING, BALL

BEARING - ball

1шт.

12

K923441

PIN

SHAFT - idler gear

1шт.

13

K626200

SHIM,.002" Thk

1шт.

13

K626201

SHIM,.003" Thk

1шт.

13

K626202

SHIM,.005" Thk

1шт.

13

K626203

SHIM,.010" Thk

1шт.

14

K11128

CIRCLIP

RING - snap, 1 inch, external

1шт.

15

K962826

SHAFT

ASSEMBLY - driven, Includes Ref: 16

1шт.

16

K923433

RING

HALVES - split

2шт.

17

K923434

GEAR

- low speed, 44 teeth

1шт.

18

K906689

GEAR

- high speed, 38 teeth (Multi-Speed PTO)

1шт.

19

K952132

BUSHING

SPACER - gear (Single-Speed PTO)

1шт.

20

K620046

BEARING

- taper, roller

2шт.

21

K923435

WASHER

RING - thrust

1шт.

22

K923436

SHIM

- 0.002 inch

1шт.

22

K923437

SHIM

- 0.003 inch

1шт.

22

K923438

SHIM

- 0.005 inch

1шт.

22

K923439

SHIM

- 0.010 inch

1шт.

22

K923440

SHIM

- 0.020 inch

1шт.

23

K948929

CASE

HOUSING - PTO (Prior to PIN 11054682)

1шт.

23

K957400

PTO

HOUSING - PTO (PIN 11054682 and after)

1шт.

24

K622127

FITTING

ELBOW - 1 inch BSP (Mutli-Speed PTO)

1шт.

25

K12362

PLUG

- 1 inch BSP

1шт.

26

K205398

GASKET

- housing

1шт.

27

K600605

BOLT

- 7/16 UNC x 1-7/8 inch

11шт.

28

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

11шт.

29

K906686

COVER

- end

1шт.

30

K11119

OIL SEAL

- oil, 1-5/8 x 2-1/2 x 5/8 inch

1шт.

31

K25360

PIN

DOWEL - 1/4 x 9/16 inch

2шт.

32

K924217

GASKET

- end cover

1шт.

33

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

34

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

35

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

1шт.

36

K15498

SEALING WASHER

WASHER - sealing, 5/16 inch

1шт.

37

K608311

STUD

- 7/16 UNC x 2-5/16 inch

4шт.

39

280717

NUT,7/16"-14, G5

4шт.

40

K626344

WASHER, LOCK

WASHER - lock, 7/16 inch

4шт.

41

K909111

COVER

- PTO shaft

1шт.

42

K602840

SCREW

BOLT - 5/16 UNC x 1/2 inch

2шт.

43

K626682

WASHER

- 5/16 inch

2шт.

44

K906893

GUARD

- PTO shaft

1шт.

45

K928304

SHIM

GUARD - hydraulic filter switch

1шт.

46

K200749

SHAFT

- cardan

1шт.

47

K89181

COUPLING, BREAK AWAY

COUPLING - shaft

1шт.

48

K600009

BOLT

- 1/4 UNC x 1-7/8 inch

1шт.

49

K607300

NUT

- self-locking, 1/4 inch UNC

1шт.
