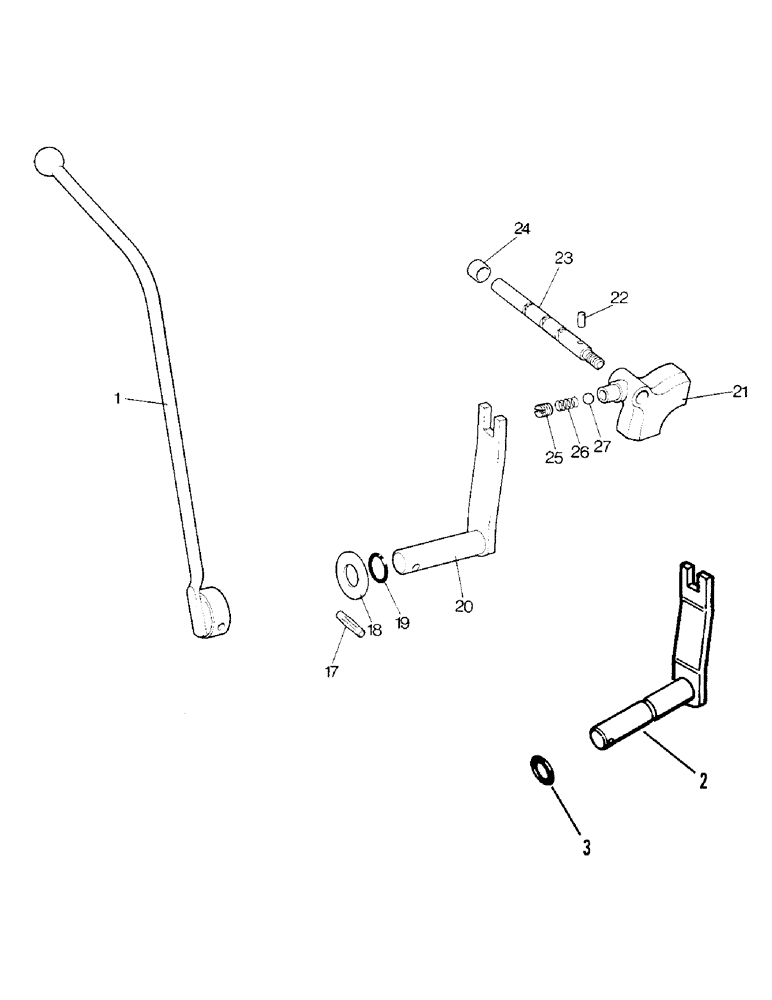

Запчасти Case IH 1290 (F-01) - CONTROLS FOR POWER TAKE-OFF, SINGLE AND MULTI-SPEED, 1290 TRACTOR (01) - POWER TAKE OFF

1

K202485

LEVER

- hand, PTO operating

1шт.

2

K206520

LEVER

SHAFT - lever, selector (PIN 11054682 and after)

1шт.

3

K623557

O-RING

- lever shaft

1шт.

17

K623726

PIN

- 1/4 x 1-1/2 inch

1шт.

18

K916582

SHIM

- lever

1шт.

19

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

- 3/4 inch ID

1шт.

20

K916575

SELECTOR

SHAFT - lever, selector (Prior to PIN 11054682) (Order ref 2 and 3)

1шт.

21

K906701

SELECTOR

FORK - selector

1шт.

22

K906700

PIN

- retaining

1шт.

23

K942469

SELECTOR

ROD - selector

1шт.

24

K921603

BUSHING

SPACER - selector rod

1шт.

25

K606021

SCREW

- 5/16 inch

1шт.

26

K24831

SPRING

- detent

1шт.

27

K17063

BALL

- steel, 1/4 inch

1шт.
