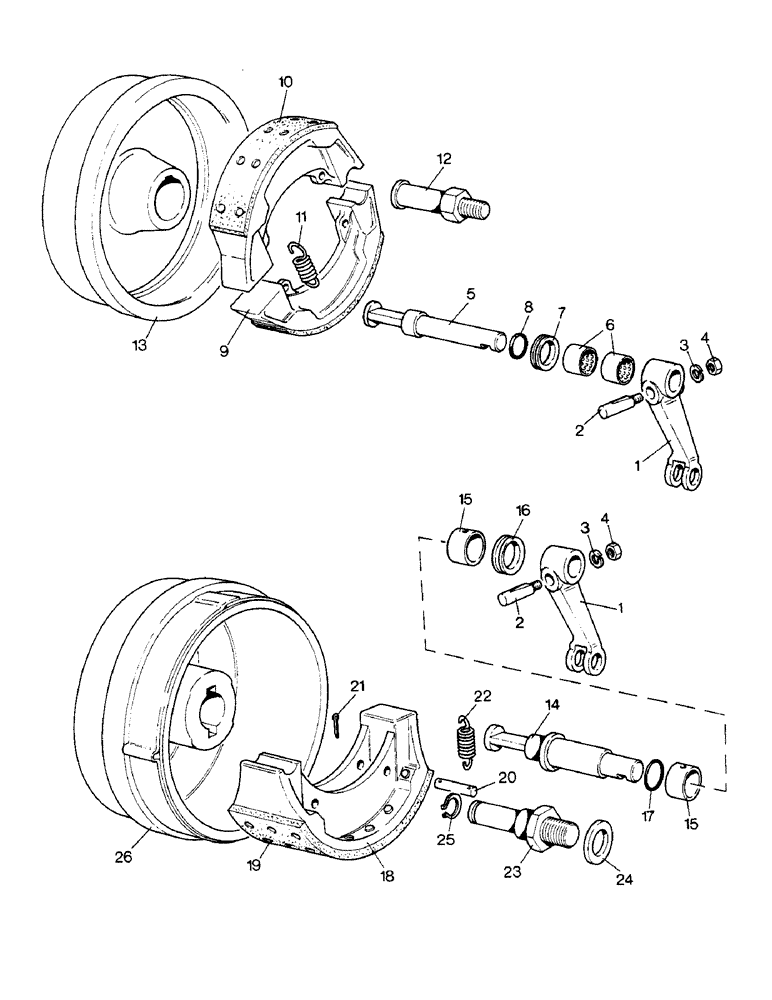

Запчасти Case IH 1290 (J-02) - BRAKE SHOES AND DRUMS (5.1) - BRAKES

1

K928589

LEVER

- cam

2шт.

2

K609425

LARGE PIN

PIN - lock, 3/8 inch UNC

2шт.

3

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

4

280136

NUT,3/8"-16, G8

2шт.

5

K956734

BRAKE

CAMSHAFT - brake, left-hand (1290)

1шт.

5

K956735

BRAKE

CAMSHAFT - brake, right-hand (1290)

1шт.

K30835

BUSHING

- axle housing (1290)

4шт.

7

K85417

SEAL

- dirt (1290)

2шт.

8

K654760

O-RING,22.5MM ID x 3MM Width

- 1 inch ID (1290)

2шт.

9

K921494

BRAKE SHOE

SHOE ASSEMBLY - brake, with lining (1290), Includes Ref: 10

4шт.

10

K962266

KIT

LINING - brake (4) and rivets (1290)

1шт.

11

K63462

SPRING

- brake shoes (1290)

4шт.

12

K956736

PIN

- fulcrum (1290)

2шт.

13

K917989

BRAKE

DRUM - brake (1290)

2шт.

14

K954714

BRAKE

CAMSHAFT - brake, left-hand (1390)

1шт.

14

K954715

BRAKE

CAMSHAFT - brake, right-hand (1390)

1шт.

15

K621406

BUSHING

- axle case (1390)

4шт.

16

K204285

SEAL

- dirt (1390)

2шт.

17

K15264

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-1/4 inch ID (1390)

2шт.

18

K920442

SHOE

ASSEMBLY - brake, with lining (1390), Includes Ref: 19

4шт.

19

K964542

KIT

LINING - brake (4) and rivets (1390)

1шт.

20

K920446

PIN

- spring anchor (1390)

8шт.

21

K11933

PIN

- cotter, 1/8 x 5/8 inch (1390)

16шт.

22

K624930

SPRING

- brake shoes (1390)

4шт.

23

K954710

PIN

- fulcrum (1390)

2шт.

24

K626684

WASHER

- 7/8 inch (1390)

2шт.

25

K34454

RING, SNAP

RING - snap, 7/8 inch, external (1390)

2шт.

26

K921829

BRAKE DRUM

DRUM - brake (1390)

2шт.
