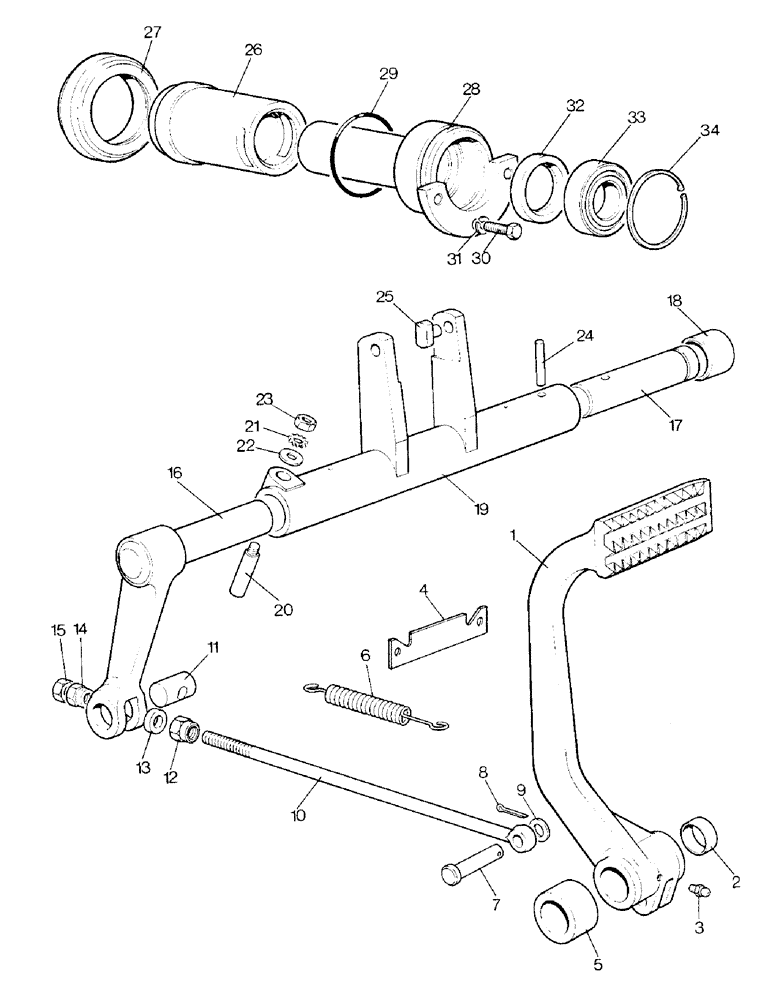

Запчасти Case IH 1290 (C-04) - INDEPENDENT CLUTCH RELEASE MECHANISM (03.1) - CLUTCH

1

K965876

CLUTCH

PEDAL ASSEMBLY - clutch, Includes Ref: 2

1шт.

2

K947343

BUSHING

- pedal

2шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

4

K300300

SHIM

STOP - clutch pedal

1шт.

5

K627223

BUSHING

SPACER - pedal

1шт.

6

K624963

SPRING

- pedal return

1шт.

7

K625968

PIN

- 3/8 inch x 1-5/8 inch

1шт.

8

K19528

PIN

- cotter

1шт.

9

K19472

WASHER

- 3/8 inch

1шт.

10

K200394

ROD

- pedal to stub shaft

1шт.

11

K14744

PIN

- 3/4 x 1-1/2 inch

1шт.

12

232-1416

LOCK NUT,3/8"-16, GC

NUT - self-locking, 3/8 inch UNC

1шт.

13

K205088

RUBBER

WASHER - rubber, 3/8 inch

1шт.

14

K607521

NUT

- adjusting, 3/8 inch UNC

1шт.

15

280136

NUT,3/8"-16, G8

1шт.

16

K200657

CLUTCH

LEVER - shaft, stub, left-hand

1шт.

17

K201283

SHAFT

- stub, right-hand

1шт.

18

K628753

BUSHING

- main frame

2шт.

19

K200323

CLUTCH

FORK - clutch

1шт.

20

K609425

LARGE PIN

PIN - locking, 3/8 inch

1шт.

21

K11522

WASHER

- 3/8 inch, Shakeproof

1шт.

22

K19472

WASHER

- 3/8 inch

1шт.

23

280136

NUT,3/8"-16, G8

1шт.

24

K623726

PIN

- 1/4 x 1-1/2 inch

1шт.

25

K84748

TRUNNION

PIN - trunnion, clutch fork

2шт.

26

K915836

BEARING CARRIER,Clutch

CARRIER - release bearing (4 7/8" Long)

1шт.

27

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

BEARING - release

1шт.

28

K200333

SHAFT

SNOUT - support, bearing carrier

1шт.

29

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 3 inch ID

1шт.

30

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

3шт.

31

K19481

SPRING WASHER

WASHER - lock, 5/16 inch UNC

3шт.

32

K623430

OIL SEAL

- oil, 45 x 65 x 8 MM

1шт.

33

K620204

BALL BEARING

BEARING - ball

1шт.

34

K621430

CIRCLIP

RING - snap, 75 MM, internal

1шт.
