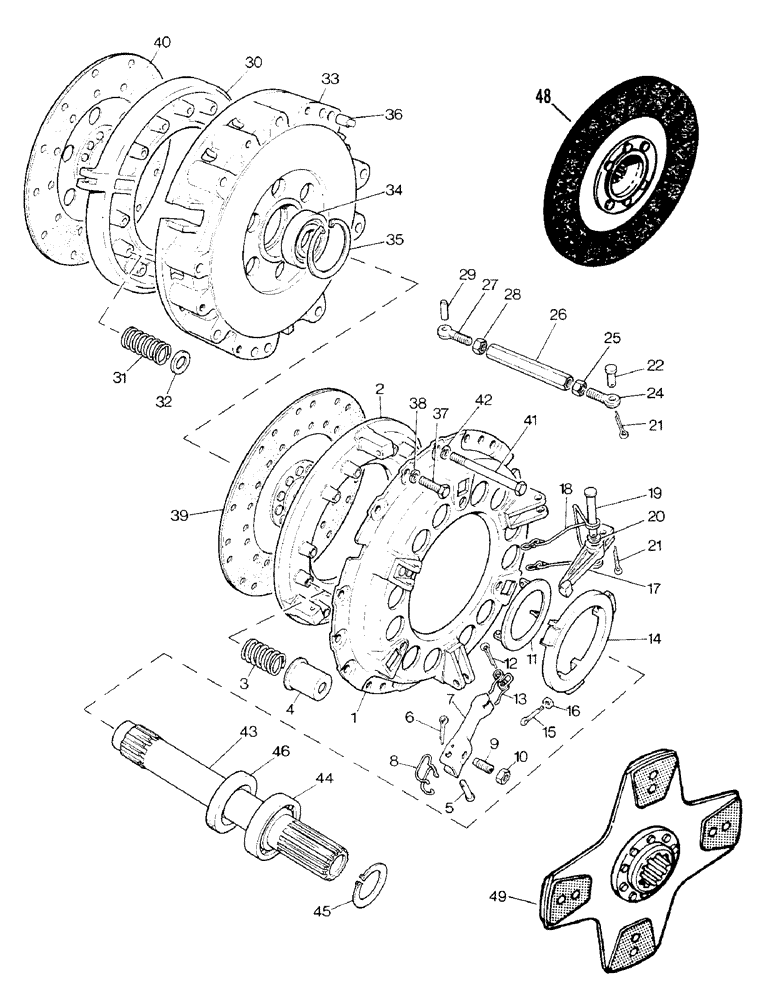

Запчасти Case IH 1290 (C-02) - INDEPENDENT CLUTCH ASSEMBLY (03.1) - CLUTCH

K957435

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY - transmission (replaces K962949) (does not include k915827), Includes Ref: 1 - 40

1шт.

K963523

CLUTCH

COVER ASSEMBLY - clutch, Includes Ref: 1- 12

1шт.

1

K962809

COVER

- clutch

1шт.

2

K962805

PLATE

- pressure, transmission

1шт.

3

K625262

SPRING

- thrust, violet/black, standard duty

12шт.

3

K625211

SPRING

- thrust, buff/black, heavy duty

12шт.

4

K919848

CUP

- thrust spring

12шт.

5

K962806

PIN

- release lever

3шт.

6

132-380

COTTER PIN,3/32" x 3/4"

PIN - cotter, 3/32 x 1/2 inch (replaces K19527)

3шт.

7

K962948

LEVER

- release, transmission

3шт.

8

K923989

SPRING

- anti-rattle

3шт.

9

K962597

SCREW

- adjusting, 3/8 inch UNF (Set of three)

1шт.

10

K617052

NUT

- lock, 3/8 inch UNF

3шт.

11

K962803

PLATE

- release levers

1шт.

12

K19528

PIN

- cotter, 3/32 x 3/4 inch

3шт.

13

K962956

SPRING

CLIP - spring, Serial Range: levers-plate

3шт.

14

K919849

PLATE

- release levers

1шт.

15

K11263

PIN

- cotter, 5/32 x 1-3/8 inch

3шт.

16

K15522

WASHER

- split pin

6шт.

17

K923846

LEVER

- release, PTO

3шт.

18

K962596

SPRING

- anti-rattle

3шт.

19

K625944

PIN

- release lever

3шт.

20

K626682

WASHER

- lever pin

3шт.

21

K19527

PIN

- cotter, 3/32 x 1/2 inch

6шт.

22

K625947

PIN

- release lever

3шт.

24

K923842

SCREW

EYE BOLT - 3/8 inch UNF left-hand thread

3шт.

25

K617282

SPECIAL NUT

- lock, 3/8 inch UNF left-hand thread

3шт.

26

K923844

TURNBUCKLE

- 3/8 inch UNF

3шт.

27

K923843

SCREW

EYE BOLT - 3/8 inch UNF

3шт.

28

K617588

SPECIAL NUT

- lock, 3/8 inch UNF

3шт.

29

K962598

PIN

- eye bolt

3шт.

30

K923845

PLATE

- pressure, PTO

3шт.

31

K625209

SPRING

- red thrust, PTO

12шт.

32

K626735

WASHER

- insulating, thrust springs

12шт.

33

K915830

HOUSING

- separator, clutch

1шт.

34

K620086

BEARING

- ball, separator housing

1шт.

35

K13053

RING, SNAP

RING - snap, 72 MM, internal

1шт.

36

K621837

PIN

DOWEL - locating

2шт.

37

K612803

SCREW

BOLT - 5/16 UNF x 3/4 inch

6шт.

38

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

39

K919861

TRANSMISSION

PLATE ASSEMBLY - 11 inch driven, transmission (Order A48246, Fig. C1-3), Includes Ref: 40

1шт.

K962961

CLUTCH

FACINGS - 11 inch, F30C and rivets

1шт.

40

K915827

CLUTCH & DISC ASSY

PLATE ASSEMBLY - driven, 11 inch, PTO

1шт.

K962052

CLUTCH

FACINGS - 11 inch, F30C and rivets

1шт.

41

K600220

BOLT

- 5/16 UNC x 3-3/4 inch, Serial Range: housing-flywheel

9шт.

42

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

9шт.

43

K205592

SHAFT

DRIVESHAFT - clutch (Replaces K956646)

1шт.

44

K620204

BALL BEARING

BEARING - ball, clutch driveshaft

1шт.

45

K12922

RING, SNAP

RING - snap, 1-3/4 inch, external

2шт.

46

K623430

OIL SEAL

- oil, 45 x 65 x 8 MM

1шт.

48

A48244

PLATE

- 11 inch driven, PTO (Replaces K915827)

1шт.

48

A48244R

REMAN-CLUTCH PLATE

1290, 1390

1шт.

48

A48244C

CORE-CLUTCH PLATE

Return Number

1шт.

A48245

FACING

S - 11 inch, and rivets

1шт.

49

K206365

CLUTCH DISC

PLATE - clutch, 11 inch metallic

1шт.
