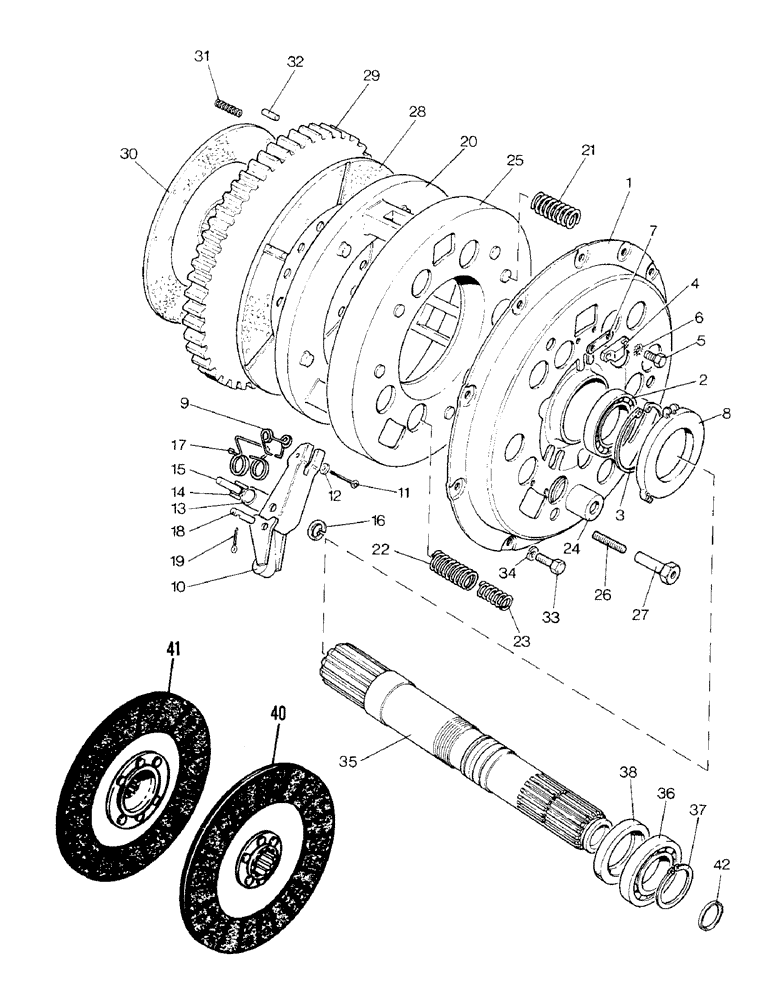

Запчасти Case IH 1290 (C-01) - CONTINUOUS CLUTCH ASSEMBLY (03.1) - CLUTCH

K962822

CLUTCH

ASSEMBLY - transmission, Includes Ref: 1 - 27

1шт.

1

K917999

COVER

- outer

1шт.

2

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball

1шт.

3

K89326

RING, SNAP

RING - snap, 3-1/8 inch, internal diameter

1шт.

4

K900257

PAD

- adjusting, release lever

3шт.

5

K616501

SCREW

BOLT - 1/4 UNC x 1/2 inch

6шт.

6

K900279

WASHER

- Shakeproof 1/4 inch

6шт.

7

K900258

SHIM,.002" Thk

1шт.

7

K901723

SHIM,.003" Thk

1шт.

7

K904138

SHIM,.010" Thk

1шт.

7

K904139

SHIM,.020" Thk

1шт.

8

K900268

PLATE

- release levers

1шт.

9

K900267

RETAINER

- lever plate

3шт.

10

K900275

LEVER

- release, clutch

3шт.

These are packaged three to a box, because if only one is changed, it causes uneven wear. All three should be changed.

1шт.

11

K900278

PIN

- cotter, release lever

3шт.

12

K900280

WASHER

- cotter pin

6шт.

13

K900264

ROLLER

- release lever

3шт.

14

K900273

NEEDLE

ROLLER - needle, release lever

57шт.

15

K900265

PIN

- release lever roller

3шт.

16

K900274

RING, SNAP

RING - snap, lever pin

6шт.

17

K961128

SPRING

- anti-rattle

3шт.

18

K900266

PIN

- release lever pivot

3шт.

19

K19527

PIN

- cotter, pivot pin

3шт.

20

K961046

PLATE, THRUST

PLATE - pressure, clutch

3шт.

21

K902514

SPRING

- thrust, PTO (Pink)

6шт.

22

K928922

SPRING

- thrust, transmission, outer (Red)

6шт.

23

K902513

SPRING

- thrust, transmission, inner (Brown)

6шт.

24

K900256

SPRING

CUP - spring

12шт.

25

K918606

COVER

- inner

1шт.

26

K918607

SCREW

- adjusting, 5/16 inch UNF

3шт.

27

K918608

NUT

- lock, 5/16 inch UNF, special

3шт.

28

K942507

CLUTCH

PLATE ASSEMBLY - driven, transmission, 11 inch (Order A48246) (1290)

1шт.

28

1539024C1R

REMAN-CLUTCH DISC

1290,1390, Both 1/1/80 - 12/31/83, Reman For New P/N K942507

1шт.

28

1539024C1C

CORE-CLUTCH DISC

Return Number

1шт.

K962961

CLUTCH

FACINGS - 11 inch F30C and rivets (1290)

1шт.

28

K957254

CLUTCH & DISC ASSY

PLATE ASSEMBLY - driven, transmission, 11 inch (Order A48246) (1390)

1шт.

K260513

FACING

S - 11 inch Raybestos (1390)

1шт.

29

K906446

PLATE, THRUST

PLATE - separator, clutch

1шт.

30

K915827

CLUTCH & DISC ASSY

PLATE ASSEMBLY - driven, PTO, 11 inch (Order A48244)

1шт.

K962052

CLUTCH

FACINGS - 11 inch F30C and rivets

1шт.

31

K13226

SPRING

- flywheel

3шт.

32

K621838

PIN

DOWEL - 5/16 - 7/16 x 1-1/8 inch

2шт.

33

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

9шт.

34

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

9шт.

35

K205593

SHAFT

DRIVESHAFT - clutch

1шт.

36

K620204

BALL BEARING

BEARING - ball, clutch driveshaft

1шт.

37

K12922

RING, SNAP

RING - snap, 1-3/4 inch, external

2шт.

38

K623430

OIL SEAL

- oil, 45 x 65 x 8 MM

1шт.

40

A48246

PLATE

ASSEMBLY - driven, transmission, 11 inch (Replaces K942507) (1290)

1шт.

A48247

FACINGS - 11 inch and rivets (1290)

1шт.

41

A48244

PLATE

ASSEMBLY - driven, PTO, 11 inch (Replaces K915827)

1шт.

41

A48244R

REMAN-CLUTCH PLATE

1290, 1390

1шт.

41

A48244C

CORE-CLUTCH PLATE

Return Number

1шт.

A48245

FACING

S - 11 inch and rivets

1шт.

42

K623634

SEAL

RING - sealing, 1-1/8 inch ID

1шт.

43

K206365

CLUTCH DISC

PLATE - clutch, 11 inch metallic

1шт.
