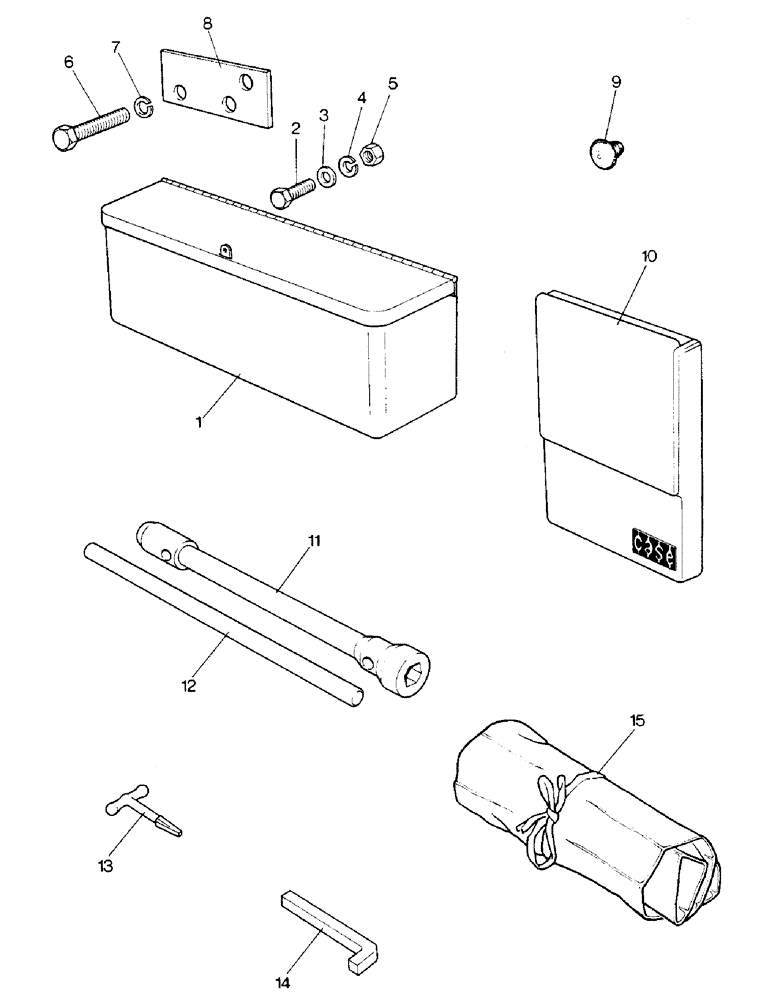

Запчасти Case IH 1290 (V-04) - TOOLS AND TOOL BOX (18) - MISCELLANEOUS

1

K203000

TOOL

BOX - tractor without roll bar

1шт.

1

K203620

SPARE PART

TOOL BOX - tractor with roll bar

1шт.

2

K602982

SCREW,3/8" - 16 x 3/4", Gr S

BOLT - 3/8 UNC x 3/4 inch

2шт.

3

K19472

WASHER

- 3/8 inch

2шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

5

280136

NUT,3/8"-16, G8

Tool box 3/8"-16, G8

2шт.

6

K603304

SCREW

BOLT - 5/8 UNC x 1-1/4 inch

2шт.

7

K19485

WASHER

- lock, 5/8 inch

2шт.

8

K946776

PLATE

- clamping, tool box

1шт.

9

K628010

PLUG

- plastic, 10 MM, left-hand fender

4шт.

10

A141933

BOX

- operators manual

1шт.

A162364

FASTENER

- tool box

2шт.

11

K946622

KEY

WRENCH - 1 inch - 1-5/16 A/F, wheel nuts

1шт.

12

K948095

CLEVIS PIN

BAR - tool

1шт.

13

K946448

GRIP

KEY - engine cover lock

1шт.

1290 - Prior to P.I.N. 11054201. 1390 - prior to P.I.N. 11127048

1шт.

14

K39426

OPEN END WRENCH

WRENCH - transmission filler plug

1шт.

15

K933573

TOOL KIT - tractor (UK5118)

1шт.
