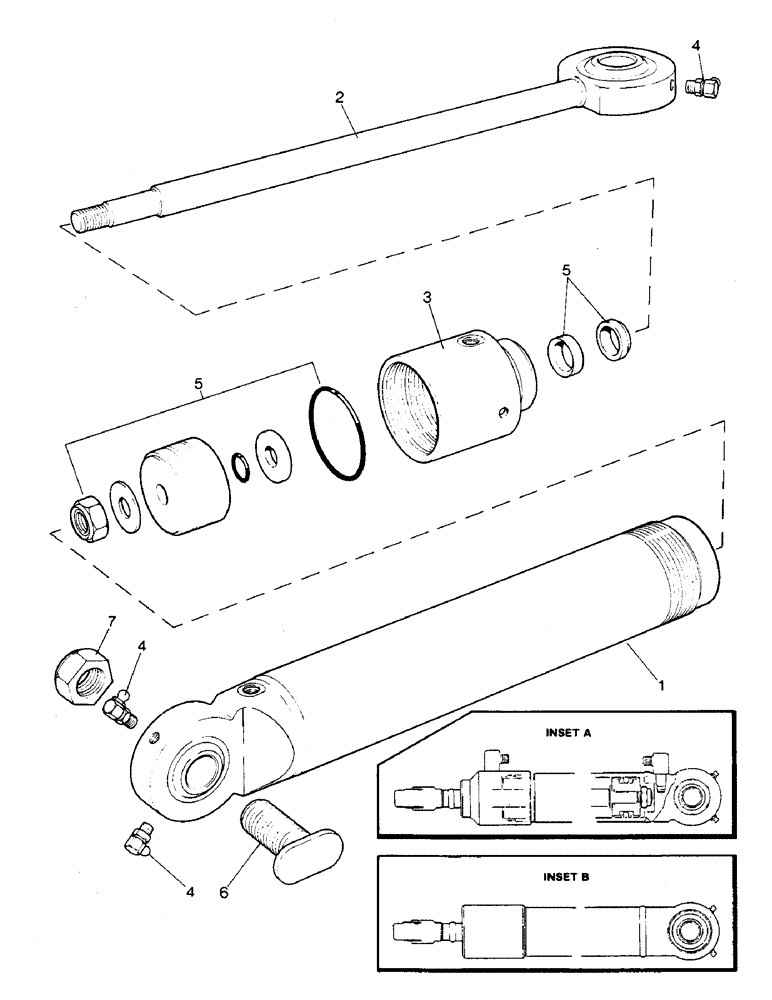

Запчасти Case IH 1290 (H-10) - STEERING CYLINDER, MFD CARRARO FRONT AXLE (13) - STEERING SYSTEM

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY - steering (Carraro 104773), Includes Ref: 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - steering, 60 MM OD

1шт.

2

K260529

PISTON

ROD - piston (Carraro 43441) (See inset A)

1шт.

2

K261654

ROD

- piston (Carraro 43493) (See inset B)

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

4

K260531

FITTING

- grease, M8, angled (Carraro 24259)

3шт.

5

K260530

GASKET KIT

KIT - seals (Carraro 43439) (See inset A)

1шт.

5

K261653

SEAL

KIT - seals (Carraro 43484) (See inset B)

1шт.

6

K260527

PIN

BOLT - M22 x 70 MM, special (Carraro 110771)

2шт.

7

K260528

LOCK NUT

- M22, self-locking (Carraro 22443)

2шт.
