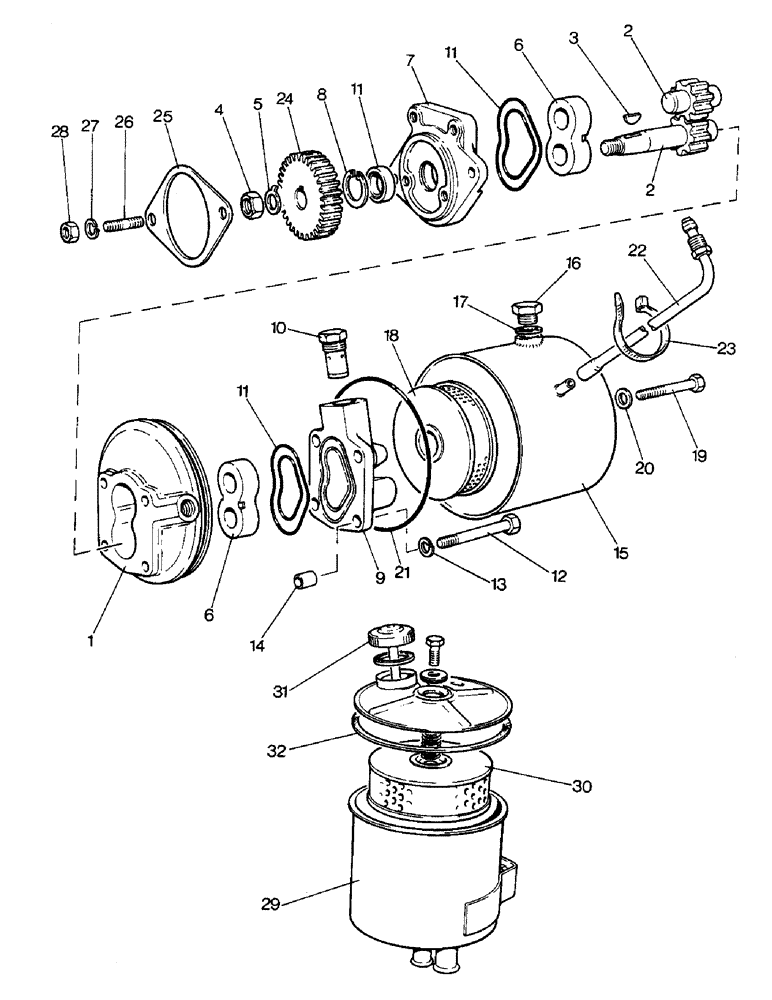

Запчасти Case IH 1290 (H-07) - STEERING PUMP AND RESERVOIR (13) - STEERING SYSTEM

1

K203724

PUMP

AND RESERVOIR ASSEMBLY - steering, with separate breather

1шт.

1

K957318

PUMP

AND RESERVOIR ASSEMBLY - with intergal breather, Includes Ref: 2 - 21

1шт.

K964815

GEAR

KIT - rotor, Includes Ref: 2 - 5

1шт.

2

K964934

GEAR

ROTOR - pump, set of 2

1шт.

3

K19604

KEY

- Woodruff no. 405

1шт.

4

425-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16 inch UNF

1шт.

5

K626380

WASHER

- tab, gear

1шт.

6

K962189

BEARING

- pump

2шт.

7

K261642

FLANGE

- mounting (Replaces K964925)

1шт.

8

K262644

RING - snap, 13/16 inch (Replaces K962097)

1шт.

9

K964923

COVER

- pump body

1шт.

10

K205561

VALVE

- relief, 1100 PSI

1шт.

10

K261640

VALVE

- relief, 1000 PSI (Replaces K964932)

1шт.

11

K964935

SEAL

KIT - seals and o-rings

1шт.

12

K9657769

BOLT - 3/8 UNC x 3-1/8 inch (Replaces K964921 and K964769)

4шт.

13

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

14

K964920

PIN

DOWEL - ring

2шт.

15

K260914

RESERVOIR

ASSEMBLY - for pump K203724

1шт.

15

K261063

RESERVOIR

ASSEMBLY - for pump K957318 (Replaces K260582), Includes Ref: 16 -18

1шт.

16

K623825

PLUG

- 1/2 inch BSP

1шт.

17

K261643

WASHER

- sealing, plug (Replaces K626769)

1шт.

18

NSS

NOT SOLD SEPARAT

ELEMENT - filter (See note A) (Order K964931)

1шт.

18

K964954

FILTER

ELEMENT - filter (See note B) (Replaces K964931)

1шт.

19

K965770

BOLT

- 5/16 UNC x 2-1/4 inch (Replaces K964930)

1шт.

20

K964928

SEAL

WASHER - sealing, 5/16 inch

1шт.

21

K965217

RING

- sealing, Serial Range: reservoir-pump

1шт.

22

K204271

PIPE

TUBE - breather

1шт.

23

K621734

CABLE

CLIP - tube

1шт.

24

K945098

PINION

GEAR - 28 teeth

1шт.

25

K919729

GASKET,0.76mm Thk

- pump

1шт.

26

K608161

STUD

- 5/16 UNC x 1 inch

2шт.

27

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

2шт.

29

K203699

RESERVOIR

ASSEMBLY - steering, Includes Ref: 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT - filter (Order K964931)

1шт.

31

K260852

CAP

AND DIPSTICK - filler

1шт.

32

K960725

GASKET

RING - seal

1шт.
