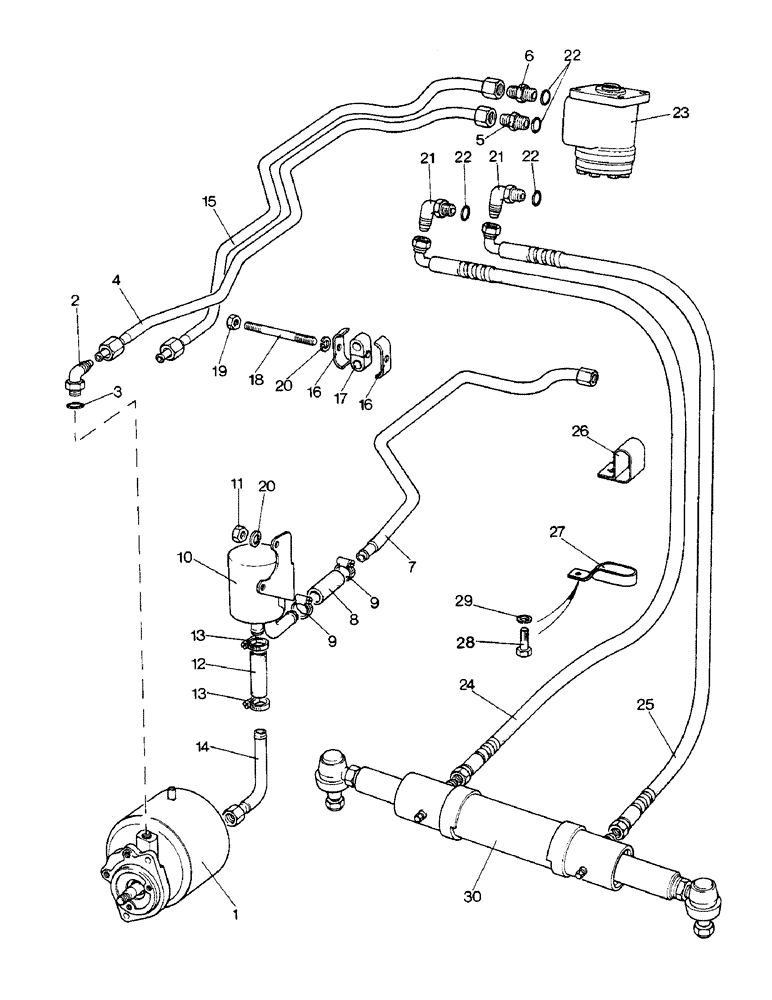

Запчасти Case IH 1290 (H-04) - HYDROSTATIC POWER STEERING, MFD DAVID BROWN FRONT AXLE (13) - STEERING SYSTEM

1

K957318

PUMP

ASSEMBLY - steering, see Fig. H7-1

1шт.

2

K622110

FITTING

ELBOW - 9/16 inch UNF, pump outlet

1шт.

3

K623649

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

- 7/16 inch ID

1шт.

4

K201661

PIPE,0.625" DIA

TUBE - pump outlet

1шт.

5

K626062

FITTING

UNION - 3/4 - 7/8 inch UNF

2шт.

1290 - prior to P.I.N. 11051376. 1390 prior to P.I.N. 11121676

1шт.

5

K203639

VALVE

- no return, inlet

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

6

K626062

FITTING

UNION - 3/4 - 7/8 inch UNF

2шт.

7

K204349

PIPE

TUBE - pump return

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

8

K626809

HOSE

- return connector, 1/2 x 2-5/8 inch

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

9

K622025

CLAMP

CLIP - hose (Order 214-254)

2шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

10

K302508

TANK

RESERVOIR - steering fluid

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

11

280136

NUT,3/8"-16, G8

2шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

12

K204350

HOSE

- return connector, 1/2 x 3 inch

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

13

K622024

CLAMP

CLIP - hose (Order 214-253)

2шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

14

K204351

PIPE,0.625" OD x 4.5, 3.187" L

TUBE - pump inlet

1шт.

1290 - P.I.N. 11051376 and after. 1390 - P.I.N. 11121676 and after

1шт.

15

K201662

PIPE

TUBE - pump return

1шт.

1290 - prior to P.I.N. 11051376. 1390 prior to P.I.N. 11121676

1шт.

16

K951982

SHIM

CLAMP - tube

2шт.

17

K951993

SLEEVE

- clamp

2шт.

18

K201667

STUD

- special, 3/8 UNC x 4-1/16 inch

1шт.

19

280136

NUT,3/8"-16, G8

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

1шт.

21

K622114

FITTING

ELBOW - 3/4 inch UNF

2шт.

22

K623591

O-RING

- 5/8 inch ID

4шт.

23

K946083

VALVE

ASSEMBLY - steering, see fig H1-1

1шт.

24

K204065

HOSE

TUBE - flexible, 3/4 UNF x 66 inch

1шт.

25

K204066

HOSE

TUBE - flexible, 3/4 UNF x 78 inch

1шт.

26

K628367

CLIP

- tube

1шт.

27

K628368

CLIP

- tube

1шт.

28

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- 1/4 UNC x 2 inch

1шт.

29

K626341

SPRING WASHER

WASHER - lock, 1/4 inch

1шт.

30

K955079

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, see fig. H9-1

1шт.
