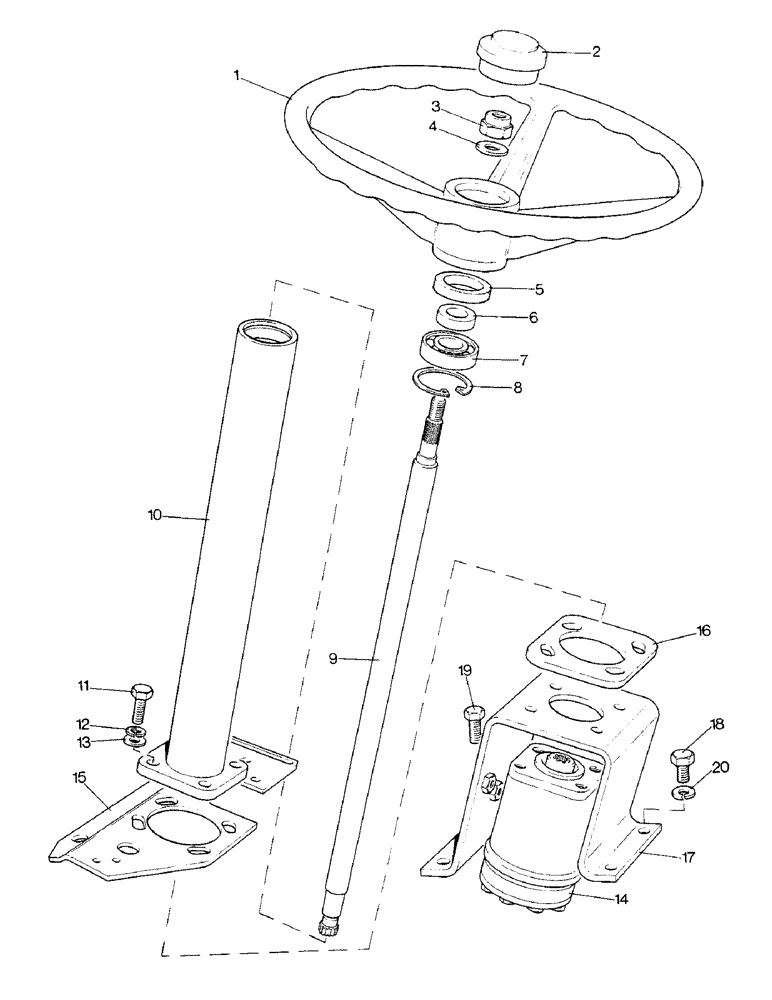

Запчасти Case IH 1290 (H-01) - STEERING COLUMN, HYDROSTATIC POWER STEERING (13) - STEERING SYSTEM

1

K949446

HANDWHEEL

WHEEL - steering

1шт.

2

K952274

CAP

- hub

1шт.

3

K607304

NUT

- self-locking, 1/2 inch UNC

1шт.

4

K626686

WASHER

- 1/2 inch

1шт.

5

K623479

WASHER

- felt, 1/2 inch ID

1шт.

6

K627103

BUSHING

SPACER - bearing

1шт.

7

K620192

BALL

BEARING - ball

1шт.

8

K11911

RING, SNAP

RING - snap, 1-5/8 inch, internal

2шт.

9

K201585

SHAFT

- steering

1шт.

10

K201581

FLANGE

COLUMN - steering

1шт.

11

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

4шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

13

K19472

WASHER

- 3/8 inch

4шт.

14

K946083

VALVE

ASSEMBLY - steering, Orbitrol OSP125

1шт.

K962387

GASKET KIT

SEAL KIT - steering valve

1шт.

K964157

SPRING

- centering, set of three

2шт.

Seal pack-If steering handpump has Danfoss part #150-1051 on it, order seal kit P/N 3141548R91.

1шт.

15

K300200

SUPPORT

- engine cover

1шт.

16

K300651

BUSHING

PLATE - spacing

1шт.

17

K201587

BRACKET

- support

1шт.

18

K602983

SCREW

BOLT - 3/8 UNC x 7/8 inch

3шт.

19

K602936

SCREW,3/8" - 16 x 1 1/2", Gr S

BOLT - 3/8 UNC x 1-1/4 inch

1шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.
