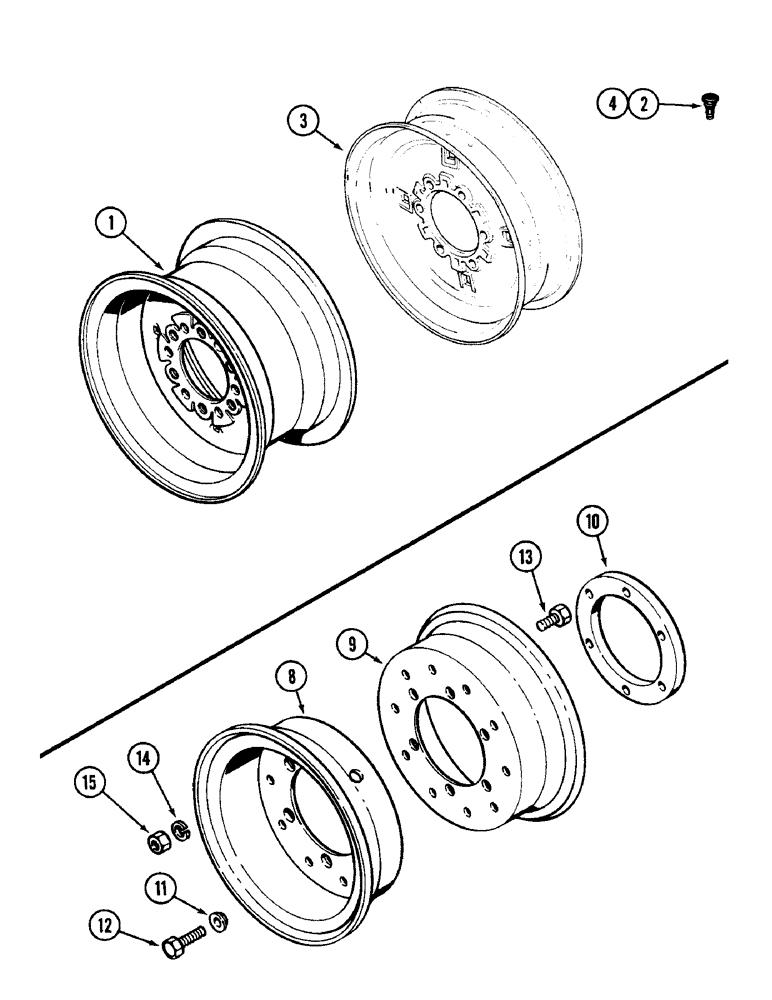

Запчасти Case IH 1290 (T-07) - FRONT WHEELS, LOW PROFILE SPECIAL (11) - WHEELS & WEIGHTS

1

K952716

WHEEL

- front, 8 LB x 15 (Takes 9.5L-1511 tire)

2шт.

2

A38261

VALVE

- air, tire

2шт.

3

K947941

WHEEL

- front, 5.50F x 16 (Takes 7.50-1611 tire)

2шт.

4

A38261

VALVE

- air, tire

2шт.

8

A143943

WHEEL

- outer half, front (With valve hole), 5.50 x 10 (Takes 9.00-10 F3 tire)

2шт.

9

A143944

WHEEL

- inner half, front (Without valve hole), 5.50 x 10 (Takes 9.00-10 F3 tire)

2шт.

10

K910174

BUSHING

SPACER - front wheel

2шт.

11

K626687

WASHER

- wheel bolt

12шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

13

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

20шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.
