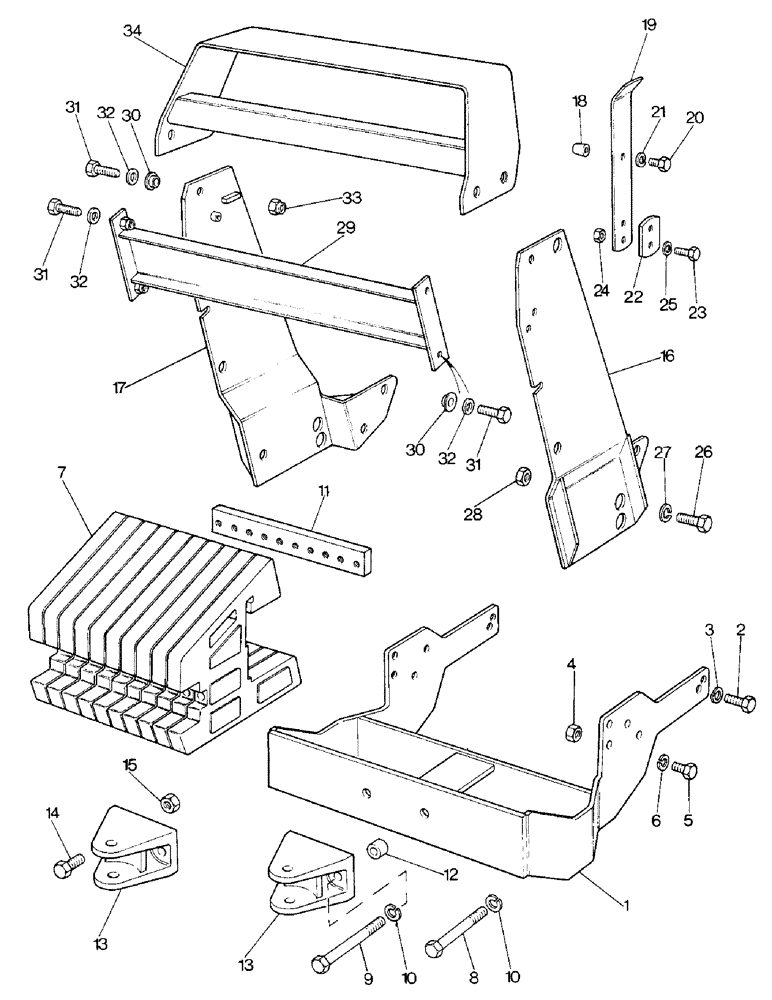

Запчасти Case IH 1290 (T-06) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, 1290 PIN 11054201 & AFTER, 1390 PIN 11127048 & AFTER (11) - WHEELS & WEIGHTS

UK5398

WEIGHT

FRAME ATTACHMENT - ballast, Includes Ref: 1 - 6

1шт.

1

K304774

WEIGHT

FRAME - support

1шт.

2

K603284

SCREW

BOLT - 5/8 UNC x 2-3/4 inch

2шт.

3

K19485

WASHER

- lock, 5/8 inch

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

K603276

SCREW

BOLT - 5/8 inch UNC x 1-3/4 inch

4шт.

6

K19485

WASHER

- lock, 5/8 inch

4шт.

UK5136

WEIGHT

ATTACHMENT - ballast, Includes Ref: 7 - 12

1шт.

7

K203073

WEIGHT

- ballast

10шт.

8

K601472

BOLT

- 3/4 UNC x 9 inch

2шт.

9

K601473

BOLT

- 3/4 UNC x 10-1/2 inch

2шт.

10

K626348

BELLEVILLE SPRING

WASHER - lock, 3/4 inch

4шт.

11

K203077

BAR

- locking

1шт.

12

K301633

SPACER

- bracket

2шт.

UK5140

CLEVIS

BRACKET ATTACHMENT - tow, Includes Ref: 13 - 15

1шт.

13

K204397

CLEVIS

BRACKET - tow

1шт.

14

K603438

SCREW

BOLT - 3/4 UNC x 2 inch

2шт.

15

280954

NUT,3/4"-10, G5

- 3/4 inch UNC

2шт.

UK5479

KIT

GUARD ATTACHMENT - radiator, Includes Ref: 16 - 34

1шт.

16

K305070

PLATE

- side, left-hand

1шт.

17

K305083

PLATE

- side, right-hand

1шт.

18

K305085

STOP

PIN - stop

1шт.

19

K305088

STOP

STRAP - spring

1шт.

20

K650657

BOLT

- M10 x 14 MM

1шт.

21

K651849

WASHER

- lock

1шт.

22

K948166

SPRING

PLATE - strap

1шт.

23

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

24

280136

NUT,3/8"-16, G8

2шт.

25

K651849

WASHER

- lock

2шт.

26

K603276

SCREW

BOLT - 5/8 UNC x 1-7/8 inch

6шт.

27

K19485

WASHER

- lock, 5/8 inch

6шт.

28

280374

NUT,Hex, 5/8" - 11, Gr 5

6шт.

29

K305064

CHANNEL

BAR - tie

1шт.

30

K305087

BUSHING

- plastic

4шт.

31

K691960

SCREW

BOLT - 1/2 UNC x 1-5/8 inch

6шт.

32

K626686

WASHER

- 1/2 inch

6шт.

33

K607304

NUT

- self-locking, 1/2 inch UNC

2шт.

34

K305065

GUARD

- hood nose

1шт.
