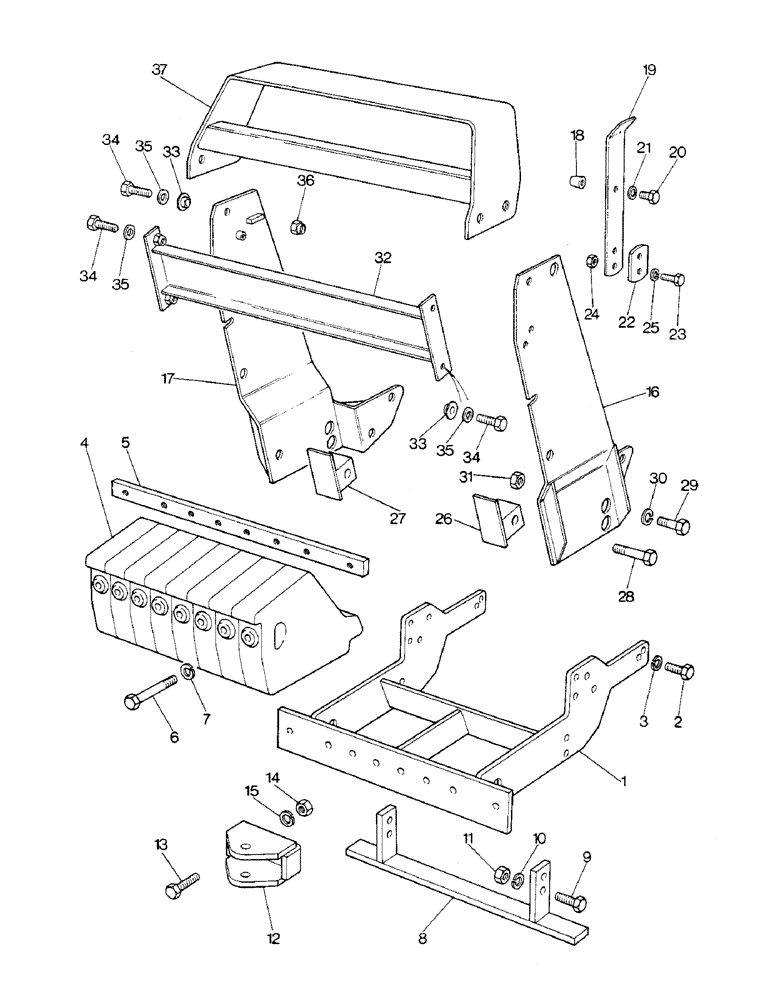

Запчасти Case IH 1290 (T-05) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, 1290 PRIOR TO PIN 11054201, 1390 PRIOR TO PIN 11127048 (11) - WHEELS & WEIGHTS
№
Артикул
Название
Примечание
Количество
UK5134
FRAME
ATTACHMENT - ballast, Includes Ref: 1 - 3
1шт.
1
K301622
FRAME
- support
1шт.
2
K603276
SCREW
BOLT - 5/8 UNC x 1-3/4 inch
6шт.
3
K19485
WASHER
- lock, 5/8 inch
6шт.
UK5139
WEIGHT
ATTACHMENT - ballast, Includes Ref: 4 - 11
1шт.
4
K203843
WEIGHT
- ballast
8шт.
5
K203861
SUPPORT
BAR - locking
1шт.
6
K601324
BOLT
- 5/8 UNC x 3-3/4 inch
8шт.
7
K19485
WASHER
- lock, 5/8 inch
8шт.
8
K301614
SUPPORT
STRUT - support
1шт.
9
K603278
SCREW
BOLT - 5/8 UNC x 2 inch
4шт.
10
K19485
WASHER
- lock, 5/8 inch
4шт.
11
280374
NUT,Hex, 5/8" - 11, Gr 5
4шт.
UK5141
ADJUSTABLE CLEVIS
BRACKET ATTACHMENT - tow, Includes Ref: 12 - 15
1шт.
12
K301627
CLEVIS
BRACKET - tow
1шт.
13
K603278
SCREW
BOLT - 5/8 UNC x 2 inch
2шт.
14
280374
NUT,Hex, 5/8" - 11, Gr 5
2шт.
15
K19485
WASHER
- lock, 5/8 inch
2шт.
UK5480
KIT
GUARD ATTACHMENT - radiator, Includes Ref: 16 - 37
1шт.
16
K305070
PLATE
- side, left-hand
1шт.
17
K305083
PLATE
- side right-hand
1шт.
18
K305085
STOP
PIN - stop
1шт.
19
K305088
STOP
STRAP - spring
1шт.
20
K650657
BOLT
- M10 x 14 MM
1шт.
21
K651849
WASHER
- lock, M10
1шт.
22
K948166
SPRING
PLATE - strap
1шт.
23
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
2шт.
24
280136
NUT,3/8"-16, G8
2шт.
25
K651849
WASHER
- lock, 10 MM
2шт.
26
K305098
BUSHING
SPACER - left-hand
1шт.
27
K305099
BUSHING
SPACER - right-hand
1шт.
28
K691836
BOLT
- 5/8 UNC x 3 inch
2шт.
29
K603276
SCREW
BOLT - 5/8 UNC x 1-7/8 inch
4шт.
30
K19485
WASHER
- lock
6шт.
31
280374
NUT,Hex, 5/8" - 11, Gr 5
4шт.
32
K305064
CHANNEL
BAR - tie
1шт.
33
K305087
BUSHING
BRUSHING - plastic
4шт.
34
K691960
SCREW
BOLT - 1/2 UNC x 1-5/8 inch (Order 113-2401)
6шт.
35
K626686
WASHER
- 1/2 inch
6шт.
36
K607304
NUT
- self-locking, 1/2 inch UNC
2шт.
37
K305065
GUARD
- hood nose
1шт.
Выбрано товаров: 41
