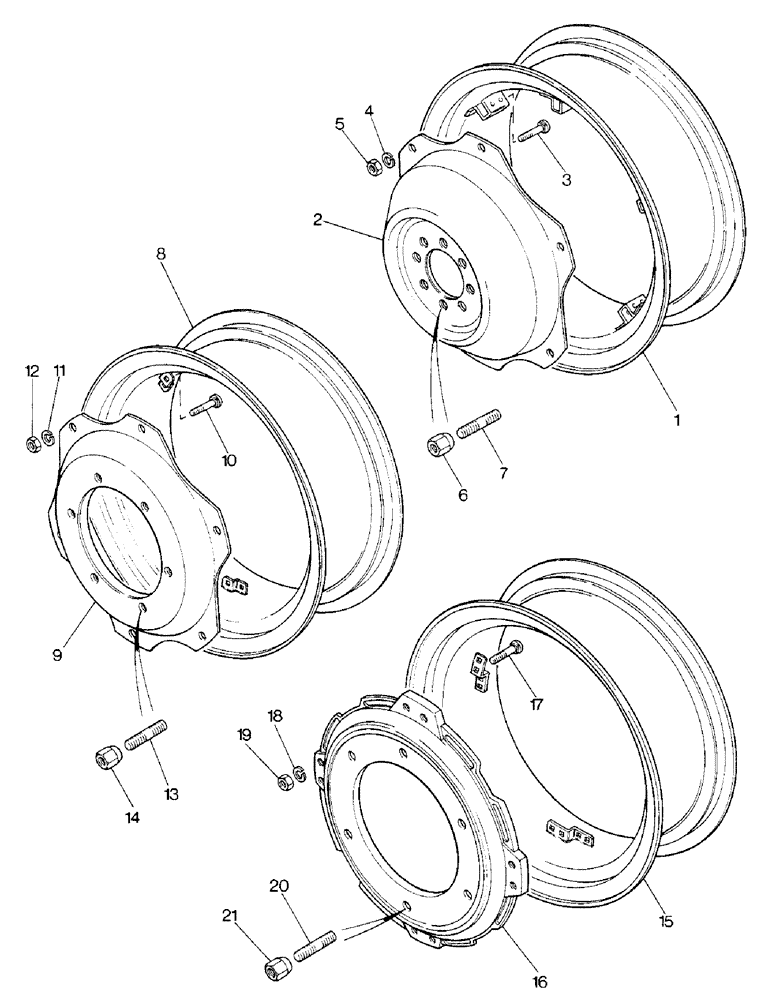

Запчасти Case IH 1290 (T-04) - FRONT WHEELS AND BALLAST WEIGHTS, MFD TRACTORS (11) - WHEELS & WEIGHTS

K301044

RIM

WHEEL ASSEMBLY - front, for 11.2/10-24 tires (David Brown axle), Includes Ref: 1 - 5

2шт.

1

K301045

RIM

- wheel W8 x 24 inch

1шт.

2

K301038

WHEEL

- center

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

6шт.

4

K19475

WASHER

- lock, 5/8 inch

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

6

K617171

WHEEL NUT

- 5/8 inch UNF (David Brown axle)

16шт.

7

K608612

STUD

- 5/8 UNC/UNF x 2-3/8 inch (David Brown axle)

16шт.

K205132

WHEEL

ASSEMBLY - front, for 12.4/11-24 inch tires (Carraro axle, steel wheel centers), Includes Ref: 8 - 12

1шт.

8

K205133

WHEEL

RIM - wheel, W10 x 24 (Carraro 111670)

1шт.

9

K205134

DISC, WHEEL

WHEEL - center (Carraro 111657)

1шт.

10

K205135

BOLT

- rim (Carraro 111668)

6шт.

11

K205136

WASHER

- lock (Carraro 111667)

6шт.

12

K205137

NUT

- (Carraro 22178)

6шт.

13

K965327

WHEEL

STUD - M14 x 52 (Carraro 104781) (Carraro axle, steel wheel centers)

12шт.

14

K965326

WHEEL NUT

- wheel, M14 (Carraro 104782) (Carraro axle, steel wheel centers)

12шт.

K204669

WHEEL

ASSEMBLY - front, for 12.4/11-24 tires (Carraro axle, cast iron wheel), Includes Ref: 15 - 19

1шт.

15

K260771

WHEEL

RIM - wheel, W10 x 24 inch (Carraro 111087)

1шт.

16

K260772

DISC, WHEEL

WHEEL - center (Carraro 111086)

1шт.

17

K260259

BOLT

- rim (Carraro 106200)

8шт.

18

K965248

WASHER

- lock (Carraro 22863)

8шт.

19

K260261

NUT

- M14 (Carraro 22175)

8шт.

20

K260765

STUD,M14 x 1.5 x 62mm, Cl 10.9

- M14 x 62 MM (Carraro axle, cast iron wheel)

12шт.

21

K965326

WHEEL NUT

- wheel (Carraro 104782) (Carraro axle, cast iron wheel)

12шт.
