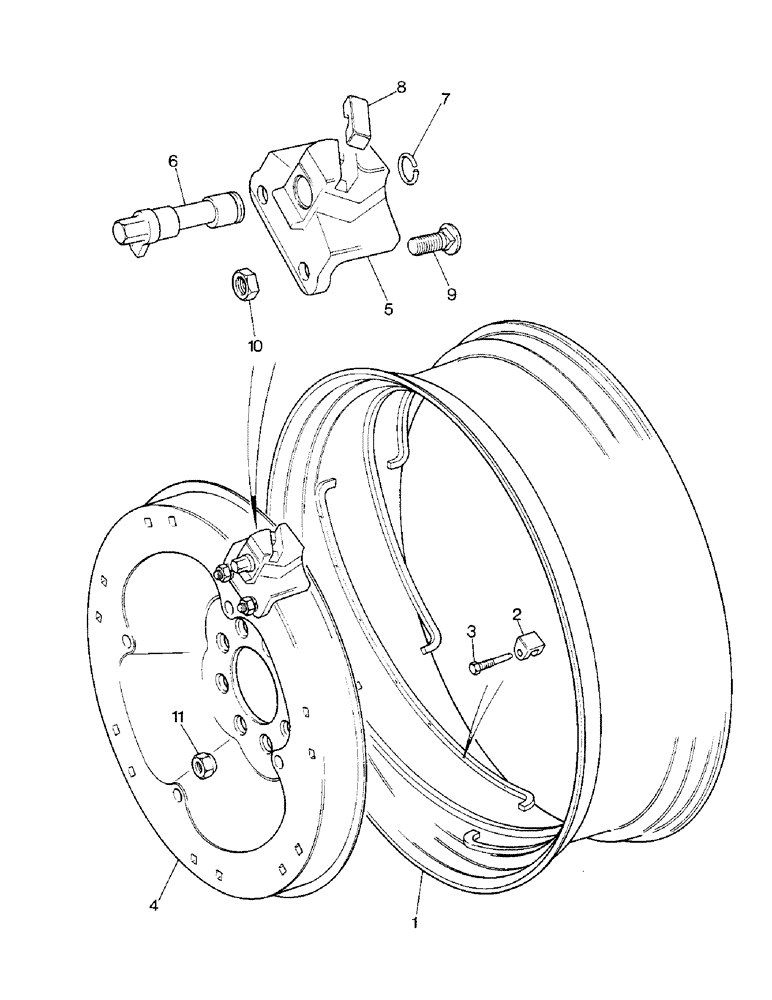

Запчасти Case IH 1290 (T-02) - POWER ADJUSTED REAR WHEELS (11) - WHEELS & WEIGHTS

K302514

WHEEL

RIM ASSEMBLY - rear, fits 14-30 tires, Includes Ref: 1 - 8

2шт.

1

K302516

RIM

- rear, W14 x 30

1шт.

2

K917337

STOP

BRACKET - stop, wheel rim

2шт.

3

K200142

SCREW,Hex, 9/16" x 2 1/8"

BOLT - stop bracket

2шт.

4

K302515

WHEEL

- center, rear

1шт.

5

K917340

SUPPORT

CLAMP - wheel

5шт.

6

K200128

PIN

- eccentric

5шт.

7

K917341

RING

- snap

5шт.

8

K917342

BLOCK

- clamp

5шт.

9

K304694

CARRIAGE BOLT

- shoulder, M16

10шт.

10

K651530

NUT

- M16

10шт.

11

K617176

NUT

- wheel

16шт.
