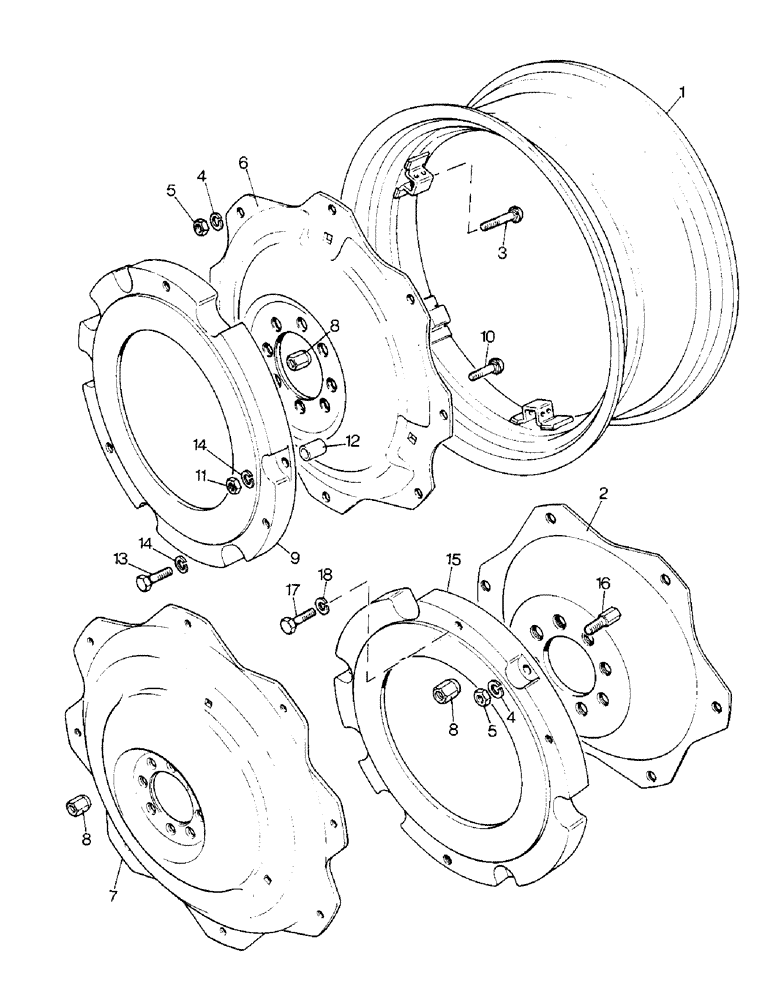

Запчасти Case IH 1290 (T-01) - REAR WHEELS AND BALLAST WEIGHTS (11) - WHEELS & WEIGHTS

K301047

WHEEL

RIM ASSEMBLY - rear, fits 11-28 tires, Includes Ref: 1 - 5

2шт.

1

K301002

RIM

- rear wheel, W11 x 28

1шт.

2

K301016

WHEEL

- center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

6шт.

4

K19475

WASHER

- 5/8 inch

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

K301014

WHEEL

RIM ASSEMBLY - rear, fits 14-30 tires, Includes Ref: 1 - 5

2шт.

1

K301014

WHEEL

RIM - wheel, rear, W14 x 30

1шт.

2

K301016

WHEEL

- center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

6шт.

4

K19475

WASHER

- 5/8 inch

6шт.

5

425-1110

NUT,5/8"-18, G5

6шт.

K301011

WHEEL

RIM ASSEMBLY - rear, fits 14-34 tires, 1390 tractor, Includes Ref: 1 - 5

2шт.

1

K301012

WHEEL

RIM - wheel, rear, DW14 x 34

1шт.

6

K301013

DISC, WHEEL

WHEEL - center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

8шт.

4

K19475

WASHER

- 5/8 inch

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K301008

RIM

ASSEMBLY - rear, fits 11-36 or 12-36 tires, Includes Ref: 1 - 5

2шт.

1

K301009

WHEEL

RIM - wheel, rear, W11 x 36

1шт.

7

K301010

DISC, WHEEL

WHEEL - center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

8шт.

4

K19475

WASHER

- 5/8 inch

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

K301017

RIM

ASSEMBLY - rear, fits 12-38 tires, Includes Ref: 1 - 5

2шт.

1

K301018

WHEEL

RIM - wheel, rear, DW12 x 38

1шт.

7

K301010

DISC, WHEEL

WHEEL - center, rear

1шт.

3

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT - rim, 5/8 UNF x 2-7/8 inch

8шт.

4

K19475

WASHER

- 5/8 inch

8шт.

5

425-1110

NUT,5/8"-18, G5

8шт.

8

K617176

NUT

- wheel, 3/4 inch UNF, Includes Ref: 9 - 14

16шт.

For K301008, K301017 and K301011 wheels

1шт.

UK184

WHEEL

WEIGHT ATTACHMENT - ballast

1шт.

9

K86167

WEIGHT

- ballast

4шт.

10

K690452

BOLT

- 5/8 BSF x 2-7/8 inch

6шт.

11

K19406

WHEEL NUT

- 5/8 inch BSF

6шт.

12

K910181

BUSHING

SPACER - weight

6шт.

13

K19305

BOLT

- 5/8 BSF x 2 inch

6шт.

14

K19485

WASHER

- lock, 5/8 inch, Includes Ref: 15 - 18

12шт.

UK729

WHEEL

WEIGHT ASSEMBLY - ballast

1шт.

For K301014, K301047 wheels

1шт.

15

K86167

WEIGHT

- ballast

4шт.

16

K914869

STUD

- 5/8 inch UNF

6шт.

17

K19305

BOLT

- 5/8 BSF x 2 inch

6шт.

18

K19485

WASHER

- lock, 5/8 inch

12шт.
