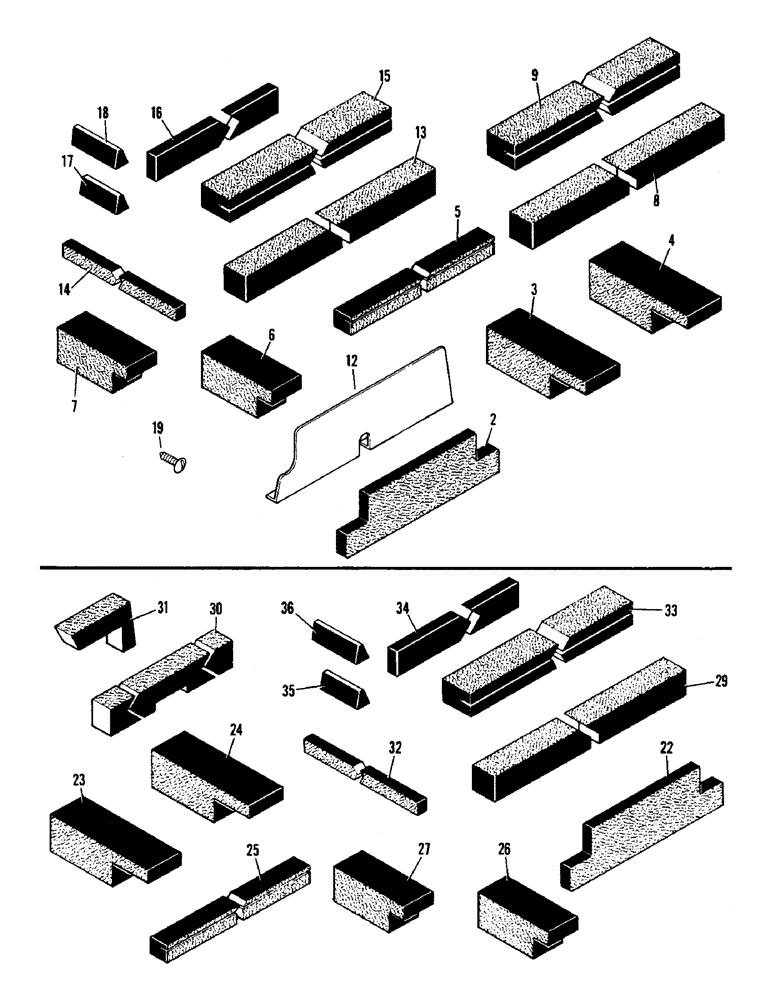

Запчасти Case IH 1290 (N-15) - SEAL KIT (08) - SHEET METAL

A167747

KIT

- seal, high platform - rear hinged hood, Includes Ref: 2 - 19

1шт.

2

A167712

SEAL

SEAL - baffle

1шт.

3

A167713

SEAL

SEAL - battery tray, right

1шт.

4

A167714

SEAL

SEAL - battery tray, left

1шт.

5

A167715

SEAL

SEAL - side panel

2шт.

6

A167716

SEAL

SEAL - radiator, right

1шт.

7

A167717

SEAL

SEAL - radiator, left

1шт.

8

A167718

SEAL

SEAL - side panel

2шт.

9

A167719

SEAL

SEAL - hood

1шт.

12

A167722

BAFFLE

SEAL - radiator baffle

1шт.

13

A167723

SEAL

SEAL - hood

1шт.

14

A167724

SEAL

SEAL - side

2шт.

15

A167731

SEAL

SEAL - battery tray

1шт.

16

A167638

SEALING STRIP

SEAL - waist rail

3шт.

17

A167656

SEAL - grille

4шт.

18

A167657

SEAL

SEAL - grille

2шт.

19

168-23

SCREW - round head self-tapping, No. 10 x 3/8 inch

4шт.

A167748

KIT

- seal, low profile - rear hinged hood, Includes Ref: 22 - 36

1шт.

22

A167712

SEAL

SEAL - baffle

1шт.

23

A167713

SEAL

SEAL - battery tray, right

1шт.

24

A167714

SEAL

SEAL - battery tray, left

1шт.

25

A167715

SEAL

SEAL - side panel

2шт.

26

A167716

SEAL

SEAL - radiator, right

1шт.

27

A167717

SEAL

SEAL - radiator, left

1шт.

29

A167718

SEAL

SEAL - side panel

2шт.

30

A167720

SEAL

SEAL - hood

1шт.

31

A167725

SEAL

SEAL - radiator

1шт.

32

A167724

SEAL

SEAL - side

2шт.

33

A167731

SEAL

SEAL - battery tray

1шт.

34

A167638

SEALING STRIP

SEAL - waist rail

3шт.

35

A167656

SEAL - grille

4шт.

36

A167657

SEAL

SEAL - grille

2шт.
