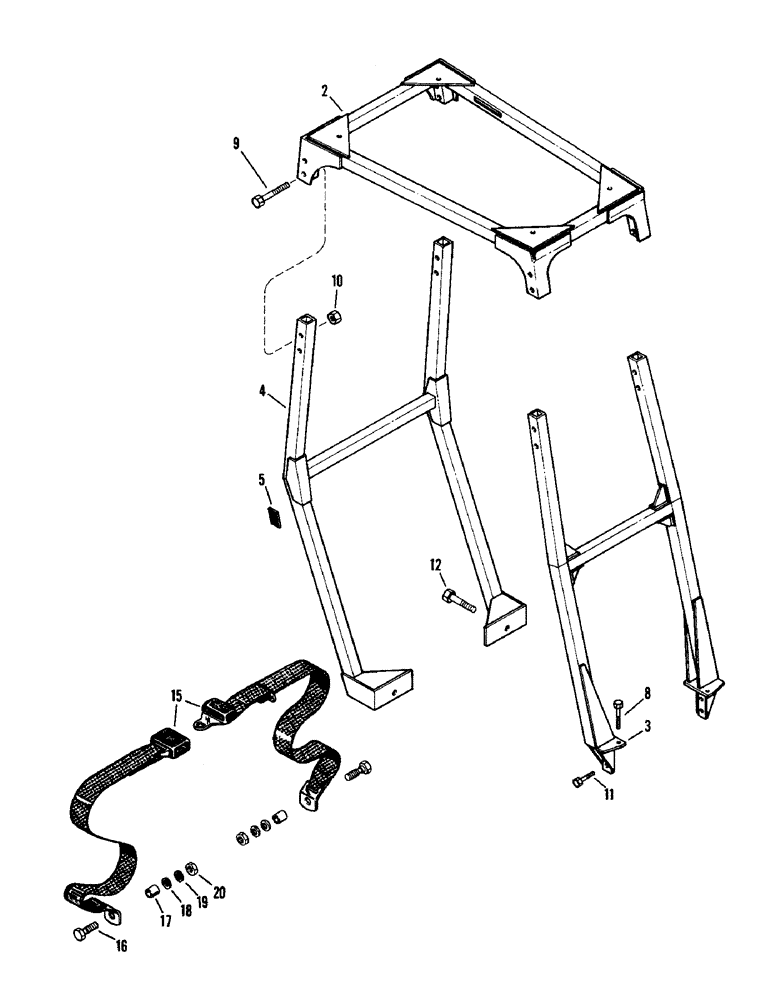

Запчасти Case IH 1290 (N-13) - FOUR POST ROLL OVER PROTECTIVE STRUCTURE, LOW PROFILE SPECIAL (08) - SHEET METAL

A164850

FRAME

ASSEMBLY - 4 post ROPS, Includes Ref: 2 - 20

1шт.

2

A169134

FRAME

ASSEMBLY - upper

1шт.

3

A169133

FRAME

ASSEMBLY - front

1шт.

4

A169135

FRAME

ASSEMBLY - rear

1шт.

5

A169138

PAD

BUMPER - rear frame

2шт.

8

113-479

BOLT

- hex, 1/2 NC x 2-1/4 inch (Order 113-441)

4шт.

9

113-2455

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, black special, 1/2 NC x 3 inch (Order 113-425)

8шт.

10

131-492

NUT,1/2"-13

NUT - lock, hex, 1/2 inch NC

8шт.

11

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

12

113-810

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

REF

INSTRUCTION

CANOPY ASSEMBLY - roll over (Not shown, see page N14-1)

1шт.

15

A160404

SAFETY BELT

BELT - seat, safety

1шт.

16

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

17

A60907

BUSHING

SPACER - anchor bolt

2шт.

18

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16 inch

2шт.

19

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

20

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NC

2шт.
