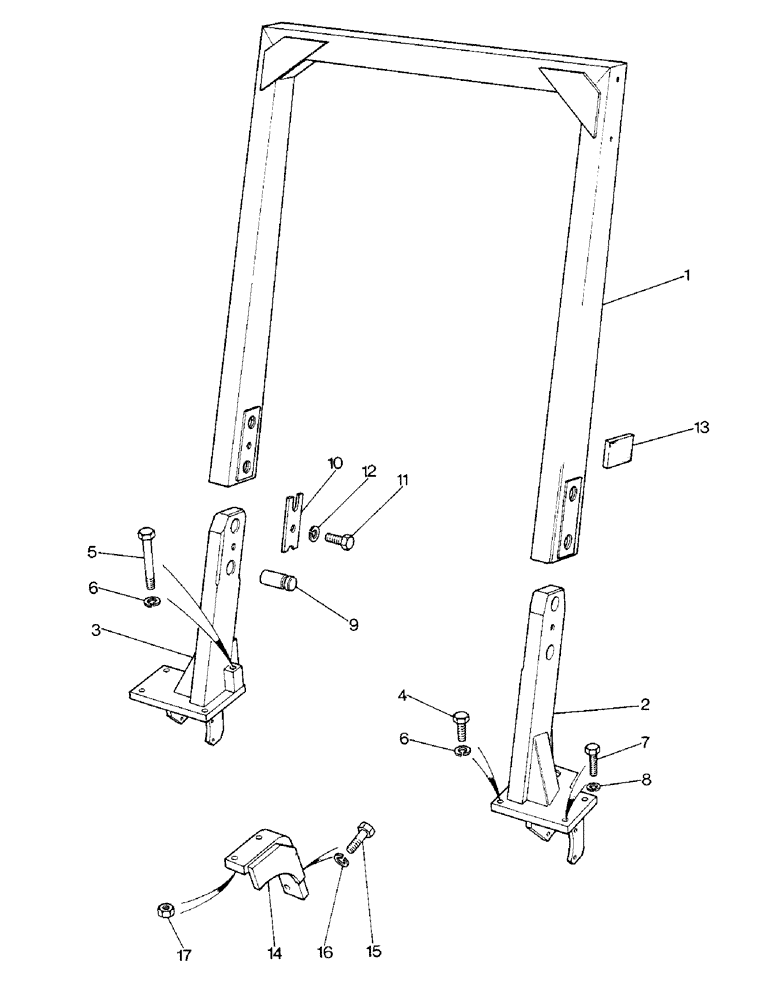

Запчасти Case IH 1290 (N-12) - TWO POST ROLL BAR, U4705 (08) - SHEET METAL

1

K300161

BAR

ROLL BAR - two post

1шт.

2

K301384

BAR

SUPPORT - left-hand

1шт.

3

K301385

BAR

SUPPORT - right-hand

1шт.

4

K603143

SCREW

BOLT - 1/2 UNC x 1-1/2 inch

2шт.

5

K600890

BOLT

- 1/2 UNC x 4 inch

2шт.

6

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

7

K601212

BOLT

- 5/8 UNC x 3 inch (Standard clearance tractor)

4шт.

7

K601360

BOLT

- 5/8 inch (High clearance tractor)

4шт.

8

K19485

WASHER

- lock, 5/8 inch

4шт.

9

K301379

PIN

- 32 MM diameter x 80 MM

4шт.

10

K301380

PLATE

- locating

2шт.

11

K601465

BOLT

- 3/4 UNC x 2-1/4 inch

2шт.

12

K19482

SPRING WASHER

WASHER - lock, 3/4 inch

2шт.

13

K302607

PAD

- buffer, Serial Range: bar-fender

2шт.

14

K301739

BRACKET

- mounting, left-hand (High clearance tractor)

1шт.

14

K301738

BRACKET

- mounting, right-hand (High clearance tractor)

1шт.

15

K601356

BOLT

- 5/8 NC x 2 inch (High clearance tractor)

4шт.

16

K19485

WASHER

- lock, 5/8 inch (High clearance tractor)

4шт.

17

280374

NUT,Hex, 5/8" - 11, Gr 5

(High clearance tractor) 5/8"-11, G5

4шт.
