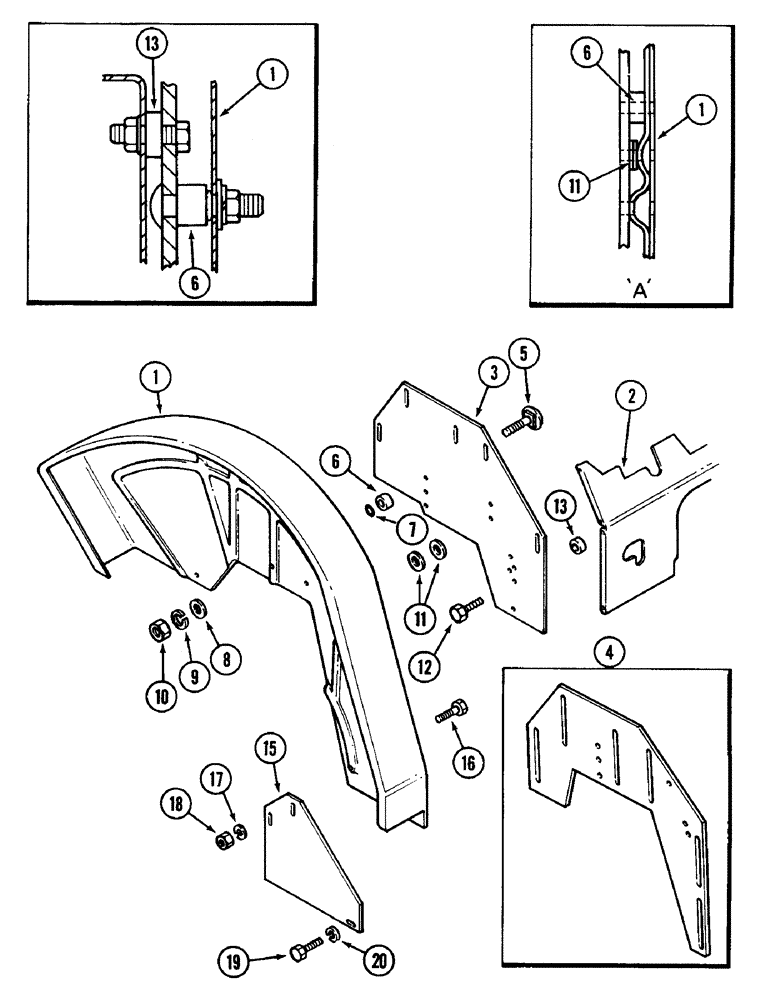

Запчасти Case IH 1290 (N-10) - REAR FENDER GUARD & ADAPTER, LOW PROFILE SPECIAL (08) - SHEET METAL

1

K206231

FENDER

- rear, left

1шт.

1

K206232

FENDER

- rear, right

1шт.

2

REF

INSTRUCTION

COVER - rear axle (See page N9-1)

1шт.

3

A165439

FITTING

ADAPTER - fender (Used with rotated reduction housing)

1шт.

4

K206238

FENDER

ADAPTER - fender (Used when reduction housing is not rotated)

2шт.

5

11-628

BOLT,Short NK, 3/8"-16 x 1 3/4", G2

- round head, square neck, 3/8 NC x 1-3/4 inch

2шт.

6

K627042

BUSHING

SPACER - fender, 1/2 inch

2шт.

7

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64 inch

2шт.

8

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 inch

2шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64 (See inset A)

1шт.

12

813-8045

SCREW,Hex, M8 x 1.25 x 45mm, Cl 8.8

BOLT - M8 x 45 MM

10шт.

13

K627110

BUSHING

SPACER - adapter, 1/4 inch

2шт.

15

A166394

GUARD

- tire

2шт.

16

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

K650643

BOLT

- M8 x 24 MM

1шт.

20

K651848

WASHER

- lock, 8 MM

1шт.
