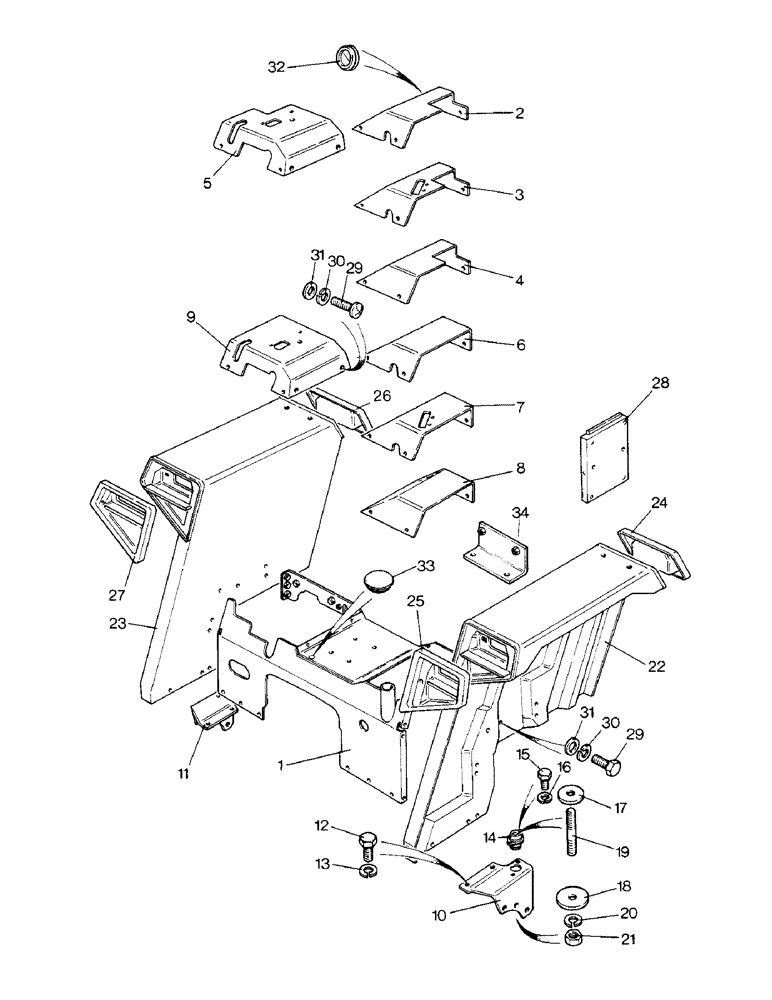

Запчасти Case IH 1290 (N-09) - REAR AXLE COVER, FENDERS AND MOUNTINGS (08) - SHEET METAL

1

K300985

SHAFT

COVER - rear axle

1шт.

2

K300996

SHAFT

COVER - left-hand, independent clutch (With roll bar)

1шт.

3

K301512

SHAFT

COVER - left-hand, MFD (With roll bar)

1шт.

4

K301511

SHAFT

COVER - left-hand, continuous clutch (With roll bar)

1шт.

5

K300999

COVER

- right-hand (With roll bar)

1шт.

6

K300992

SHAFT

COVER - left-hand, independent clutch (Without roll bar)

1шт.

7

K301510

SHAFT

COVER - left-hand, MFD (Without roll bar)

1шт.

8

K301513

SHAFT

COVER - left-hand, continuous clutch (Without roll bar)

1шт.

9

K300995

COVER

- right-hand (Without roll bar)

1шт.

10

K300695

SUPPORT

- platform left-hand rear

1шт.

11

K300696

SUPPORT

- platform right-hand rear

1шт.

12

K603138

SCREW

BOLT - 1/2 UNC x 1 inch (Without roll bar)

4шт.

13

K626345

LOCK WASHER

WASHER - lock, 1/2 inch (Without roll bar)

4шт.

14

K300649

BLOCK

MOUNTING - flexible (Without roll bar)

2шт.

15

K650627

BOLT,M6 x 16mm

- M8 x 16 MM (Without roll bar)

4шт.

16

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

17

K627464

WASHER

- special 10 MM

2шт.

18

K627465

WASHER

- special 10 MM

2шт.

19

K608245

STUD

- 3/8 UNC x 3 inch

2шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

2шт.

21

280136

NUT,3/8"-16, G8

2шт.

22

K300397

FENDER

- full, left-hand

1шт.

23

K300399

FENDER

- full, right-hand

1шт.

24

K300422

MOLDING

MOULDING - rear

1шт.

25

K300413

MOLDING

MOULDING - front

1шт.

26

K300405

MOLDING

MOULDING - rear

1шт.

27

K300423

MOLDING

MOULDING - front

1шт.

28

K954320

BOX

- operators manual (Order A141933)

1шт.

29

K650643

BOLT

- M8 x 24 MM

24шт.

30

K651848

WASHER

- lock, 8 MM

24шт.

31

K651778

WASHER

- 8 MM

24шт.

32

K627770

GROMMET

- cover

1шт.

33

K628015

PLUG

- plastic

1шт.

34

K301925

BRACKET

- support

1шт.
