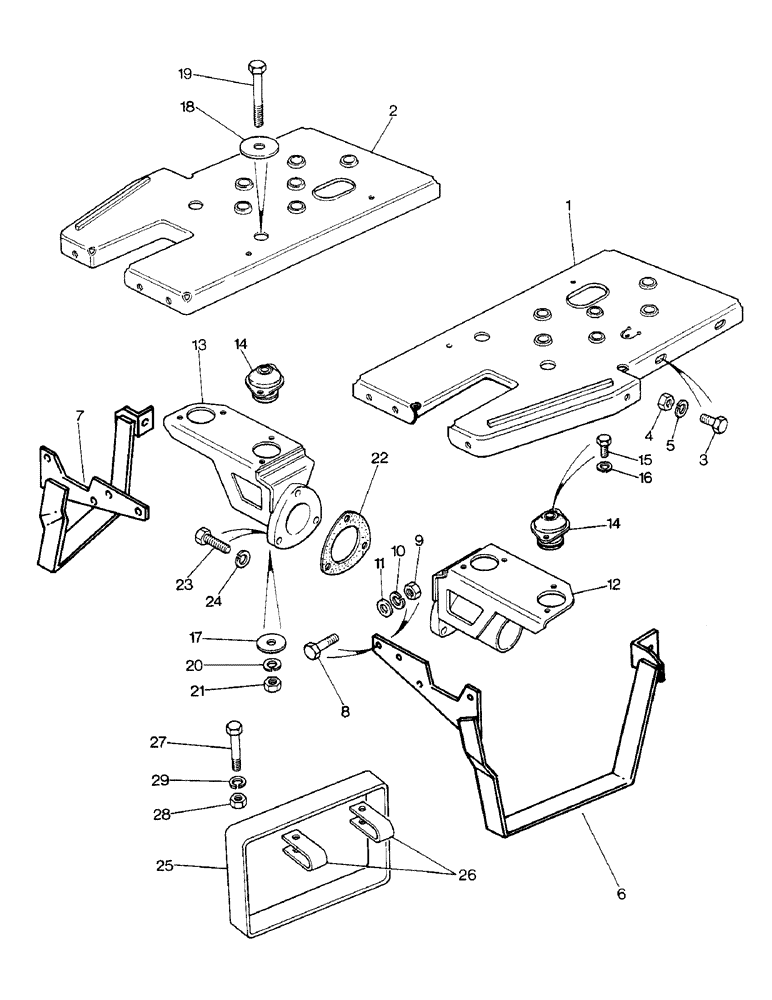

Запчасти Case IH 1290 (N-08) - FOOTPLATES AND MOUNTINGS (08) - SHEET METAL

1

K306388

PLATE

FOOTPLATE - left-hand (Replaces K300840)

1шт.

2

K300843

TREAD

FOOTPLATE - right-hand

1шт.

3

K650641

SCREW

BOLT - M8 x 16 MM

10шт.

4

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

10шт.

5

K651848

WASHER

- lock, 8 MM

10шт.

6

K305515

PLATE ASSY.

STEP - left-hand (Replaces K300639)

1шт.

7

K305709

PLATE ASSY.

STEP - right-hand (Replaces K300636)

1шт.

8

K650640

BOLT

- M8 x 25 MM

8шт.

9

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

8шт.

10

K651848

WASHER

- lock, 8 MM

8шт.

11

K651778

WASHER

- 8 MM

8шт.

12

K300823

SUPPORT

BRACKET - support, left-hand footplate

1шт.

13

K300813

SUPPORT

BRACKET - support, right-hand footplate

1шт.

14

K300649

BLOCK

MOUNTING - flexible

4шт.

15

K650626

BOLT

- M6 x 14 MM

8шт.

16

K651847

WASHER, LOCK

WASHER - lock, 6 MM

8шт.

17

K627464

WASHER

- special 10 MM

4шт.

18

K627465

WASHER

- special 10 MM

4шт.

19

K600563

BOLT

- 3/8 UNC x 2-1/4 inch

4шт.

20

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

21

280136

NUT,3/8"-16, G8

4шт.

22

K201828

GASKET

- bracket

2шт.

23

K600403

BOLT

- 3/8 UNC x 1-3/8 inch

6шт.

24

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

6шт.

25

K302592

CLAMP

EXTENSION - footstep (High clearance tractor)

2шт.

26

K302593

CLAMP

- extension (High clearance tractor)

4шт.

27

K650645

BOLT

- M8 x 35 MM

4шт.

28

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

4шт.

29

K651848

WASHER

- lock, 8 MM

4шт.
