(N-07) - ENGINE HOOD & HINGE, 1290 P.I.N. 11054201 & AFTER, 1390 P.I.N. 11127048 & AFTER

Запчасти Case IH 1290 (N-07) - ENGINE HOOD & HINGE, 1290 P.I.N. 11054201 & AFTER, 1390 P.I.N. 11127048 & AFTER (08) - SHEET METAL

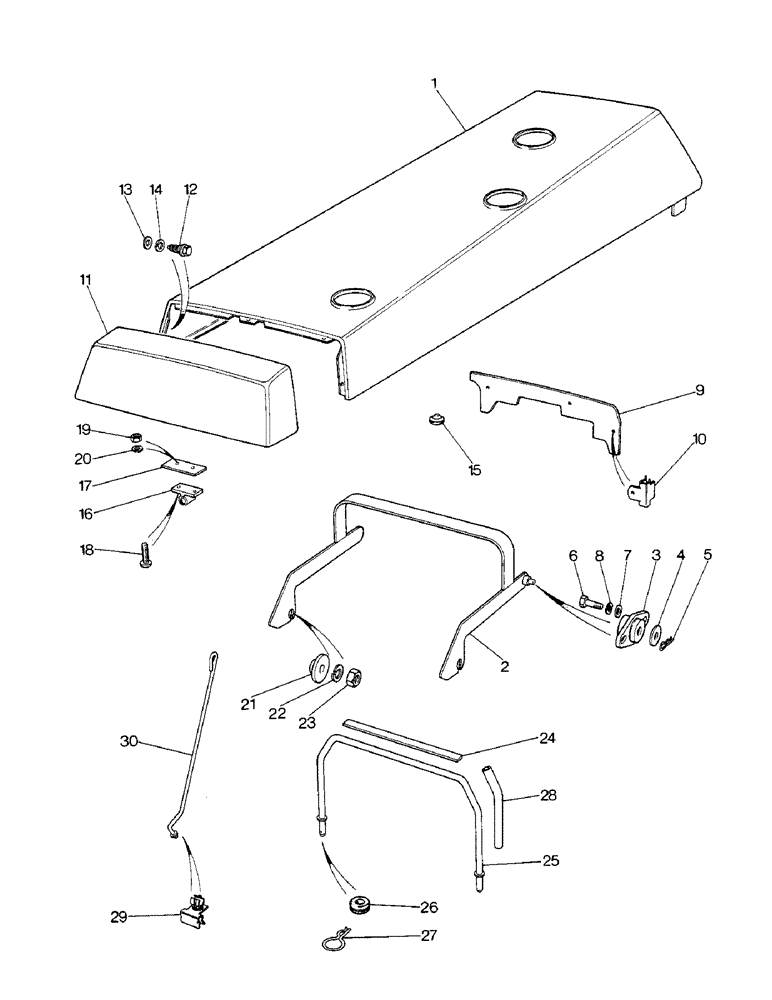

Схема запчастей Case IH 1290 - (N-07) - ENGINE HOOD & HINGE, 1290 P.I.N. 11054201 & AFTER, 1390 P.I.N. 11127048 & AFTER (08) - SHEET METAL
15
19
2
17
20
9
11
12
14
10
6
26
22
8
25
29
24
4
5
28
16
30
13
18
3
7
21
1
27
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K304961

HOOD

- engine

1шт.

2

K304385

SUPPORT

MEMBER - cross

1шт.

3

K304095

LINK

BRACKET - pivot

2шт.

4

K692199

WASHER

- special

2шт.

5

K950865

CLIP

- retaining, 1/4 inch

2шт.

6

K650628

BOLT

- M6 x 20 MM

4шт.

7

K19470

WASHER

- 6 MM

4шт.

8

K651847

WASHER, LOCK

WASHER - lock, 6 MM

4шт.

9

K304481

RADIATOR

BAFFLE - radiator

1шт.

10

K657166

CLIP

- retaining

3шт.

11

K956250

COVER

- front, engine

1шт.

12

K624533

SCREW

- 8 MM self-tapping

5шт.

13

K651778

WASHER

- 8 MM

5шт.

14

K626552

WASHER

- lock, 1/4 inch

5шт.

15

K916596

PLUG

- rubber

2шт.

16

K304944

LOCK

CATCH - hood

1шт.

17

K304946

PLATE

- catch

1шт.

18

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

2шт.

19

K617080

NUT

- No. 10 UNF

2шт.

20

K626340

RING

WASHER - lock, 3/16 inch

2шт.

21

K205385

BUSHING

SPACER - cross member

2шт.

22

K651849

WASHER

- lock, M10

2шт.

23

100016

NUT,M10 x 1.5, Cl 8

2шт.

24

K304909

STRIP

SLIDER - nylon

2шт.

25

K305921

GUIDE

- support

1шт.

26

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- guide

2шт.

27

K38632

SPRING

CLIP - spring

2шт.

28

K305949

STRIP

- slider

2шт.

29

K657160

CLIP

- retaining, support rod

1шт.

30

K304588

STAY

ROD - support, 475 MM

1шт.

30

K304612

STAY

ROD - support, 275 MM

1шт.
