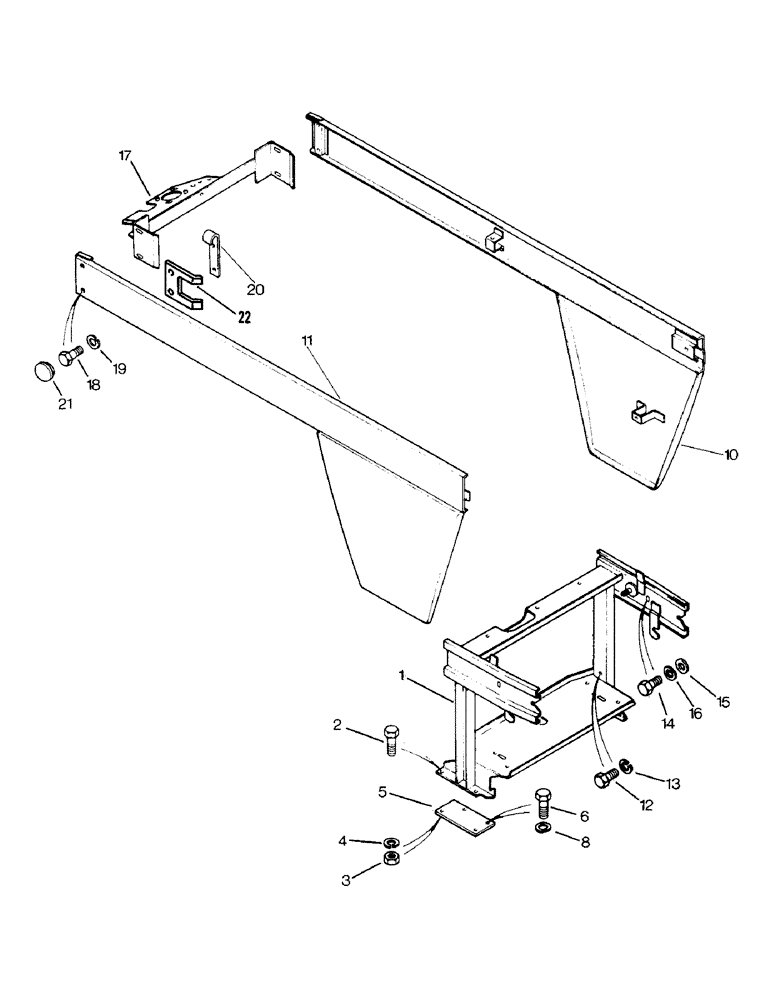

Запчасти Case IH 1290 (N-06) - ENGINE HOOD SUPPORT FRAME, 1290 P.I.N. 11054201 & AFTER, 1390 P.I.N. 11127048 & AFTER (08) - SHEET METAL

1

K304342

FRAME

- support, engine

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

280136

NUT,3/8"-16, G8

4шт.

4

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

5

K304311

PLATE

- cover support

2шт.

6

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

8

K19482

SPRING WASHER

WASHER - lock, 3/8 inch

4шт.

10

K304415

FRAME

- side, left-hand

1шт.

11

K304416

FRAME

- side, right-hand

1шт.

12

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT - M8 x 18 MM

2шт.

13

K651848

WASHER

- lock, 8 MM

2шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT - M8 x 18 MM

2шт.

15

K651778

WASHER

- 8 MM

2шт.

16

K651848

WASHER

- lock, 8 MM

2шт.

17

K304367

SUPPORT

- rear

1шт.

18

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

BOLT - M8 x 20 MM

4шт.

19

K651874

SPRING

WASHER - lock, 8 MM

4шт.

20

K307033

NUT

PLATE - support (Replaces K302503)

2шт.

21

K627992

PLUG

- plastic

4шт.

22

K307126

GUIDE

PLATE - guide

2шт.
